| Connection: | metal to metal |
|---|---|
| Brand Name: | Hikelok |
| Type: | Elbow |
| Technics: | Forged |
| Material: | Stainless Steel |
| Head Code: | Hexagon |
| Shape: | Equal |
| Model Number: | UE |
| Place of Origin: | China (Mainland) |
| Product name: | VCR Union Elbow |
| Size: | 1/8 |
| Body materials: | 316, 316L, 316L VAR stainless steel |
| Brand: | Hikelok |
| MOQ: | 1 piece |
| OEM: | Available |
Quick Details
Specifications
Features
* Metal- to- metal seal provides perfect leak- tight service from critical vacuum to high pressure
* Female threads are silver plated to prevent galling
* Two test port for easy leak testing
* Non- rotational female nut to prevent transmission of torque
* Smooth transition into the Internal Diameter minimizes entrapment areas
* Standard surface finish on glands and bodies is a roughness average of 10 μin. (0.25μm) Ra
* Sizes from 1/16 to 1 in.
* 316, 316L, and 316L VAR (Vacuum Arc Remelt) stainless steel materials are available

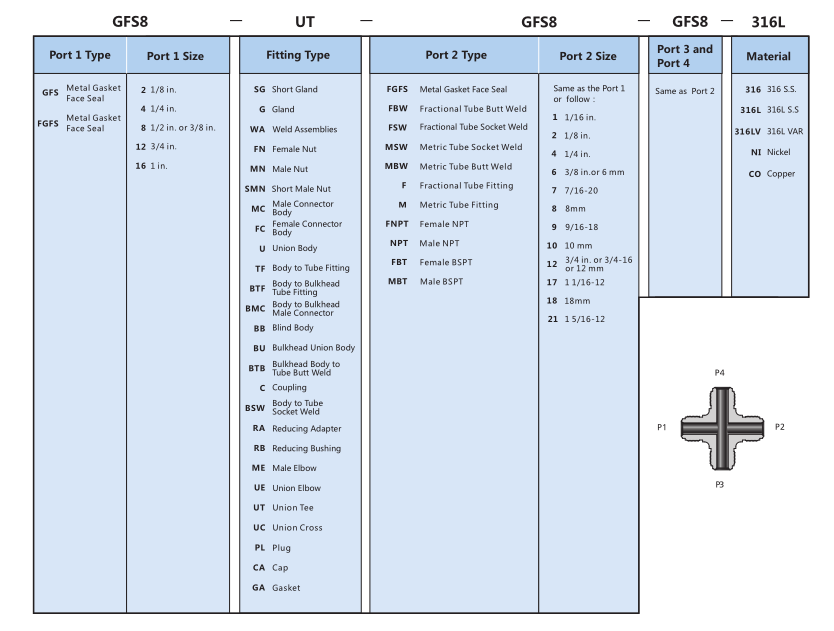

how to ORDER
