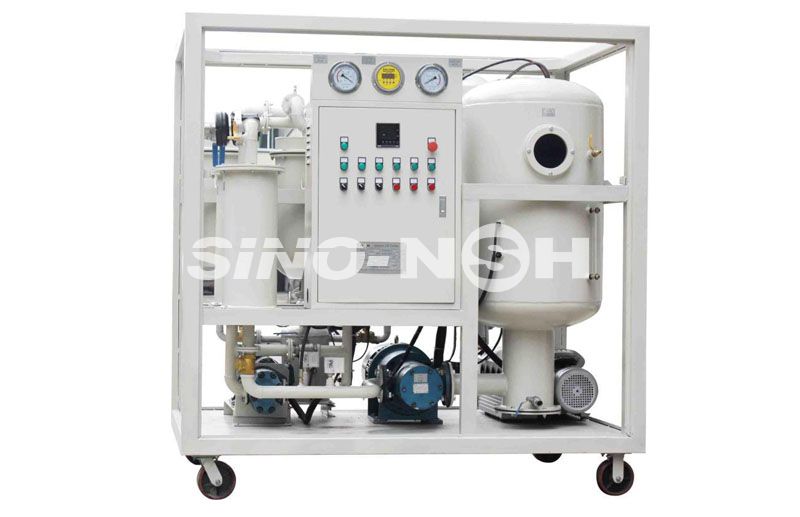

Sino-NSH-LV maintains an optimized structure and safe controls so as to meet comprehensive requirement of transformer manufacturers and service companies.

Sino-NSH-LV maintains:

-Hole user-friendly design

-Four main security and protecting system to ensure safe operation

-Adopting delamination gradual-close filtering technology

-Online working

-High efficiency, low noise

-Environmentally friendly design

-Low maintenance cost

Parameter		Value
		LV-10	LV-20	LV-30	LV-50	LV-100	LV-150	LV-200
Capacity,liters/hours		600	1200	1800	3000	6000	9000	12000
Heating Power,kW		15	18	30	45	90	120	180
Total Power,kW		17	21	35	50	96	126	186
Power supply		Fully customizable
Inlet Diameter,mm		20	20	20	25	40	50	65
Outlet Diameter,mm		20	20	20	25	40	50	65
Dimensions (without trailer)	Length,mm	1350	1500	1550	1900	2200	2400	2900
	Width,mm	1100	1200	1250	1400	1500	1600	1800
	Height,mm	1700	1750	1800	1800	1850	1900	2000
Weight(without trailer),kg		600	80	900	1150	1500	1700	2400
Processed Oil Spec	Water content,ppm	≤ 100
	Cleanliness(NAS 1638)	≤ 6
	Filtration fineness,um	≤ 5(or 1-5 as needed)
