After-sales Service Provided: | Engineers available to service machinery overseas |
---|---|
Certification: | ISO9001:2015 |
Weight: | 2000KG |
Brand Name: | SINO-NSH |
Condition: | New |
Quick Details
Specifications

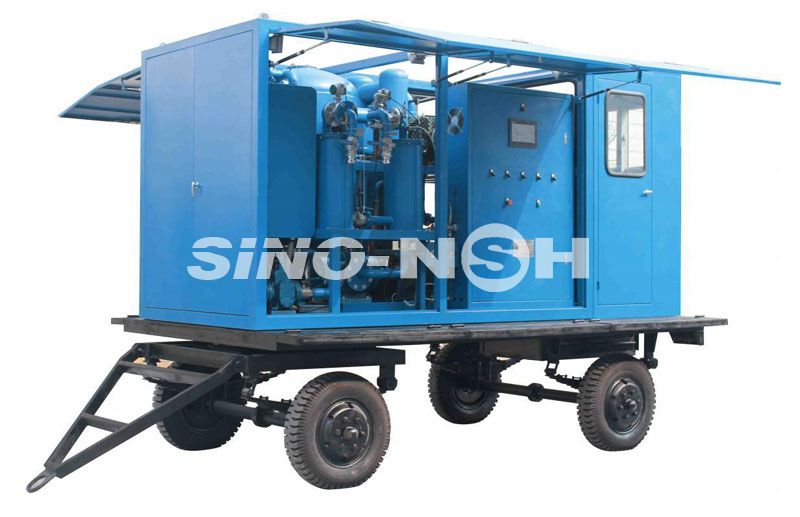

Sino-NSH-VFD combines vacuum flashing evaporation technology and delaminating gradual-close filter technology to reach best performance of oil purification. Meanwhile, by integrating efficient thermal and double-stage vacuum, the breakdown voltage is highly improved, which can be increased from 25kV to over 70kV.
Sino-NSH-VFD maintains an optimized structure and safe controls so as to meet comprehensive requirement of transformer manufacturers and service companies.
Four main security and protecting systems:
Liquid level auto-controlling system
Auto pressure protection system
Steady temperature auto-controlling system
Electrical auto-protection system to control electric phases,voltage and overload of pump
Parameter | Value | |||||||
VFD-30 | VFD-50 | VFD-75 | VFD-100 | VFD-150 | VFD-200 | VFD-300 | ||
Capacity,liters/hours | 1800 | 3000 | 4000 | 6000 | 9000 | 12000 | 18000 | |
Heating Power,kW | 24 | 30 | 48 | 60 | 90 | 120 | 150 | |
Total Power,kW | 29 | 36 | 56 | 69 | 100 | 132 | 170 | |
Power supply | Fully customizable | |||||||
Inlet Diameter,mm | 25 | 32 | 32 | 40 | 40 | 50 | 65 | |
Outlet Diameter,mm | 25 | 32 | 32 | 40 | 40 | 50 | 65 | |
Dimensions (without trailer) |
Length,mm | 1350 | 1500 | 1550 | 1900 | 2200 | 2400 | 2900 |
Width,mm | 1100 | 1200 | 1250 | 1400 | 1500 | 1600 | 1800 | |
Height,mm | 1700 | 1750 | 1800 | 1800 | 1850 | 1900 | 2000 | |
Weight(without trailer),kg | 600 | 800 | 900 | 1150 | 1500 | 1700 | 2400 | |
Processed Oil Spec | Water content,ppm | ≤ 5 | ||||||
Dielectric strength,kv | ≥75 | |||||||
Filtration fineness,um | ≤ 5(or 1-5 as needed) | |||||||
Gas content,% | ≤ 0.1 |
