Product Main

Quick Details

After-sales Service Provided: No overseas service provided
Automation: Automatic
Power: Cnc
Brand Name: Zhenfei
Condition: New
Certification: ISO 9001:2000
Material / Metal Processed: Aluminum
Raw Material:
Machine Type: Roller-Bending Machine
Model Number: LWC-95
Place of Origin: China (Mainland)

Specifications

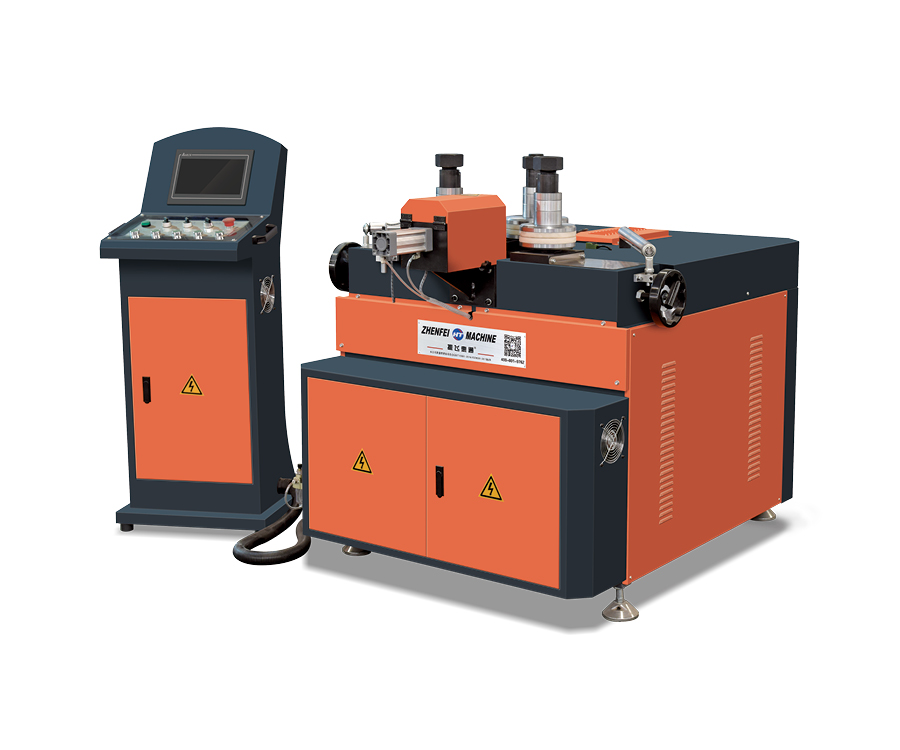

Aluminum Window and Door Profile Bending Machine1.Brief Introduction:



this machine is used for round bending of aluminumWindow anddoor profiles.




2.Techincal parameters:

Voltage

380V/50HZ

Power

3KW

Air Pressure

0.4-0.8MPa

BEndingRadius

Min.200mm

Profiles Width

Max.150mm

Roller Diameter

60mm

Fixed wheel center distance

350mm

Maximum stroke of top wheel

220mm

RollerSpeed

1-8r/min

Machine Size

1600*1500*1500mm



3.Performance features:

1. Use imported computer control system. 2. Dedicated arc bending software. 3. It can measure the rebound data of the material and eliminate the rebound. 4. It can bend C-shaped, U-shaped, elliptical, spring and other shapes. 5. the use of a numerical control hydraulic system, positioning accuracy of less than or equal to about 0.01mm. 6. Its product performance reaches European advanced CNC arc bending machine standards.
