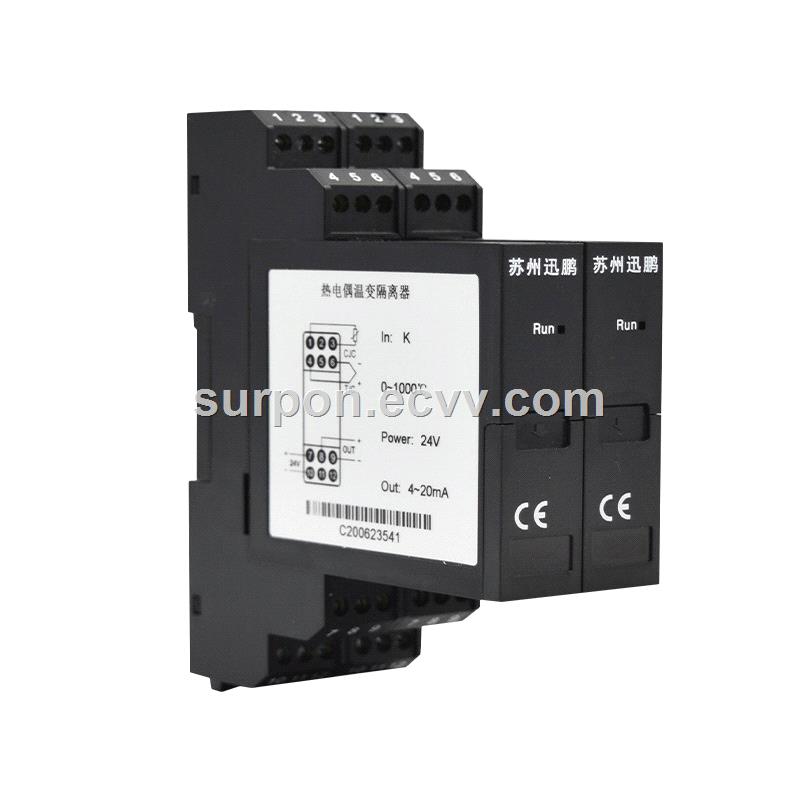

XP SeriesTHermocoupleISolatedTRansmitter

XP Series Thermocouple Isolated Transmitter (one input one output, one input two outputs) receives thermocouple Signal from the industrial field, isolates,and converts into a standard process signal that have a linear relationship with the temperature.It is widely used in data acquisition, signal transmission andConversion, PLC, DCS and other industrial measurement and control systems in the fields of machinery, electricity, telecommunications, petroleum, chemical industry, steel, sewage treatment, building construction, etc. It is used to perfect and supplement the function of the system I/O plug-in, improve the anti-interference ability of the automatic control system, and ensure the stability and reliability of the system.



Features
* Input, output and power are completely isolated, with strong anti-interference ability
* High accuracy, high linearity, long - term running stability
* Modular design, small size, low power consumption, suitable for intensive installation
* Plug-in construction, easy installation, disassembly and maintenance

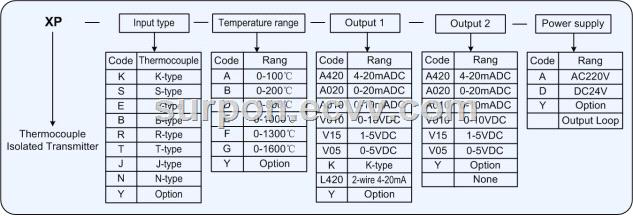

XPSEriesTHermocoupleISolatedTRansmitter code table:





Examples of ordering

Refer to the code table above and provide the model number correctly.

Example 1  input: K-type thermocouple, 0~800℃, output: one channel 4-20mA, power supply: 24VDC

           order model: XP-K-D-A420-D

Example 2  input: S-type thermocouple, 0~1300℃, output: two channels 4-20mA, power supply: 24VDC

           order model: XP-S-F-A420-A420-D(abbreviated as: XP-S-F-2A420-D)

Example 3  input: E-type thermocouple, 0~700℃, output: one channel 2-wire 4-20mA, power supply: output loop

           order model: XP-E-Y-L420(Y=0-700℃)
