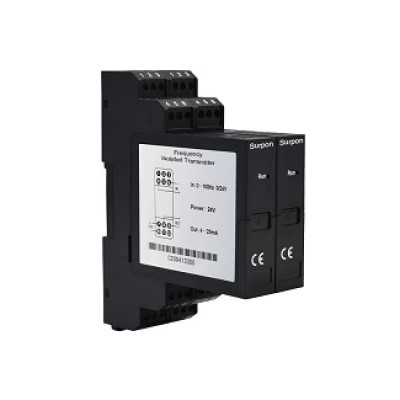

XP Series Frequency Isolated Transmitter (one input one output, one input two outputs) receives frequency signal from the industrial field, such as proximity switch, dry contact, voltage pulse , and converts intoA standard process signal that has a linear relationship with the frequency range. It is widely used in data acquisition, signal transmission andConversion, PLC, DCS and other industrial measurement and control systems in the fields of machinery, electricity, telecommunications, petroleum, chemical industry, steel, sewage treatment, building construction, etc. It is used to perfect and supplement the function of the system I/O plug-in, improve the anti-interference ability of the automatic control system, and ensure the stability and reliability of the system.

Features
* Input, output and power are completely isolated, with strong anti-interference ability
* High accuracy, high linearity, long - term running stability
* Modular design, small size, low power consumption, suitable for intensive installation
* Plug-in construction, easy installation, disassembly and maintenance

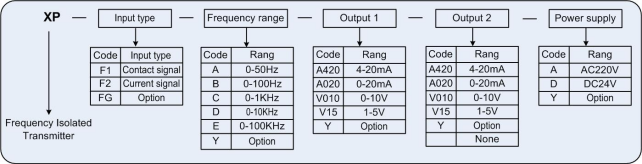

XPSEriesFrequency IsolatEd Transmitter code table:





Examples of ordering

Refer to the code table above and provide the model number correctly.

Example 1  input: one channel 0/24V voltage pulse, frequency range: 0~1KHz, output: one channel 4-20mA,

Power supply: 24VDC

           order model: XP-F2-C-A420-D

Example 2  input: one channel proximity switch, NAMUR signal, frequency range: 0~2000Hz, output: one channel 1~5V, power supply: 24VDC

           order model: XP-F1-Y-V15-D(Y=0~2000Hz)
