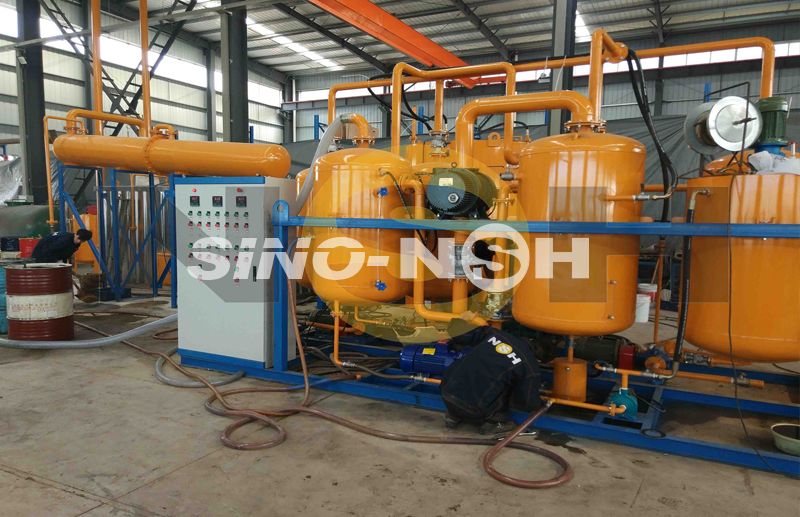

Sino-NSH-GER is regeneration system for waste engine oil including diesel engine oil, gasoline engine oil, as well as used hydraulic oil and some other machinery's lubrication oils.

Sino-NSH-GER is designed with the combination technology of physical and chemical processing, can effectively remove aging products and contaminants from used oil. Physical processing method can remove solid particles, water, gas etc. Chemical processing method allows removal of colloid, oxide, acid, pitch in the used oil. Specially, this system can restore the color of used oil and remove the scent rapidly.

Sino-NSH-GER is an environmentally friendly system, abandon traditional acid processing method, effectively solve the environmental pollution caused by the old technology of waste oil recycling. Various options are available for this system to improve the automation of operation.

Parameter		Value
		GER-1	GER-2	GER-3	GER-4	GER-5
Capacity,liters/8-10 hours		30	50	100	150	200
Heating Power,kW		0.74	0.8	1.95	2.42	2.58
Total Power,kW		1.5	1.5	2.2	3	3
Power supply		Fully customizable
Inlet/Outlet Diameter,mm		DN20	DN20	DN25	DN32	DN32
Weight,kg		40	40	40	40	40
Dimensions (without trailer)	Reaction System,mm	3500*1900*2100-5600*2100*2300
	Filtration System,mm	2*280014002000-2*320016002100
	Exhaust Gas Processing  Saystem,mm	950*2000*3300
Weight,kg		2500	3500	4500	5500	6000
Recovery Rate,%		70-90
