| After-sales Service Provided: | Overseas service center available |
|---|---|
| Condition: | New |
| Brand Name: | Qingdao Shuimu |
| Weight: | 29kg |
| color: | silver |
| Model Number: | No.5648454 |
| Place of Origin: | China (Mainland) |
| Product name: | MYD-40KW |
| Advantage: | Energy saving |
| Size: | 650x400x600mm |
| Voltage: | 3*380VAC |
| Keyword: | induction heating |
| Function 1: | pipeline preheat |
| Function 2: | Steel preheat |
| Suitable for: | industrial |
| Brand: | Qingdao shuimu |
| The control mode: | DSP control |
Quick Details
Specifications

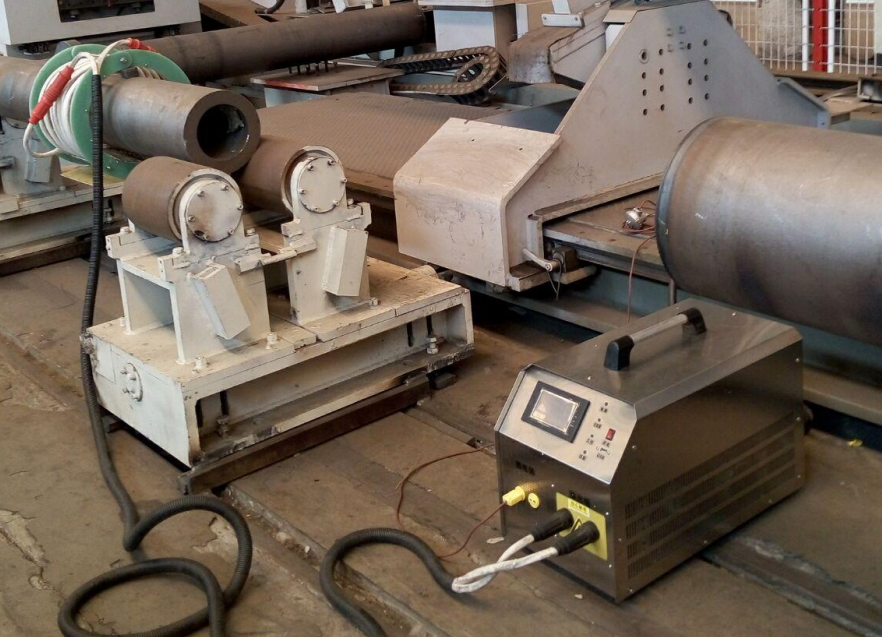

MYD-40kw induction heating Surfacing welding preheating post weld heat treatment series equipment
1.the composition of MYD - 40 kw
2.MYD-40kw of information
Model |
MYD-40KW |
Input Power |
3*380VAC (Default), 3*220VAC (Optional), 3*440VAC (Optional) |
Frequency |
2KHZ ~ 30KHZ |
Power |
40KW |
Current |
60A |
Cooling way |
Air Cooling |
Max |
900℃ 5-400℃/min |
Heating Speed |
5-400℃/min |
Heating size |
100-1200mm |
Size |
650*400*600mm |
the control mode |
DSP control |
Net weight |
29kg |

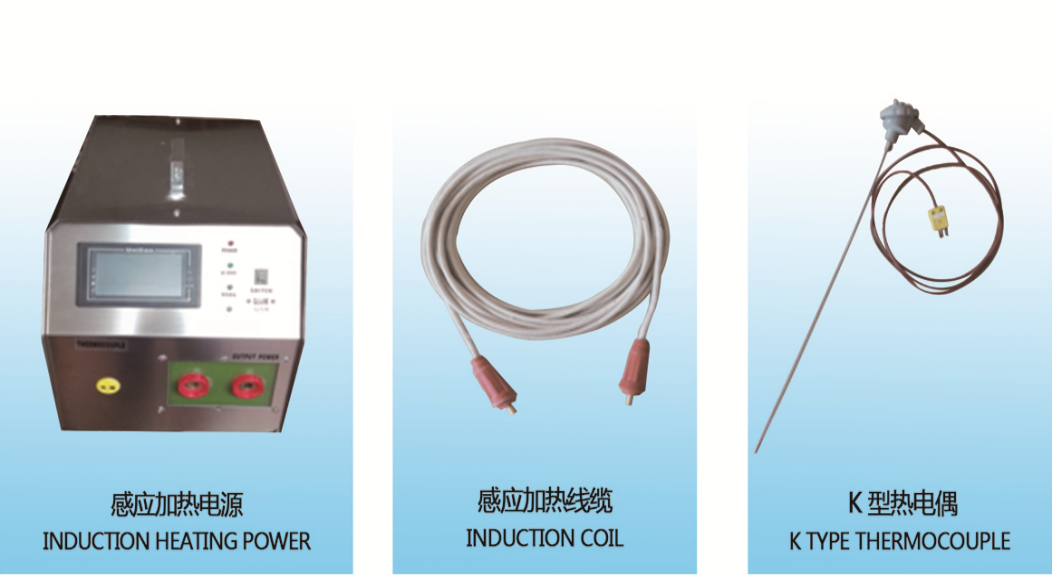

3.the Option Parts of Induction Heating System
L Induction HEating Power
L Induction Coil (Cable, C type, Clamp Coil)
L THermocouple K
L Extent CAble for Coil
L Extent Cable&COnnector for THermocouple
L Temperature Recorder
L Insulation Blanket
4.MYD series induction heating features
L Uniform heat
L Quick direct heat
L Energy Saving 30-80%
5.Advantages of MYD series induction heating
L Air cooled: WOrking well at -10℃-40℃
L Induction heating power: PLC+DSP control
L PLC touching screen: Intuitive to see and easy to Operate.
L Soft induction Cable Coil: Fitting for different Size work Piece.
L the Removable clamp iNduction coil: easy to operate and move.
L Temperature recorder: Recording the whole heating Process and printing.
