| Brand Name: | Huifan Security |
|---|---|
| Communication: | USB2.0 |
| Power Supply: | Partial model support |
| Capacity: | 20000 |
| Dimension: | 75* 52 * 18(mm)(L*W*H) |
| Model Number: | OS1000 |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

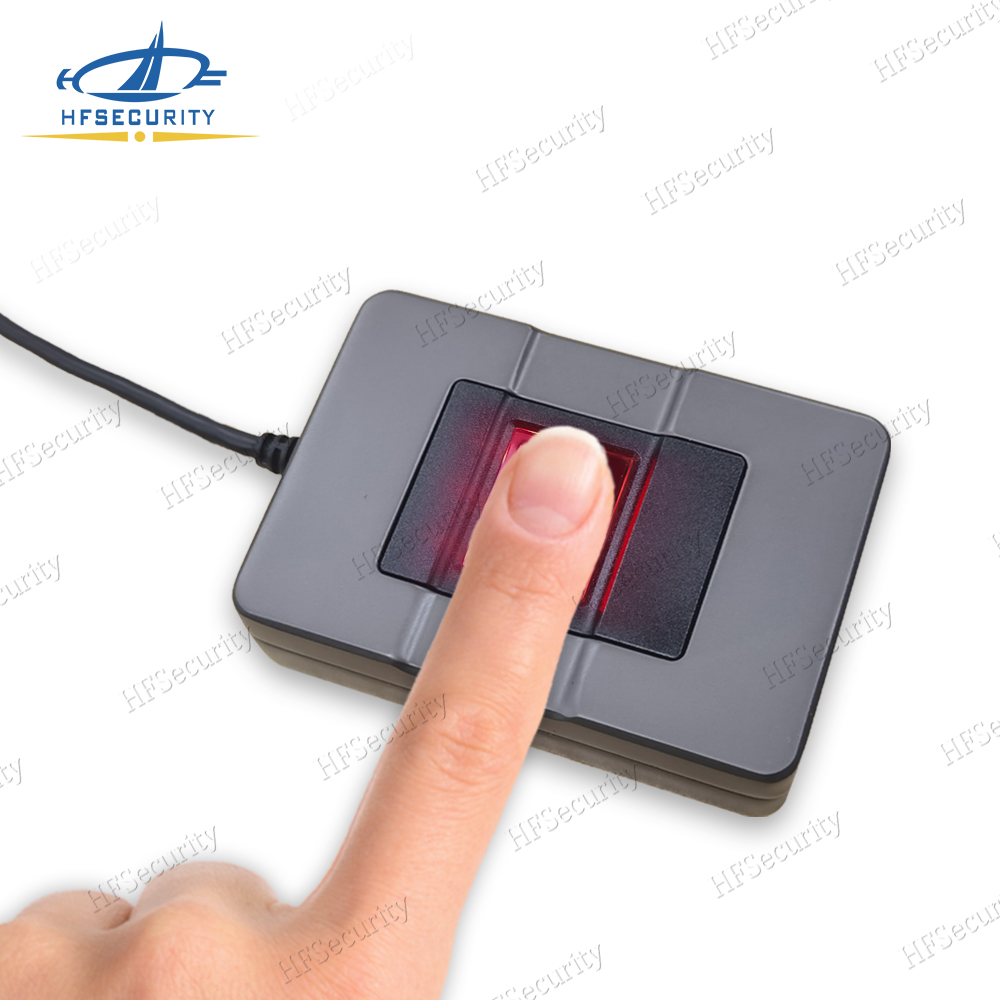

| Specification | OS1000, FAP20 FBI Fingerprint scanner |
Image resolution |
500dpi |
| CPU | 200MHz, ARM9 |
| Flash memory | 2MB |
| Image size | 300 x 400 pixel |
| Certification | CE, FCC, FBI |
Active platen area |
15.24mm x 20.32mm |
Maximum Acquisition time (Placement to Template) |
<3s |
Grey scale |
8 bit, 256 levels |
| Template size | 1024 bytes default ISO/ANSI standard |
Live finger detection |
Yes |
Platen Ingress Protection |
IP54 |
ESD immunity |
±8kV contact discharge, ±15kV air discharge |
Supply voltage |
DC 5V±5% |
Communication interface |
USB2.0 |
Operating Temperature |
-10°C to +45°C |
Storage Temperature |
-20°C to +50°C |
Operating humidity |
20%RH90%RH |
Weight |
150G |
Operating system environment |
Windows,Android, Linux |
| Product size | 75* 52 * 18(mm)(L*W*H) |
