| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Condition: | New |
| Brand Name: | fengyao |
| Weight: | 10000 |
| color: | customizd |
| Model Number: | FYWD-1200 |
| Place of Origin: | China (Mainland) |
| Wire mesh width (mm): | 1200 |
| Cleaning speed (m/min): | 0.5-4 |
| Blasting capacity (Kg/min): | 4x250 |
| Capacity: | 3.5t/h |
| Numble of wheel: | 4UNIT |
| Wheel capacity: | 15kw |
| Dimension of inlet opening(mm): | 1200*600 |
| Mesh belt maximum load bearing: | 100kg/m |
| Cleaning work pieces sizes: | 1000x 500m |
| Workpiece weight ranging: | from 1kg to 100kg |
Quick Details
Specifications
the following example is for you reference.
1.Brief Introduction:

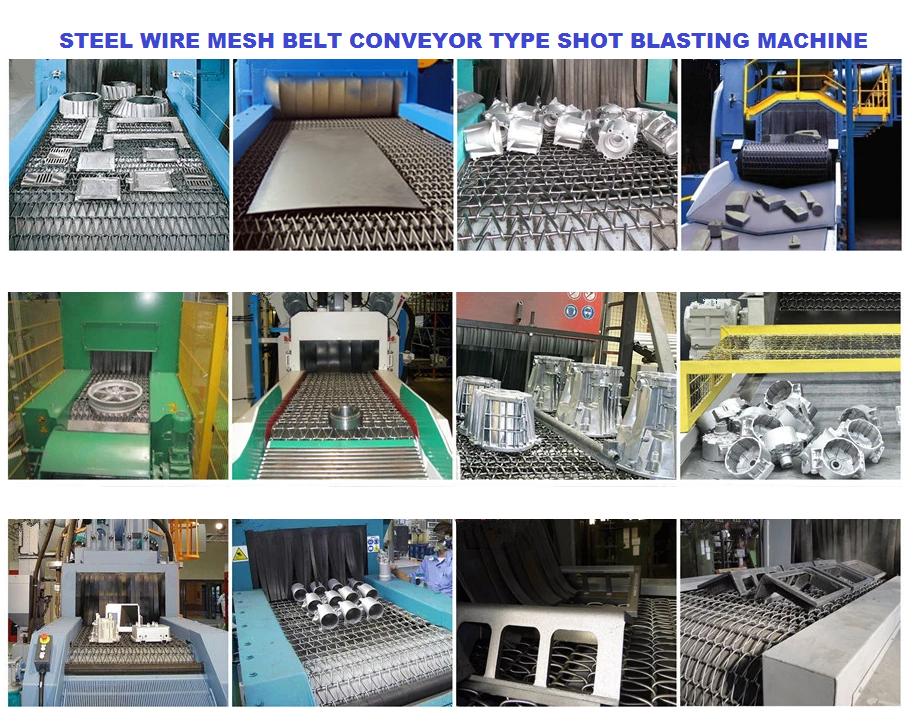

Metal Wire Mesh Belt Type Shot Blasting Machine is suitable for Aluminum die-castings and alloys (automotive, alimentary, furnishing, lighting, telecommunications, electric tools fields, etc.), Oxygen-flame cutting parts, Cast iron castings, Cast iron castings, Cast iron castings, Brass molded pieces.
2.Techincal parameters: Type WD600 WD800 WD1000 WD1200 Wire width(mm) 600 800 1000 1200 Cleaning speed 0.5-4 0.5-4 0.5-4 0.5-4 Blasting capacity 4*180 4*180 4*180 4*250
3.Performance features:
1.Good cOntinuity, high cleaning efficiency, small deformation and no pit. Available in Single or Used in production line .
PRODUCT APPLICATION:
2.MAinly used for Surface blasting Cleaning of Fragile thin- wall cast iron or cast aluminum, ceramics and other small parts. Also can be used for shot blasting and Strengthening of Mechanical parts.
