| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Condition: | Used |
| Brand Name: | GST |
| Weight: | 60 |
| color: | all |
Quick Details
Specifications
- Company profile
CHINA GOODSTABILITY TECHNOLOGY CO.,LTD.,Is a Profeesional engaged in automation equipment research and development, Manufacturing,sales and service in one enterprise.
since the company inception,that always with advanced technology , scientific management system, improvement of quality products and Services to our customers service for grow up and develop together.
Company have main products : Automatic crimp terminal soldering tin Machine, Automatic crimp copperbelt machine, New energy stripping wire Machine, Automatic cutting wire machine, Pipe cutting machine, Crimping Terminal machine, Stripping machine, Peeling machine, Terminal , Copperbelt, Nonstandard automation machine Etc.
Quick Details
Place of Origin:China
Brand Name:GST

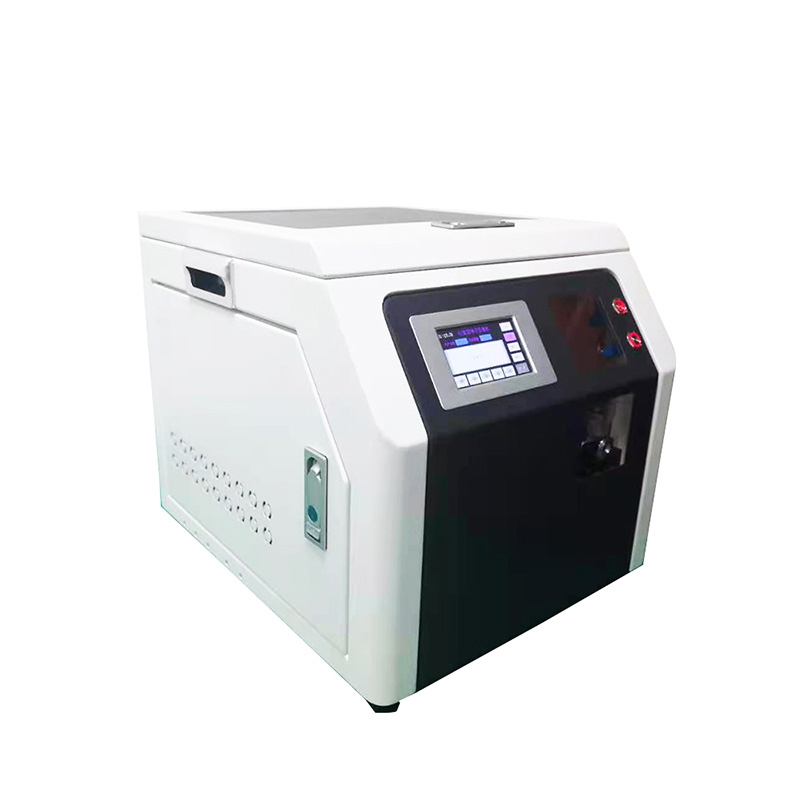

Model Number:RF-20GT
Usage:Crimping, Cutting, Stripping
Equipment Size:L450mm*W350MM*H425mm (front width)
Wire Size:0.5,0.75,1.0,1.5,2.5,4.0mm2
Air Source:0.5-0.8Mpa (please use clean and dry air source)
Stripping length:Max.17mm
Weight:about 68kg.
Production Capacity:2.5s /wire
Power supply:AC220V/50/60HZ 400W
Wire size:BVR wire 0.5,0.75,1.0,1.5,2.5,4.0mm2
Packaging & Delivery
Selling Units:Single item
Single package size: 45X35X43 cm
Single gross weight:68.000 kg
Package Type:wooden packing up
Lead Time:
Quantity(Sets) 1 - 1 >1 Est. Time(days) 7 to be negotiated
Features
>the closed design of the whole machine makes the operation safe and Reliable; >Touch screen operation, electric adjustment of stripping Depth and length, setting parameters are saved;.>Automatic terminal Supply, electronic four-side crimping (square), no need to replace Crimping die >Agile and automatic trigger, fast and convenient; >Semi-automatic operation, manual pay-off; >Automatic induction, Peeling, terminal threading, crimping terminal, automatic feeding.
Equipment Parameter
Use specifications 0.5mm2-2.5mm2 (terminal conduit length below 12mm), 4.0mm2
(the length of terminal conduit is less than 10mm)Detection device Terminal supply detection lack of material Drive mode Motor/imported ball screw Control method Touch screen and programmable controller, MOONS' drive Clamping device Motor driven, clamping force program control Crimping device Motor driven, program control of crimping force Storage capacity 100 kinds of cable crimping data Pneumatic device SMC solenoid valve, SMC cylinder
Packing & Delivery
Wooden packing box
Tube Terminal Crimping Machine will be packed with film first, this way machine will be protected from humidity
during long time sea
Transportation etc. and wood case packages to protect the machine from damages.
to better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient p
