After-sales Service Provided: | Overseas third-party support available |
---|---|
Warranty: | One year guarantee for key part |
Brand Name: | Vision |
Automatic Grade: | Automatic |
Condition: | New |
Certification: | CE Certificate |
Weight: | 2000KG |
Dimension(L*W*H): | 4500*1800*1900MM |
Power(W): | 12KW |
Model Number: | RD-330DB |
Place of Origin: | China (Mainland) |
Type: | Paper Cutting Machine |
Quick Details
Specifications
BrandDongguan Vision
Product originDongguan, China
Delivery time40 days
Supply capacity10 sets/month
1. No need to do any die cutting mould, largely save the die cutting cost and shorten the job delivery time.
2. Automatic label plotter die cutting registration between 2 die cutting units, no need to adjust the position of the plotter die cutting blades.
3. Can achieve perfect cutting shape with any angle, the same material does not need to adjust the pressure of the label plotter die cutting machine.
4. High Speed Plotter Cutting MachineEasy operation and short setup time, no requirement on the operator's machine skills.
1. Machine Parameters:
Model |
RD-330DA |
Applicable file format |
AI/DXF/PDF |
MAx web width |
350mm |
Max repeat length |
700mm |
Digital blades |
6 blades |
Min/Max gap of blades |
65mm/165mm |
Min/Max gap of blades |
65mm/260mm |
Die cutting speed |
0-25 m/min(depends on label shape and size) |
Max uNwind roll diameter |
600mm |
Max reWind roll diameter |
600mm |
Tool set |
1 set |
Voltage/Current |
3PH+N+PE 380V, 40A |
Gross power |
16KW |
Weight |
3000KG |
DImension (L*W*H ) |
4500mm*1800mm*1900mm |
2. Machine Features:
1). the unwindingUnit has built-in independent powdEr to control the tension, keeping the Plotter Die Cutting Machine's feedingStable and controllable.
2). Adoptedthe domestic top high-precisionWeb-guide system(Accuracy is up to ±0.1MM) to keep Paper's moving always at the right position.
3). High performance andHigh precision imported linear motor, can keephighDie cuttingAccuracy, sTable speed and quiet movement.
4). Equipped withPanasonic servo motor for the label plotter die cutting machine's bladeLifting, and the imported high-precision ball screw runs smoothly without vibration,Ensure the continuous machine working with Excellent stability.

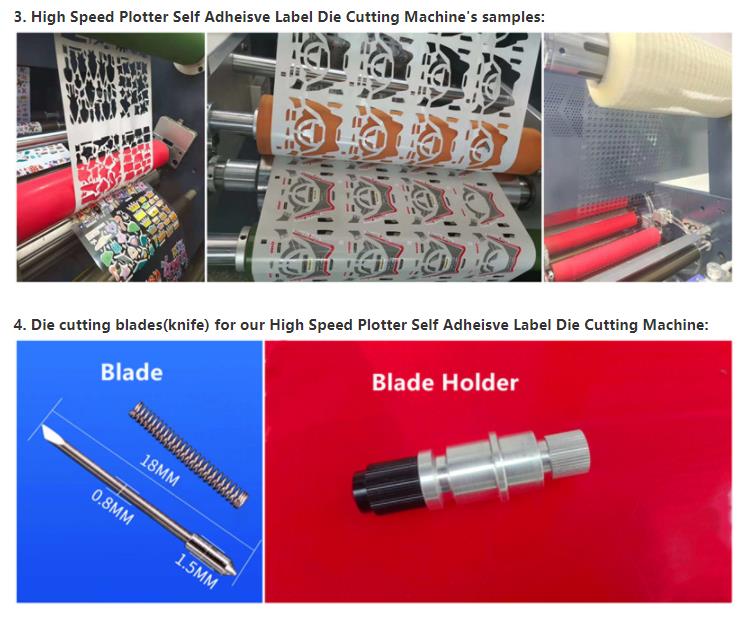

5). with hIgh-qualityImported bladeHolder and die cutting blades,Ensure the die cutting plotter machine's stable and lasting die-cutting pressure.
6). with strong and flexibleMaterial storage, can meetupto 700mm plotter die-cutting length.
7). Two sets of press rollers areInstalled Before and afterthe die-cuttingunit,Keeping the materialTension stableandnot wrinkled.
8). High speed, Plotter Die Cutting Machine's sheeting unit adopts full servo control, canDo sheeting at any lengtH, with sheeting collector or conveyor table.
