| After-sales Service Provided: | Overseas third-party support available |
|---|---|
| Warranty: | One year guarantee for key part |
| Brand Name: | Vision |
| Automatic Grade: | Semi-Automatic |
| Condition: | New |
| Certification: | CE Certificate |
| Weight: | 3500KG |
| Dimension(L*W*H): | 3000*1300*1700MM |
| Power(W): | 20KW |
| Model Number: | RFD420 |
| Place of Origin: | China (Mainland) |
| Type: | Paper Cutting Machine |
Quick Details
Specifications
BrandVision Intelligent
Product originDongguan China
Delivery time15-20 days
Supply capacity20 sets/month
Function features:
1. All sero motor control
2. Print, cold foil, varnish and laminate
3. UV dryer and hot air optional
4. Full rotary and semi-rotary exchange
5. Shear knife and razor knife slitting, optional back score
6. Servo control rewind shaft, bidirectional running
7. Online diagnosis and remote function
8. in line with digital printing system(HP, Xeikon etc.)
9. Optional IML function

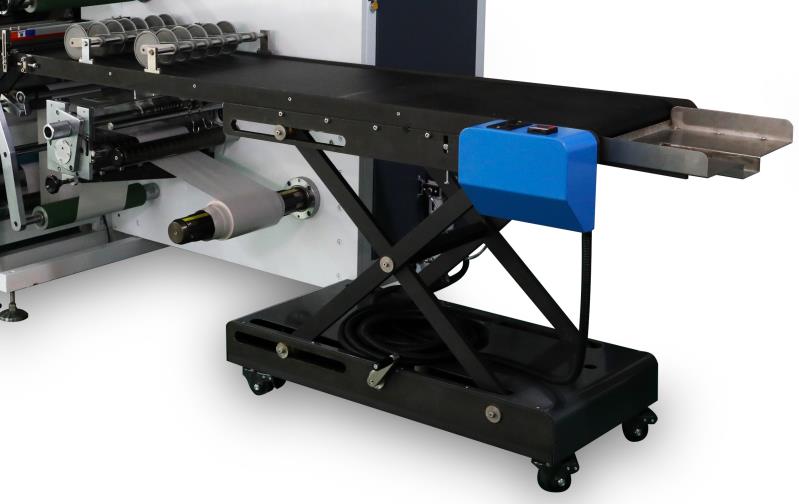

10. Optional conveyor sheeting
Hightlights:
1. Optional printing, cold foil, varnishing and lamination can be chosen.
2. Multifunctional electronic label flatbed die cutting converting machine has low noise less vibration with compact design so that it can be placed on the 2nd floor or higher without making too much noise and vibration.
3. Intelligent electronic label flatbed die cutting machine has online diagnosis and remote and IML (optional) function.
Specification:
| # | Name | RDF420 |
| 1 | Roll width | 440mm |
| 2 | Web width | 420mm |
| 3 | Unwind DIA | Max 800mm |
| 4 | Rewind DIA | Max 600mm |
| 5 | Max die-cutting speed(rotary) | 0~120m/min |
| 6 | Max die-cutting speed(semi-rotary) | 0~60m/min |
| 7 | Accuracy of die cutting | ±0.15mm |
| 8 | Max die cutting repeat length | 457mm |
| 9 | Optional magnetic cylinder | 60T~192T |
| 10 | Standard magnetic cylinder | Standard 152T |
| 11 |
Total power | about 20KW |
| 12 | Dimension | 3000*1300*1700 mm |
| 13 | Weight | 3200KG |
Performance features:
1. Electronic webguide with ultrasonic web sensor

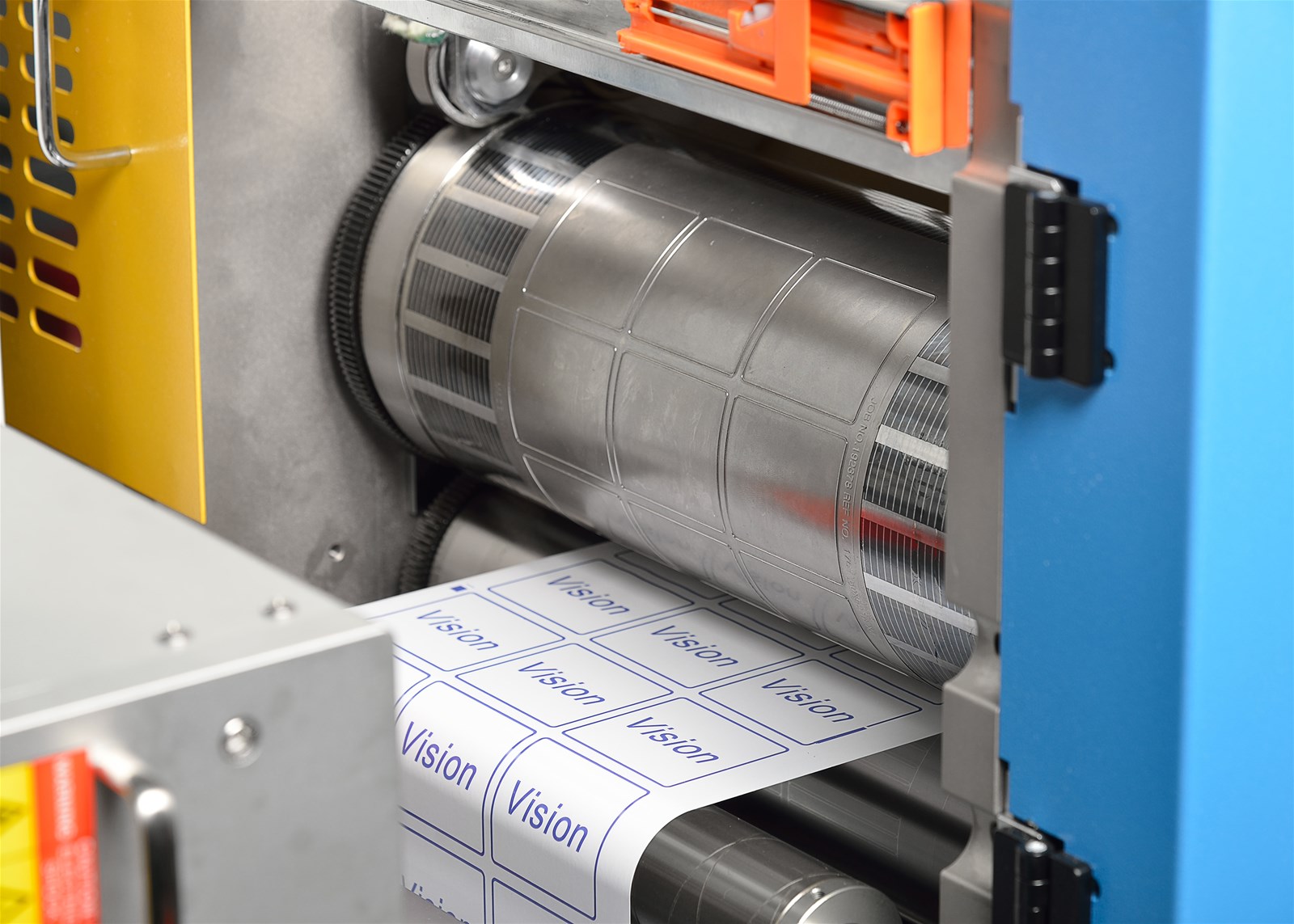

2. Die cutting unit
3. Opitinal on Inkjet and IML Function:
