| Application: | Refrigeration Parts |
|---|---|
| Type: | Refrigeration Compressor |
| Brand Name: | RIGID |
| Voltage: | 12V |
| Model Number: | QX1901VDL |
| Place of Origin: | China (Mainland) |
| Voltage: | 12V |
| Capacity: | 110-360W |
| Refrigerant: | R134A |
| Weight: | 720g (1.6lbs) |
| Size: | 5.6 x 7.8 cm (2.3 x 3.07 inch) |

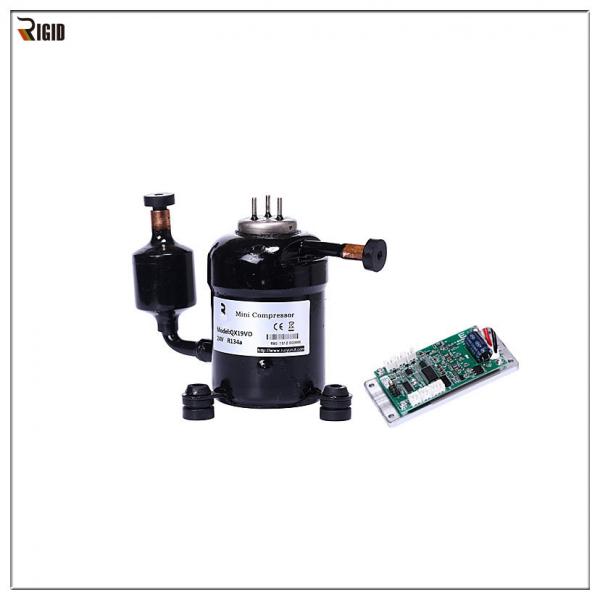

| Product Name: | Miniature Variable Speed DC Compressor |
Quick Details
Specifications
Mini Compressor
Capacity: 110-360W
Refrigerant: R134A
Weight: 720g (1.6lbs)
Size: 5.6 x 7.8 cm (2.3 x 3.07 inch)
Applications:
- Liquid Water Cooling
- Liquid Chiller Module
- Small Air Conditioning
- Laser, medical, semiconductor & military applications
- Miniature & Mobile Refrigeration / Small Cooling systems
| Technical Data | |
| Compressor Model | QX1901VDL |
| Refrigerant | R-134a |
| Cooling Capacity | 100W~500W Adjustable |
| Compressor | Brushless Inverter Compressor |
| Coolant Temperature | 0°C to 50°C (32°F to 122°F) |
| Maximum Power Draw | 500 Watts |
| Voltage | 12V DC |
| Motor Type | Variable Speed Motor |
| Noise | <40 dBA |
| Net Weight | 1.6 lbs / 0.72kgs |
| Dimensions ( L x W x H ) | 57 x 78 mm ( 2.2 x 3.07 in ) |
| Orientation | Must operate within 30° of flat |
| Operating Ambient Temperature | 0°C to 50°C (32°F to 122°F) |
| Applications | Cooling and Refrigeration |
