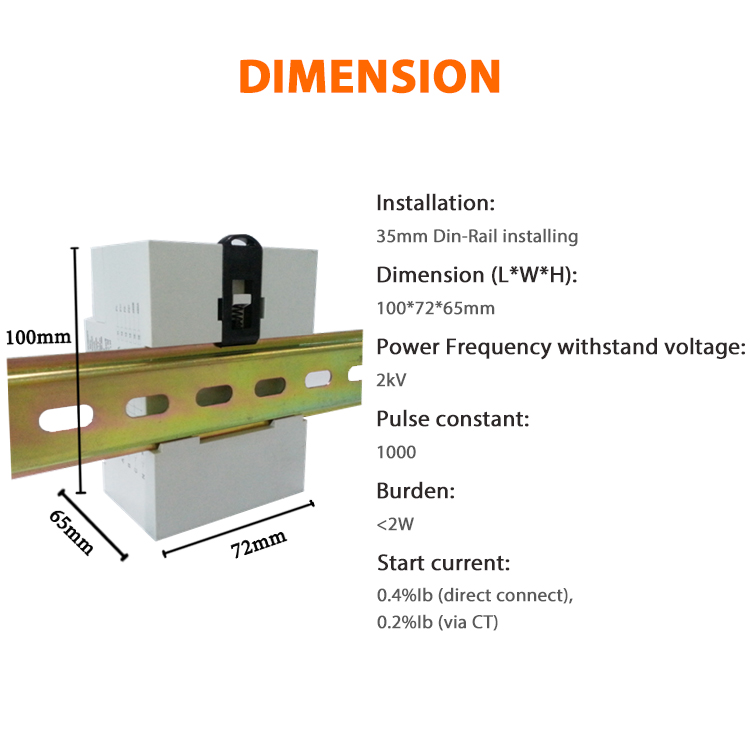

| Dimensions: | 72*100*65mm |
|---|---|
| Accuracy Class: | Class 1.0 |
| Phase: | Three Phase |
| Display Type: | Digital Only |
| Brand Name: | DFUN |
| Output Voltage: | 110V, 120V, 220V, 230V, 240V AC |
| Rated voltage: | AC 220V or 120V |

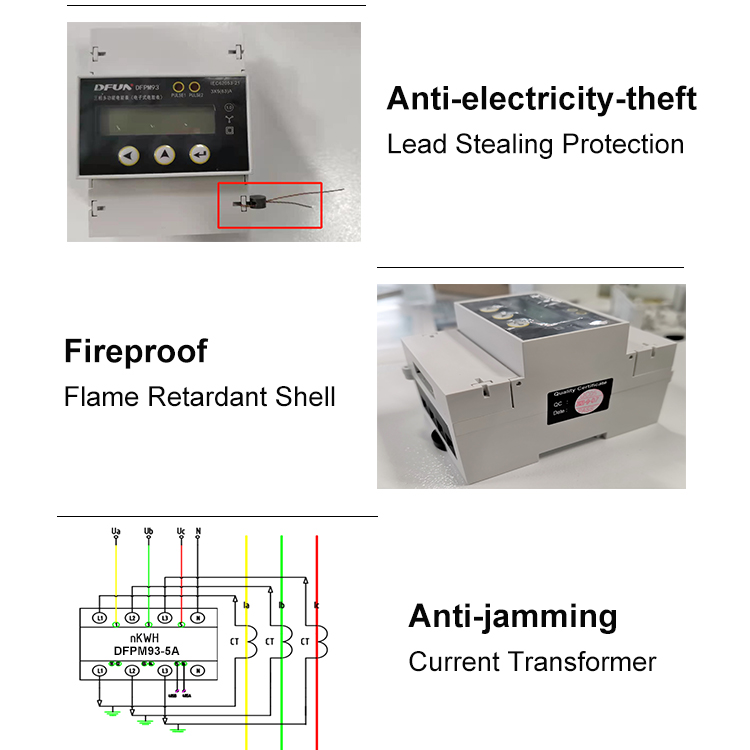

| Rated(Max.)current: | Direct: 5(63)A or 5(6)A via CT |
| Communication: | RS485 port, MODBUS-RTU / DL/T645 |
| Frequency: | 50Hz/ 60Hz (Optional) |

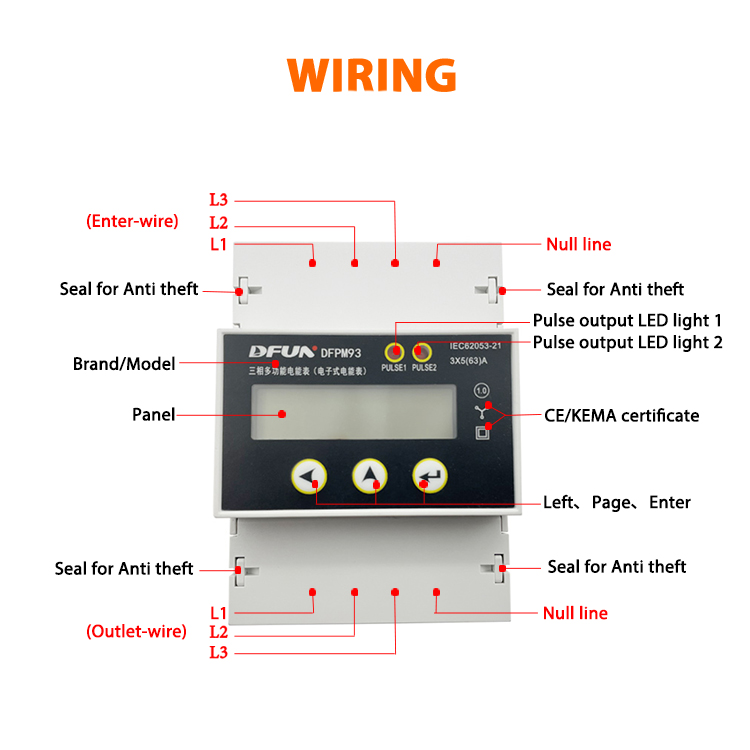

| Connection mode: | 3P 4W |
| Power Consumption: | <2W |
| Baud Rate: | 2400, 4800, 9600bps (Default) |
| Pulse output: | 2 channels (Settable for kWh or kvarh) |
| Historical Record: | Latest 10 Years |
Quick Details
Specifications
DFUN DFPM93 RS485 AC DIN Rail Three Phase Power Monitoring Meter with Multi tariff Energy Meter
Suit for 110V, 120V, 220V, 230V, 240V AC low voltage system
7 +1 digits LCD display (999999.9 kWh)

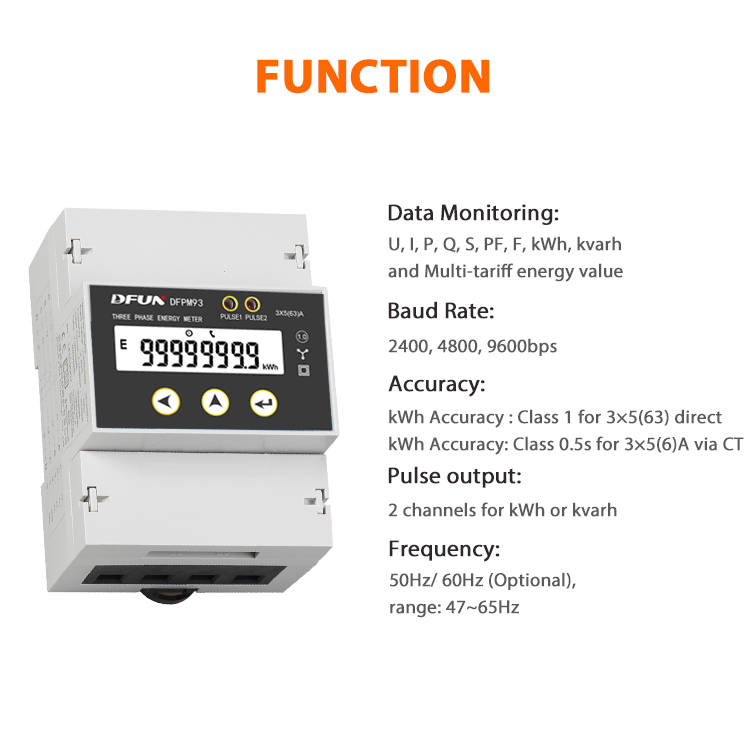

Measure U, l, P, Q, s, PF, F, kWh, kvarh, Multi-tariff energy value
Record freeze energy for per 15 min/day
KWh accuracy: 5(6)A class 0.5s, 5(63)A class 1.0
Support over-voltage timing,under-voltage timing, over-load timing
2 LED indicate pulse (Settable for kWh or kvarh)
LCD display prompt for phase sequence error
3 keys for programming, 35mm DIN rail installing, standard DIN ED5002
One RS485 port, MODBUS or DL/T645 protocol (selectable)
Record historical energy for latest 31 days, latest 12 months
Suit for 110V, 120V, 220V, 230V, 240V AC low voltage system
7 +1 digits LCD display (999999.9 kWh)
Measure U, l, P, Q, s, PF, F, kWh, kvarh, Multi-tariff energy value
Record freeze energy for per 15 min/day
KWh accuracy: 5(6)A class 0.5s, 5(63)A class 1.0
Support over-voltage timing,under-voltage timing, over-load timing
2 LED indicate pulse (Settable for kWh or kvarh)
LCD display prompt for phase sequence error
3 keys for programming, 35mm DIN rail installing, standard DIN ED5002
One RS485 port, MODBUS or DL/T645 protocol (selectable)
Record historical energy for latest 31 days, latest 12 months
