| Output: | UART_TTL |
|---|---|
| Theory: | Laser Scattering |
| Usage: | Gas Sensor |
| Brand Name: | Cubic |
| material: | metal |
| Model Number: | AM1002 |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications
Introduction

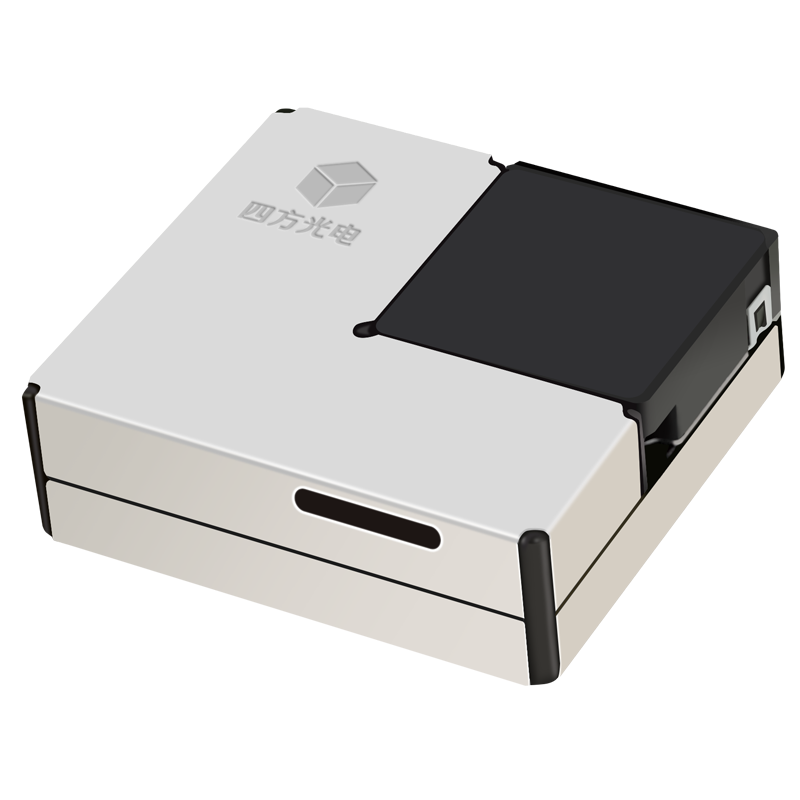

AM1002 integrated air quality sensor module real-time output PM1.0+PM2.5+PM10+VOC+RH&T with small size.Particle concentration is based on laser scattering technology,real-time output PM1.0, PM2.5, PM10 in μg/m3 via mathematical algorithm and scientific calibration.VOC sensor is MOX type which has high sensitivity.
Features
1.4 in 1 sensor module which integrated particle, VOC and RH&T.
2.Real time PM1.0 PM2.5 and PM10 output simultaneously.
3.High accuracy, high sensitive and quick response.
4.Temperature compensation algorithm.
5.Matrix calibration technology and optimized algorithm, for high accuracy and consistency.
6.Long lifespan and high stability.
7.Small size, compact structure, easy to install.
Applications
1.Air Purifier
2.Fresh Air System
3.Fresh Air System Controller
4.Air Quality Monitor
Specification
1.Air Purifier
2.Fresh Air System
3.Fresh Air System Controller
4.Air Quality Monitor
Specification
| Measurement range |
Particle: 0~5000μg/m3 VOC: 0~10ppm Temperature: -20℃~70℃ Humidity: 0~99%RH |
| PM accuracy |
PM1.0/PM2.5: 0~100μg/m3: ±10μg/m3, 101~500μg/m3: ±10% of reading PM10: 0~100μg/m3: ±25μg/m3,101~500μg/m3: ±25% of reading (GRIMM, 25±2℃, 50 ±10%RH) |
| VOC consistency |
Typical/Max: 200ppb/250ppb or 20%/25%, whichever is larger |
| Temperature accuracy |
0°C ~ 40°C: ±1°C |
| Humidity accuracy |
Typical/Max: ±5%/±8% @5%-95%RH |
| Working condition |
-20℃~60℃, 0~95%RH(non-condensing) |
| Storage condition |
-40°C ~ 80°C, 0-95%RH (non-condensing) |
| Power supply |
DC 5V±0.1V; ripple wave 50mV |
| Working current |
<100mA |
| Signal output |
UART_TTL |
| Dimension |
W38*H35*D12 (mm) |
| Measurement range |
PM: 0~5000μg/m3; VOC: 0~10ppm |
| Temperature |
-20℃~70℃ |
| RH |
0%~99%RH |
| PM accuracy |
PM1.0/PM2.5: 0~100μg/m3: ±10μg/m3; 101~500μg/m3: ±10% of reading PM10: 0~100μg/m3: ±25μg/m3; 101-500ug/m3: ±25% of reading 25℃±2℃, 50±10%RH, GRIMM, Cigarette+Arizona A1) |
| VOC consistency |
Typical/Max: 20%/25% |
| Temperature accuracy |
0°C ~ 40°C: ±1°C |
| Humidity accuracy |
5%-95%RH: ±5%RH |
| Working condition |
-20℃~60℃, 0~95%RH(non-condensing) |
| Storage condition |
-40-80℃, 0~95% RH(non-condensing) |
| Power supply |
DC 5V±0.1V; ripple wave 50mV |
| Working current |
<100mA |
| Signal output |
UART_TTL |
| Dimension |
W38*H35*D12 (mm) |
