| Output: | UART_TTL |
|---|---|
| Theory: | Laser Scattering |
| Usage: | Gas Sensor |
| Brand Name: | Cubic |
| material: | metal |
| Model Number: | AM1009 |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications
Introduction

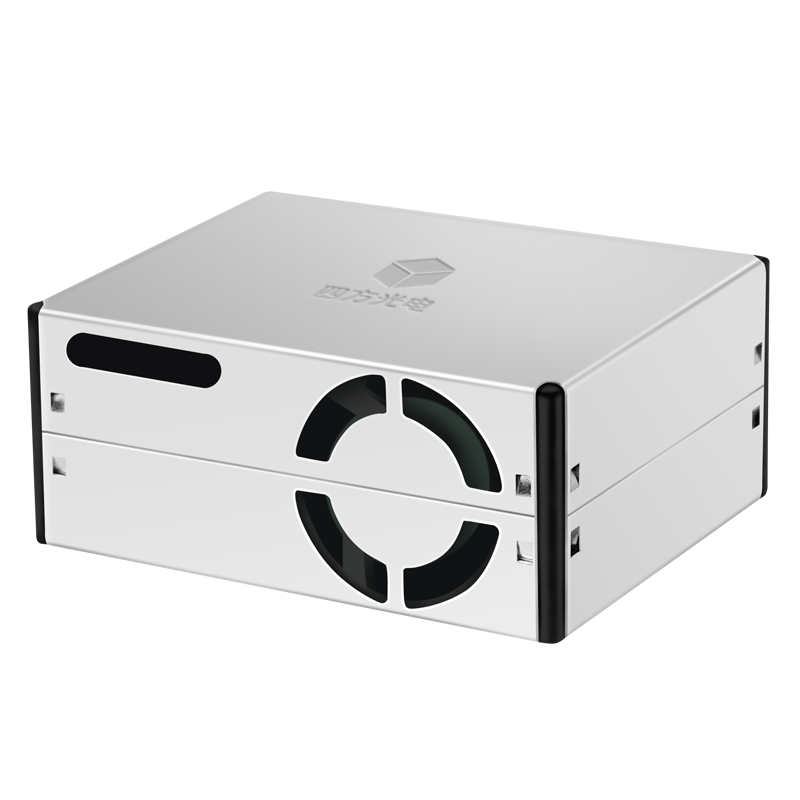

AM1009 integrated air quality sensor module real-time output PM1.0+PM2.5+PM10+VOC+NO2+RH&T.Particle concentration is based on laser scattering technology,real-time output PM1.0, PM2.5, PM10 in μg/m3 via mathematical algorithm and scientific calibration.VOC and NO2 concentration are measured by combined MOX sensor which can detect VOC and NO2 simultaneously.
Features
1.5 in 1 sensor module which integrated particle, VOC NO2 and RH&T.
2.Real time PM1.0 PM2.5 and PM10 output simultaneously.
3.High accuracy, high sensitive and quick response.
4.Temperature compensation algorithm.
5.Matrix calibration technology and optimized algorithm, for high accuracy and consistency.
6.Long lifespan and high stability.
Applications
1.Air Purifier
2.Fresh Air System
3.Fresh Air System Controller
4.Air Quality Monitor
Specification
1.Air Purifier
2.Fresh Air System
3.Fresh Air System Controller
4.Air Quality Monitor
Specification
| Measurement range |
PM: 0~5000μg/m3; VOC: 0~10ppm; NO2: 0-1000ppb |
| Temperature |
-20℃~70℃ |
| RH |
0%~95%RH |
| PM accuracy |
PM1.0/PM2.5: 0~100μg/m3: ±10μg/m3; 100~500μg/m3: ±10% of reading PM10: 0~100μg/m3: ±20μg/m3; >100μg/m3: ±20% of reading 25℃±2℃, 50±10%RH, GRIMM, Cigarette+Arizona A1) |
| VOC accuracy |
160ppb or ±40% of reading, whichever is larger (25±2℃, 50 ±10%RH) |
| NO2 accuracy |
40ppb or ±40% of reading, whichever is larger (25±2℃, 50 ±10%RH) |
| Temperature accuracy |
0°C ~ 50°C: ±1°C |
| Humidity accuracy |
5%-95%RH: ±5%RH |
| Working condition |
-10℃~50℃, 0~95%RH(non-condensing) |
| Storage condition |
-30℃~70℃, 0~95% RH(non-condensing) |
| Power supply |
DC 5V±0.1V; ripple wave 50mV |
| Working current |
<105mA |
| Signal output |
UART_TTL |
| Dimension |
W50*H38*D21 (mm) |
| Measurement range |
PM: 0~5000μg/m3; VOC: 0~10ppm; NO2: 0-1000ppb |
| Temperature |
-20℃~70℃ |
| RH |
0%~95%RH |
| PM accuracy |
PM1.0/PM2.5: 0~100μg/m3: ±10μg/m3; 100~500μg/m3: ±10% of reading PM10: 0~100μg/m3: ±20μg/m3; >100μg/m3: ±20% of reading 25℃±2℃, 50±10%RH, GRIMM, Cigarette+Arizona A1) |
| VOC accuracy |
160ppb or ±40% of reading, whichever is larger (25±2℃, 50 ±10%RH) |
| NO2 accuracy |
40ppb or ±40% of reading, whichever is larger (25±2℃, 50 ±10%RH) |
| Temperature accuracy |
0°C ~ 50°C: ±1°C |
| Humidity accuracy |
5%-95%RH: ±5%RH |
| Working condition |
-10℃~50℃, 0~95%RH(non-condensing) |
| Storage condition |
-30℃~70℃, 0~95% RH(non-condensing) |
| Power supply |
DC 5V±0.1V; ripple wave 50mV |
| Working current |
<105mA |
| Signal output |
UART_TTL |
| Dimension |
W50*H38*D21 (mm) |
