| Output: | UART_TTL/IIC, 3.3V (5V compatible) |
|---|---|
| Theory: | Laser Scattering |
| Usage: | Gas Sensor |
| Brand Name: | Cubic |
| material: | metal |
| Model Number: | PM2016 |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications
Introduction

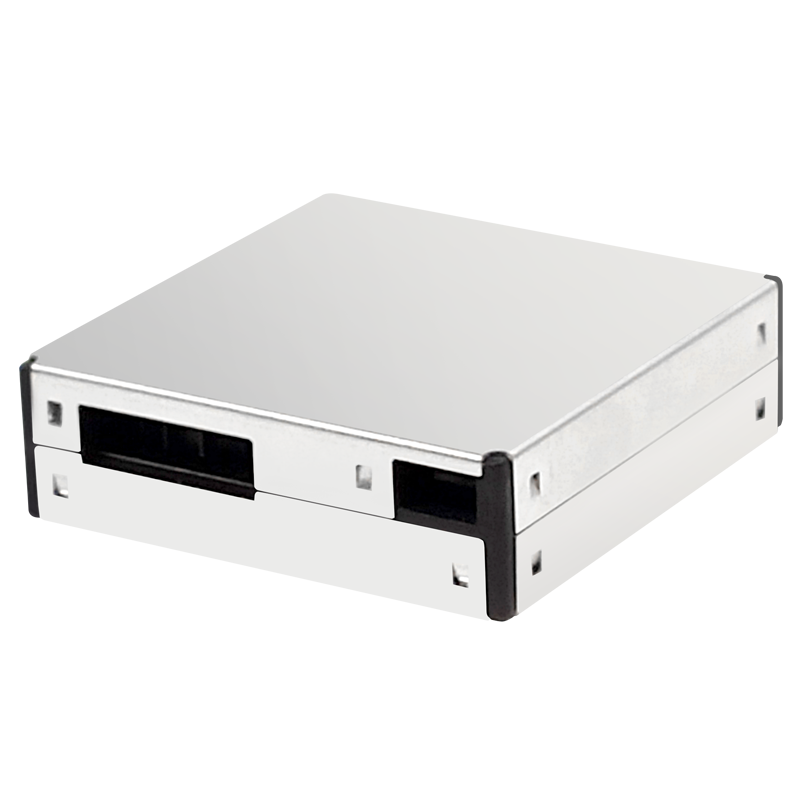

PM2016 is an anti-dust structure laser particle sensor with PM1.0, PM2.5, PM10 output. It measures and calculates the suspending particle number which is within unit volume on the air exactly and output particle mass concentration μg/m3 directly via mathematical algorithm and scientific calibration.
Features
1.the smallest size of available measurement: 0.3μm.
2.Real-time output particle mass concentration in μg/m3 is available.
3.VOC, temperature and humidity measuring function is reserved.
4.High accuracy, high sensitive and quick response.
5.Small size, compact structure, easy to install.
6.Same side air inlet and outlet.
7.Anti-dust structure.
Applications
1.Air Purifier
2.Fresh Air System
3.Fresh Air System Controller
4.Air Quality Monitor
Specification
1.Air Purifier
2.Fresh Air System
3.Fresh Air System Controller
4.Air Quality Monitor
Specification
| Measured particle range |
0.3μm~10μm |
| Measurement range |
0~1,000μg/m3 |
| Accuracy |
PM1.0/PM2.5: 0~100μg/m3: ±10μg/m3, 101~500μg/m3: ±10% of reading PM10: 0~100μg/m3: ±25μg/m3,101~500μg/m3: ±25% of reading (GRIMM, 25±2℃, 50 ±10%RH) |
| Time to first reading |
≤ 8 seconds |
| Response time |
1s |
| Working condition |
-10°C ~ 60°C, 0-95%RH |
| Storage condition |
-40°C ~ 70°C, 0-95%RH (non-condensing) |
| Power supply |
DC 5V±0.1V, ripple wave100mV |
| Working current |
≤80mA |
| Signal output |
UART_TTL/IIC, 3.3V (5V compatible) |
| Dimensions |
W40.7*H40.7*D12.2 mm |
