| Output: | UART_TTL, I2C, PWM(customized) |
|---|---|
| Theory: | Laser Scattering |
| Usage: | Gas Sensor |
| Brand Name: | Cubic |
| material: | metal |
| Model Number: | PM2008-API |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications
Introduction

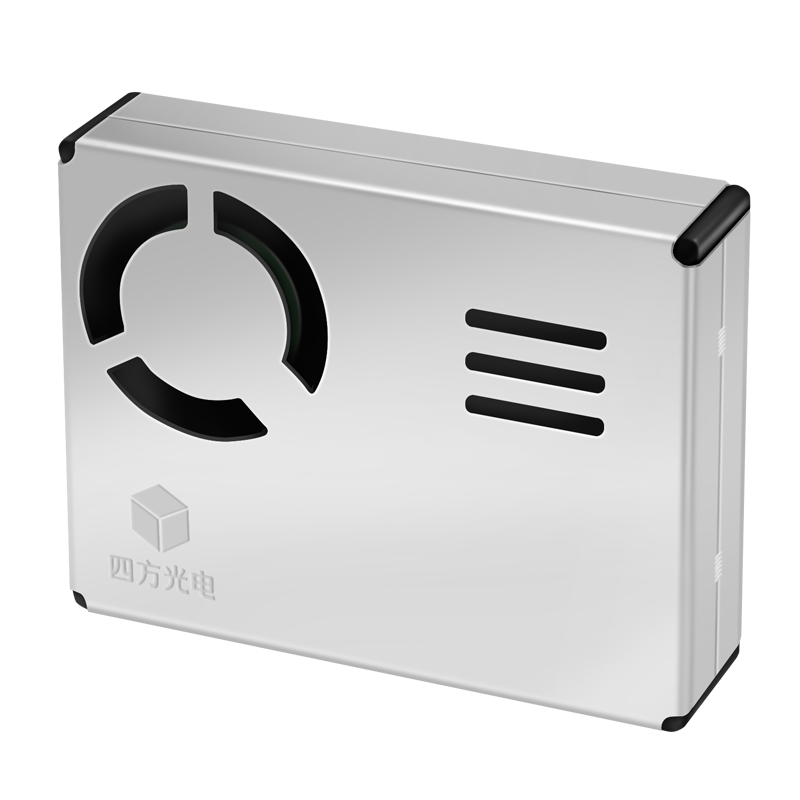

PM2008-API laser particle sensor module is based on laser scattering technology, ultra-thin (12mm) designed with all metal shielding. Detecting particle concentration size between 0.3μ-10μm in the air and real-time output PM1.0, PM2.5, PM10 in μg/m3 via mathematical algorithm and scientific calibration.
Features
1.Real-time output PM1.0, PM2.5, PM10 in μg/m3 available.
2.All metal shielding, strong anti-interference.
3.Smaller and thinner structure design, height only 12mm.
4.High accuracy, high sensitive and quick response (≤8s).
5.Signal output optional: UART, I2C.
Applications
1.Air Purifier
2.Fresh Air System
3.Fresh Air System Controller
4.Air Quality Monitor
Specification
1.Air Purifier
2.Fresh Air System
3.Fresh Air System Controller
4.Air Quality Monitor
Specification
| Measured particle size |
0.3μm~10μm |
| Measurement range |
0~5000μg/m3 |
| Measurement accuracy for PM1.0&PM2.5 |
0 ~35μg/m3, ±5μg/m3 35μg/m3~500μg/m3, ±15% of reading |
| Measurement accuracy for PM10 |
0~100μg/m3, ±30μg/m3 101 ~500μg/m3, ±30% of reading |
| Condition |
25±2℃,50±10%RH |
| Reference instrument |
GRIMM |
| Dust Source |
Cigarette +Arizona A1 |
| Time to first reading |
≤8s |
| Response time |
1s |
| Working temperature |
-10℃~60℃ |
| Working humidity |
0~95%RH(non-condensing) |
| Power supply |
DC5V±0.1V |
| Ripple wave |
<50mV |
| Working current |
<100mA(working); <200μA(standby) |
| Signal output |
UART_TTL, I2C, PWM(customized) |
| Dimensions |
W47.8*H36.8*D12(mm) |
