| Output: | UART_TTL/, I2C (3.3V/5V) |
|---|---|
| Theory: | Laser Scattering |
| Usage: | Gas Sensor |
| Brand Name: | Cubic |
| material: | metal |
| Model Number: | PM2012SE-A/PM2012SE-B |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications
Introduction

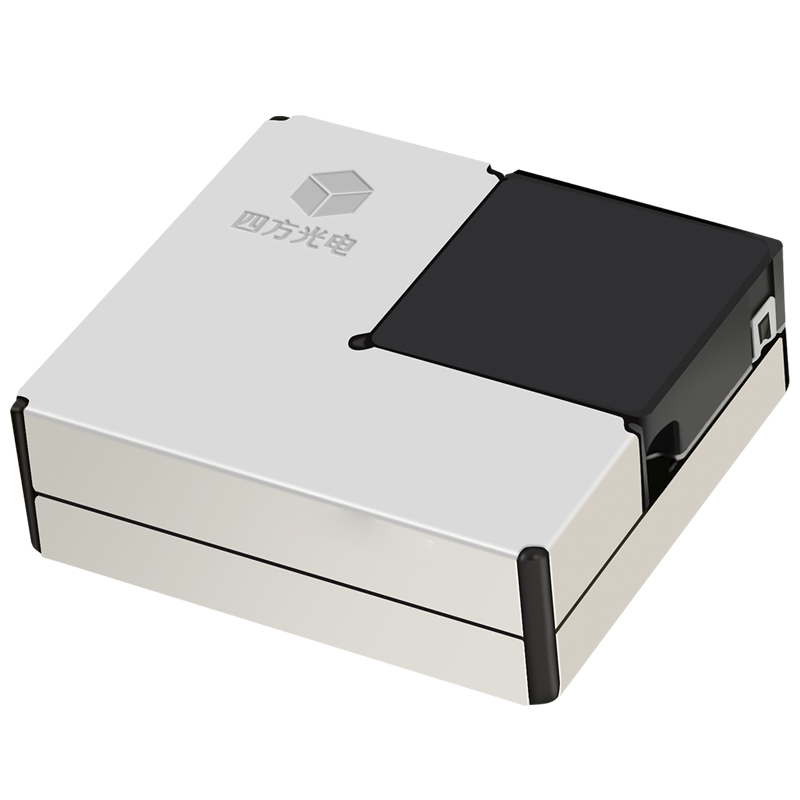

PM2012 smallest size laser particle sensor module is based on laser scattering technology.Detecting particle concentration size between 0.3μ-10μm in the air and real-time output PM1.0, PM2.5, PM10 in μg/m3 directly via mathematical algorithm and scientific calibration.
Features
1.Smallest & ultra-thin.
2.High accuracy.
3.High sensitive and quick response(≤8s).
4.Signal output optional: UART, I2C.
5.Compact structure, light weight, easy to install.
Applications
1.Air Purifier
2.Fresh Air System
3.Fresh Air System Controller
4.Air Quality Monitor
Specification
1.Air Purifier
2.Fresh Air System
3.Fresh Air System Controller
4.Air Quality Monitor
Specification
| Measurement particle |
0.3μm~10μm |
| Measurement range |
0~5000μg/m3 |
| Accuracy |
PM1.0/PM2.5: 0~100μg/m3, ±10μg/m3; 101ug/m3~500μg/m3, ±10% of reading PM10: 0~100μg/m3, ±25μg/m3; 101~500μg/m3, ±25% of reading (GRIMM, 25±2℃, 50 ±10%RH) |
| Timeto first reading |
≤8s |
| Response time |
1s |
| Working temperature |
-10℃~60℃ |
| Working humidity |
0~95%RH(non-condensing) |
| Power supply |
DC 5V±0.1V |
| Ripple wave |
<50mV |
| Working current |
≤100mA(Working), ≤200uA(Standby) |
| Signal output |
UART_TTL/, I2C (3.3V/5V) |
| Dimensions |
W38*H35*D12 (mm) |
