| Output: | UART_TTL/, I2C (3.3V/5V) |
|---|---|
| Theory: | Laser Scattering |
| Usage: | Gas Sensor |
| Brand Name: | Cubic |
| material: | metal |
| Model Number: | PM2009L |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications
Introduction

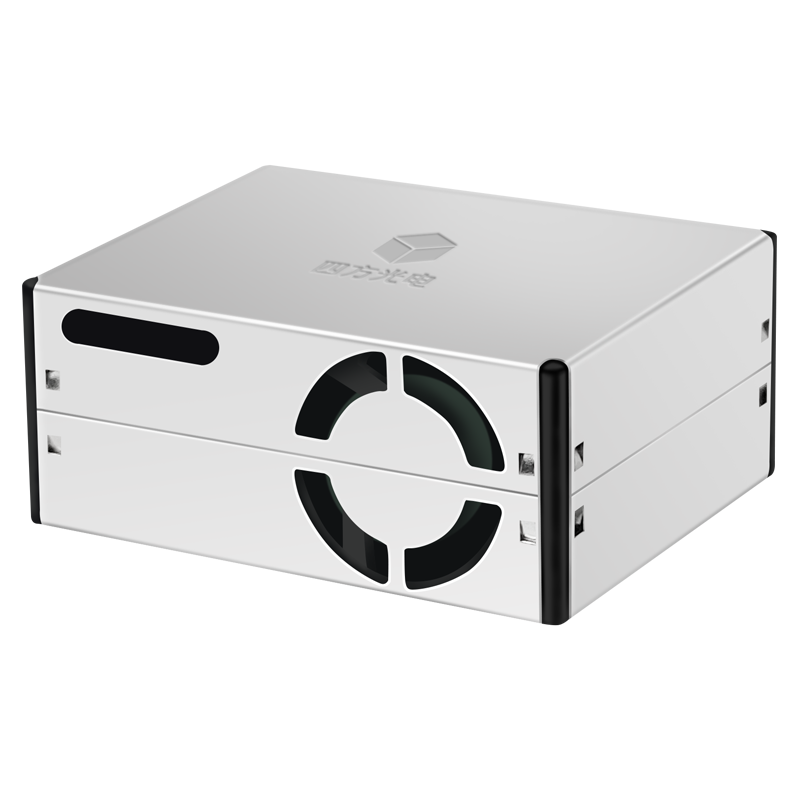

PM2009L with anti-dust structure laser particle sensor module is based on laser scattering technology.Detecting particle concentration size between 0.3μ-10μm in the air and real-time output PM1.0, PM2.5, PM10 in μg/m3 via mathematical algorithm and scientific calibration.
Features
1.All metal shielding, strong anti-jamming capability.
2.Particle quantity and mass concentration output simutaneously.
3.High accuracy, high stability.
4.High sensitive and quick response (≤8s).
5.Compact structure, light weight, easy to install.
Applications
1.Air Purifier
2.Fresh Air System
3.Fresh Air System Controller
4.Air Quality Monitor
Specification
1.Air Purifier
2.Fresh Air System
3.Fresh Air System Controller
4.Air Quality Monitor
Specification
| Measurement particle |
0.3μm~10μm |
| Measurement range |
0~5000μg/m3 |
| Measurement accuracy for PM2.5/PM1.0 |
0~100μg/m3, ±10μg/m3; 101~500μg/m3, ±10% reading (GRIMM, 25±2℃, 50 ±10%RH) |
| Measurement accuracy for PM10 |
0~100μg/m3, ±25μg/m3; 101~500μg/m3, ±25% reading (GRIMM, 25±2℃, 50 ±10%RH) |
| Time to first reading |
≤8s |
| Response time |
1s |
| Working temperature |
-10℃~50℃ |
| Working humidity |
0~95%RH(non-condensing) |
| Power supply |
DC 5V±0.1V, ripple wave<50mV |
| Working current |
<100mA(working); <200μA (standby) |
| Signal output |
UART_TTL/, I2C (3.3V/5V) |
| Dimension |
W50*H38*D21 (mm) |
