| Output: | PWM, UART_TTL |
|---|---|
| Theory: | Light Scattering |
| Usage: | Gas Sensor |
| Brand Name: | Cubic |
| material: | metal |
| Model Number: | PM1003 |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications
Introduction

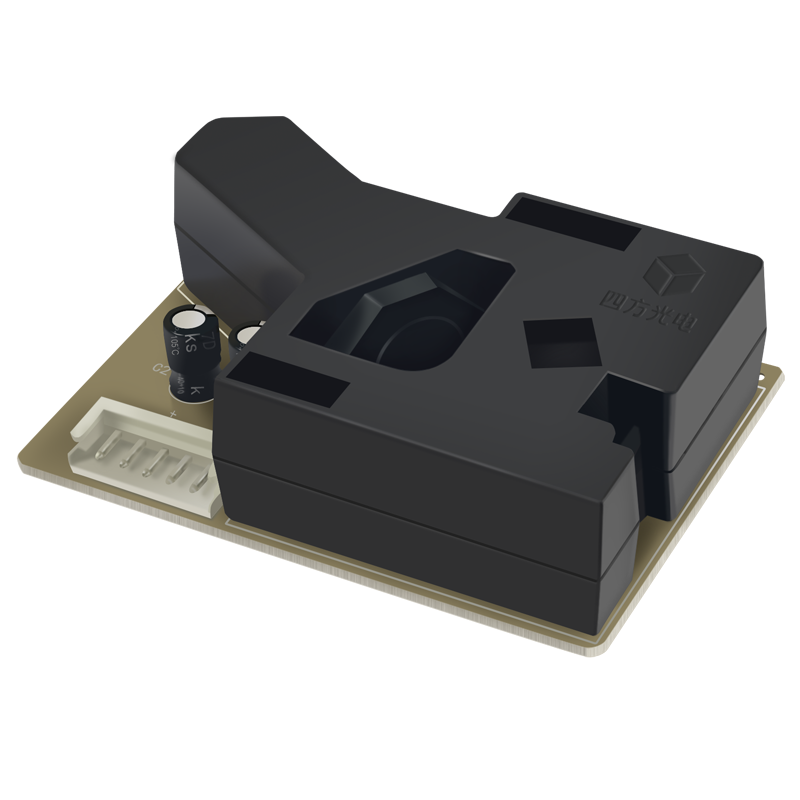

PM1003 infrared (LED) particle sensor real time output PM2.5.Designed to detect the variation trend of particle concentration size between 1.0μm~10μm. It can measure dust concentration in the air by detecting the intensity of scattered light,and output real time concentration via mathematical algorithm and scientific calibration.
Features
1.Particle measured size range: 1.0μm~10μm.
2.Built-in MCU, directly output particle mass concentration (μg/m3).
3.Electromagnetic shielding, anti-interference.
4.High stability and good consistency.
5.Signal output optional: PWM, UART.
6.Temperature compensation within whole measurement range.
Applications
1.Air Purifier
2.Air Quality Monitor
Specification
1.Air Purifier
2.Air Quality Monitor
Specification
| Measured particle size |
1.0μm~10μm |
| Measurement range |
0~500μg/m3 |
| Accuracy |
0~100 μg/m3:±30μg/m3; 100~500 μg/m3: ±30% of reading (25±2℃, 50±10%RH) |
| Response time |
≤30 seconds |
| Working condition |
-10℃~ 50℃, 0~95%RH (non-condensing) |
| Storage condition |
-20℃~60℃, 0~95%RH ( non-condensing) |
| Power supply |
DC5V±10% |
| Ripple wave |
<50mV |
| Working current |
≤90mA |
| Signal output |
PWM, UART_TTL |
| Dimensions |
W59*H45*D20mm |
| Weight |
26g |
