| Output: | UART_TTL/I2C(3.3V/5V), RS485, 4-20mA can be customized |
|---|---|
| Theory: | Laser Scattering |
| Usage: | Gas Sensor |
| Brand Name: | Cubic |
| material: | metal |
| Model Number: | PM5000S/7500H-OPC |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications
Introduction

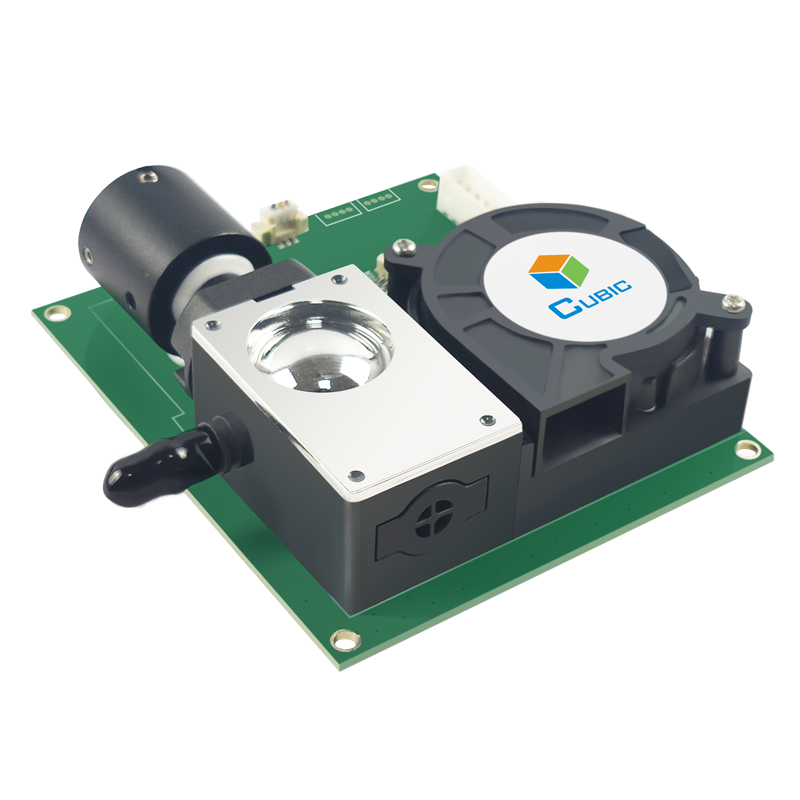

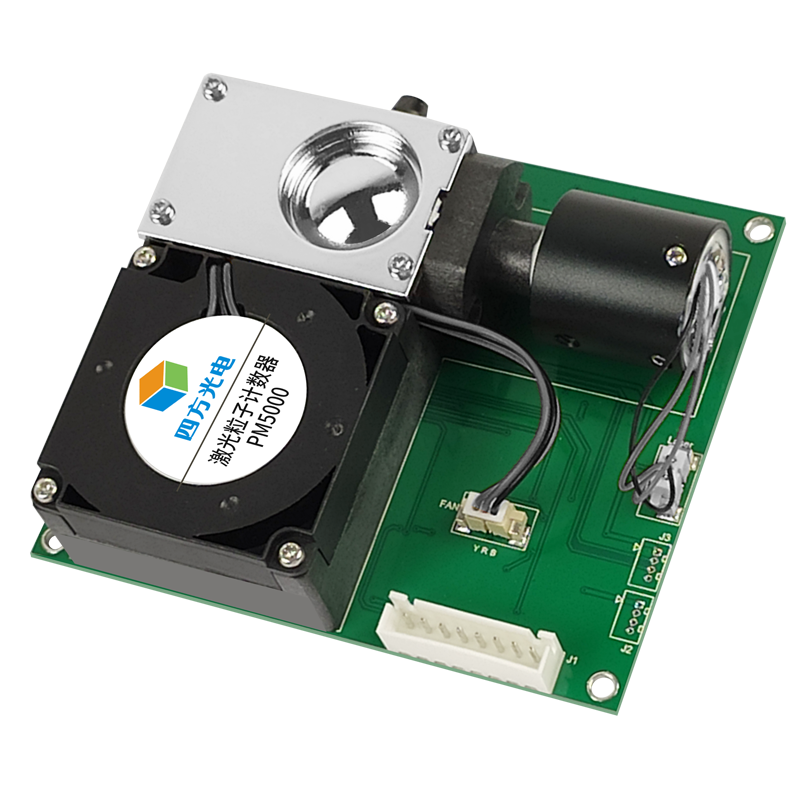

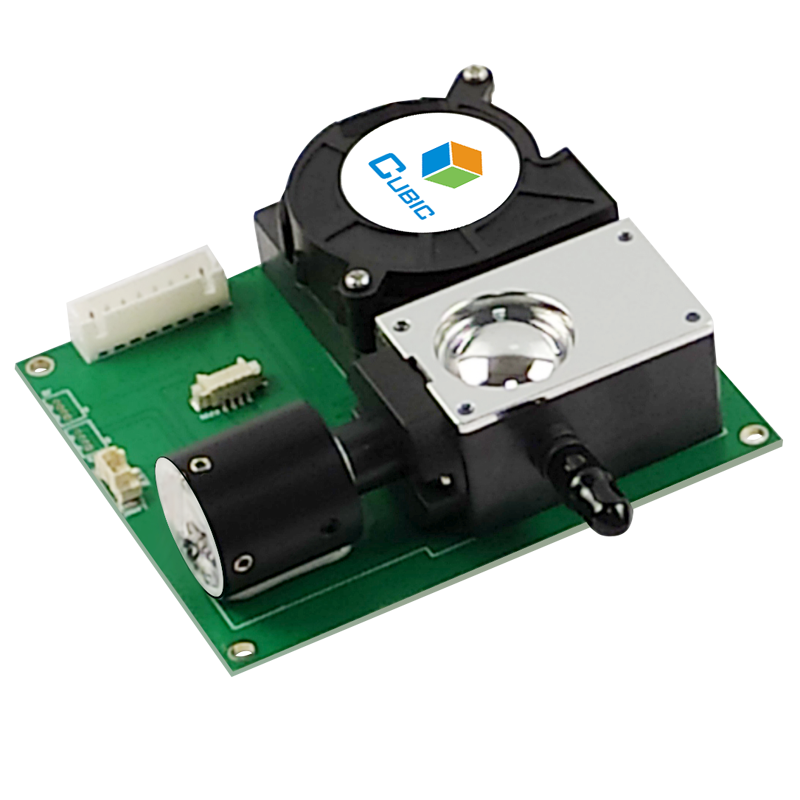

PM5000S optical particle counter is based on laser scattering technology, which can accurately detect and calculate the number of different size suspended particles in the air per unit volume. the built-in intelligent identification for different air/dust source that could automatically identify dust source and ambient air to give accurate measurement. It can simultaneously output the number of particles in 6 channels including 0.3μm, 0.5μm, 1.0μm, 2.5μm, 5.0μm and 10μm (PCS/L).
Features
1.Intelligent identification for different air/dust source that could automatically identify dust source and ambient air to give accurate measurement.
2.It can output 0.3μm, 0.5μm, 1.0μm, 2.5μm, 5.0μm, 10μm 6 channel particle number at the same time.
3.Concave spotlight design.
4.Better laser diode and fan with better performance, meet -30℃~70℃.
5.Working temperature. -40℃~85℃ working temperature sensor is also available.
6.High sensitivity and quick response (≤8s).
Applications
1.Air Purifier
2.Air Quality Monitor
Specification
1.Air Purifier
2.Air Quality Monitor
Specification
| Measurement particle |
0.3μm, 0.5μm, 1.0μm, 2.5μm, 5.0μm,10μm |
| Measurement range |
0~10,000,000 pcs/L(1pcs/L=28.3pcs/cf) |
| Accuracy |
≤100pcs/L: ±30pcs/L; 100pcs/L: ±30% of reading" (Condition: 0℃-40℃,50±10%RH, Reference instrument: TSI9306) |
| Resolution |
1 pcs/L |
| Time to first reading |
≤8s |
| Response time |
1s |
| Working condition |
-30℃~70℃, 0~95%RH(non-condensing) |
| Storage condition |
-40℃~85℃, 0~95%RH(non-condensing) |
| Power supply DC |
5V±0.1V, ripple wave<50mV |
| Working current |
<250mA (working); < 20mA(standby) |
| Signal output |
UART_TTL/I2C(3.3V/5V), RS485, 4-20mA can be customized |
| Dimension |
W85*H74*D24.9 (mm) |
