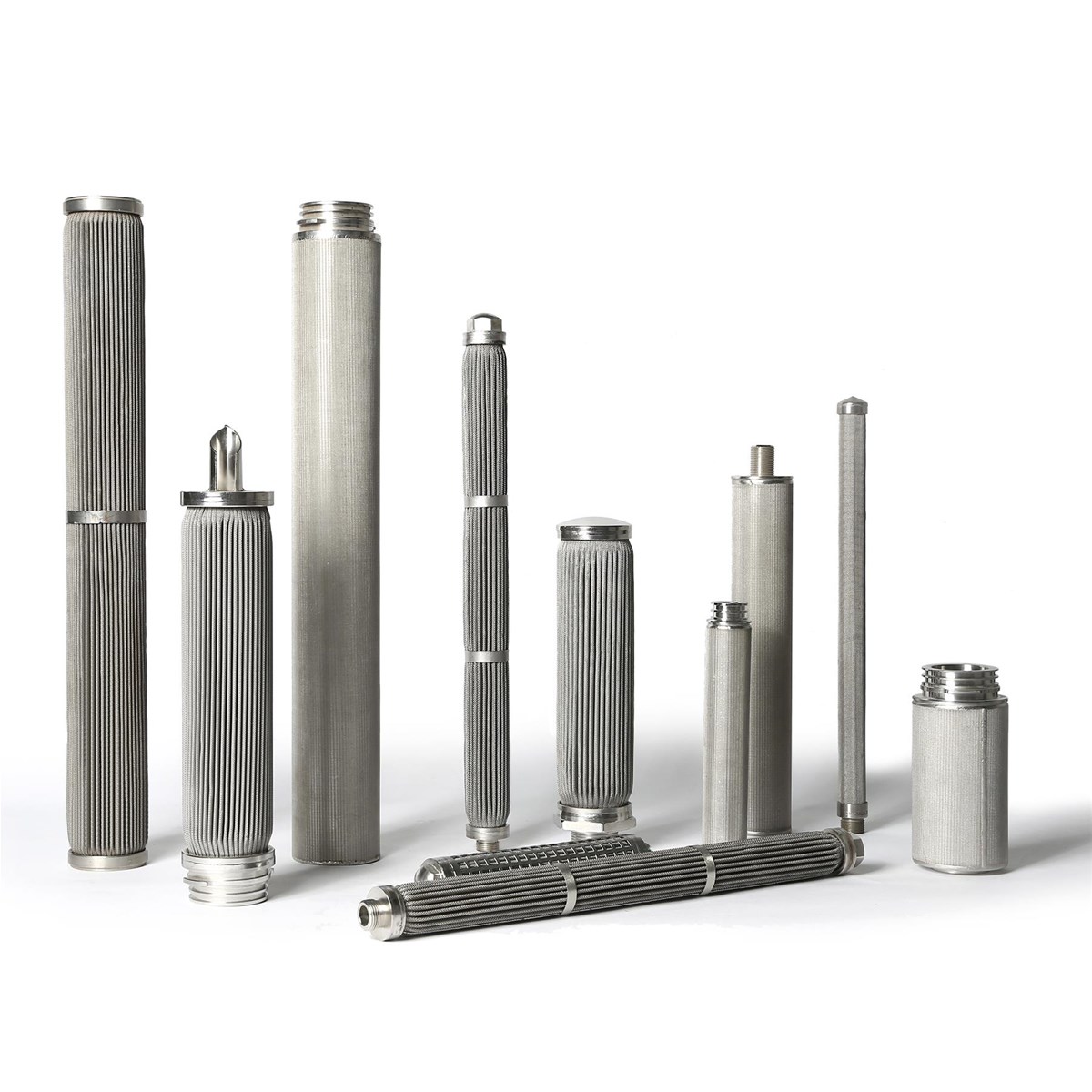

Main filter media of pleated filter elements are stainless steel sintered fiber web and stainless steel weaving wire mesh.

Stainless steel sintered fiber web is a kind of multipore deep filter media, sintered with stainless steel fiber at the high temperature.the filter elements enjoy the advantage of high porosity, large filter area and good dirt holding capacity, and can also be used repeatly after chemical cleaning.

Stainless steel weaving wire cloth is weaved with stainless steel wire. these filter elements have such characteristics of good strength fastness, easy cleaning, high temperature resistance, low cost.

Application:Products are widely used in petrolum, chemical, chemical fiber, aviation, aerospace, nuclear industry, pharmaceutical, metallurgy, electric power, water treatment, food and beverage, coal chemical and other industries.

Product Details

by utilizing pleated technology,   We provide our customers with filter cartridges of larger surface area,   Higher dirt holding capacity and longer on-stream life due to their excellent flow rates and multi-layer construction.   QL pleated filter cartridges can be cleaned in situ by backpulsing or backwashing ,  Which helps to save on running costs .  We can also add outer cage (perforated sheet) to provide additional protection for the pleated cartridges to ensure the integrity during the  Cleaning process .



Characteristics:

1.  High porosity

2.  Easy to clean

3.  Corrosion resistance

4.  High permeability

5.  High temperature resistance



Applications:

1.  Viscose filtration

2.  Polymer filtration

3.  Hot gas filtration



Operating Conditions :

1.MWP(maximum working pressure):30MPa

2.  Fluid Viscosity:200Pa.S

3.  Dirt-holding Capacity:16.9~41Mg/ C

4.  Filtration Precision:5~6 0

5.  Operating Temperature:300℃



Standard Filter Cartridge Sizes:

35*425;
35*485;

60*500;

60*1000;

60*1250 ;

Other sizes to meet customer requirements
