Introduction

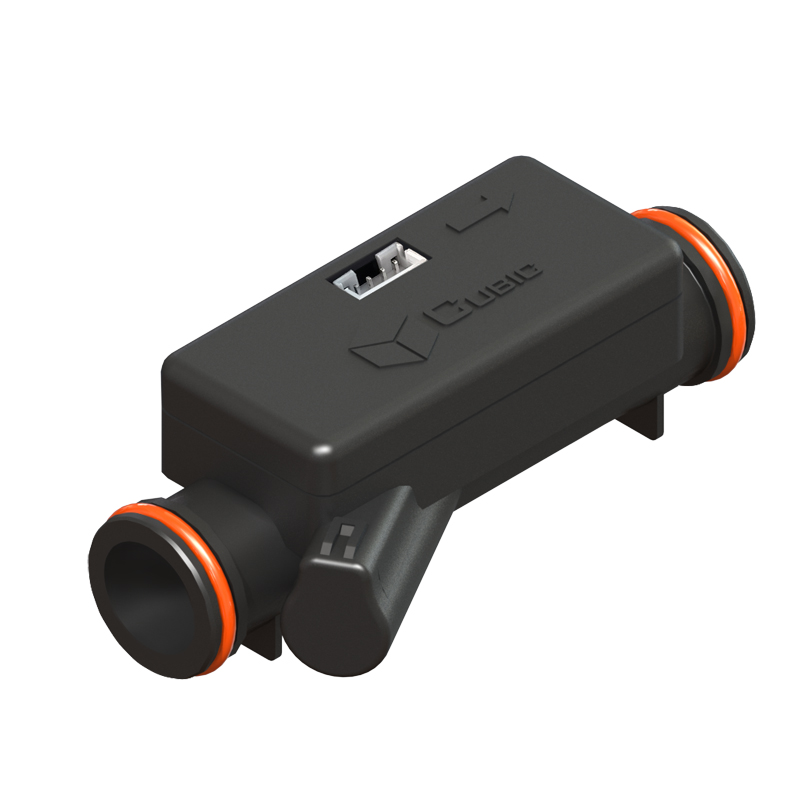

Gasboard-8500FS-L240 is Cubic's ultrasonic technology 5-in-1 combined sensor solution to measure flow rate, oxygen concentration, temperature pressure and humidity. It is suitable in binary gases for medical ventilators to support the global pandemic situation due to Corona virus outbreak. the measured flow rate range of Gasboard-8500FS-X200 can be up to 240L/min. Benefit from ultrasonic technology and principle of TOF (time of flight) measurement, Gasboard-8500FS-X200 has excellent performances with advantanges of high accuracy, fast response, no drift, no need for routine calibration and maintenance-free, etc.. Gasboard-8500FS-X200 can be widely used in high-flow nasal cannula oxygen therapy ventilation, positive airway pressure ventilation, anesthetic ventilator and other medical equipments related to breath.
Features
1.Ultrasonic measurement technology, for both oxygen concentration and flow rate up to 240L.
2.Based on principle of TOF (time of flight) measurement, continuous monitoring, no drift, no need routine calibration, maintenance-free.
3.Excellent stability, high accuracy, fast response.
4.Full scale matrix temperature and humidity compensation.
5.No-consuming parts, long Lifespan.
6.Small size, flexible installation.
7.High performance-cost-ratio.
