| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Condition: | New |
| Brand Name: | Hunk |
| Origin: | China |

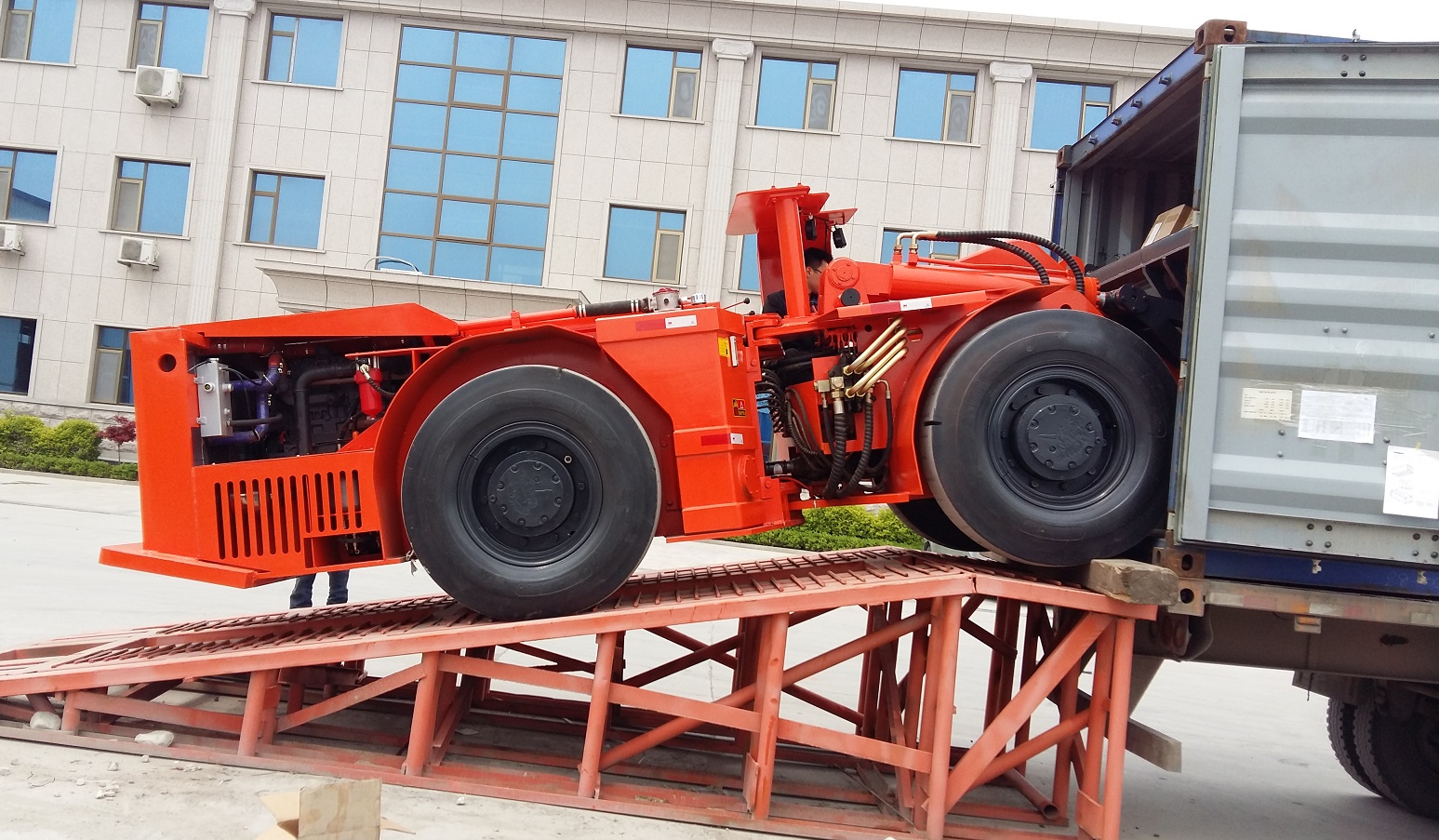

| name: | Underground loader |
| Model Number: | HKWJ-2 |
| Place of Origin: | China (Mainland) |
| Bucket capacity: | 2cbm |
| Rated load capacity: | 4tons |
| Max climbing ability: | 20 degree |
| travelling speed: | 1st shift: 3.6km/h, 2nd shift: 6.7km/h, 3rd shift:18km/h |
| Max steering angle: | +-42 degree |
| Wheel base: | 2540mm |
| Overall Dimension: | L6900*W1770*H2050MM |
| Hoisting time: | <=7S |
| Total weight: | 12.5 tons |
| Min turning radius: | 4980mm(outer) 2500mm(inner) |
Quick Details
Specifications
Technical specification:
===============
Product name: WJ-2 Underground Loader
Engine
DEUTZ F6L912W or BF4M1013EC engine.
Transmission and converter
DANA TR20000 or R32000 transmission and C 272 series torque converter.
Axles
Service brake is fully enclosed multiple wet discs brake, spring applied and hydraulic released.
NO-SPIN differential in front axle.
Others
Central articulated, hydraulic power steering.
Main Technical Parameter:
| Engine | DEUTZ F6L912W, 63 kw or BF4M1013EC, 102 kw | ||
| Bucket volume (SAE) | 2 m3 | Arm raising time | 7 s |
| Tramming capacity | 4000 kg | Bucket dumping time | 5 s |
| Max. Breakout force | 102 kN | Min. Clearance | 280 mm |
| Max. Traction | 104 kN | Max. Discharge angle | 40 degrees |
| Max. Discharge height | 1743 mm | Max. Turning angle | 42 degrees |
| Max. Raising height | 4218 mm | Rear axle oscillation | 7 degrees |
| Max. Gradeability (first) | 20 degrees | Leaving angle | 16 degrees |
| Min. Discharge distance | Wheelbase | 2540 mm | |
| Speed (loaded) | First gear | Second gear | Third gear |
| Forward and reverse | 0-3.8 km/h | 0-8.4 km/h | 0-22.8 km/h |
| Min. Turning radius | 4768 mm(outer) 2461 mm(inner) | Tyre specification | 12.00-24 |
| Dimension | 6820 mmL*1780 mmW* 1950 mmH | Overall weight | 12500 kg |
