the following example is for you reference.


1.Brief Introduction:



1) Drill pipe OD: 2 7/8", 3 1/2", 4", 4 1/2", 5" 5-1/2"
2) Steel Grade: E75, G105, S135,X95

3) Type of end finish: EU-external upset, IEU-internal & external upset

4) All drill rod are made according to API 5D standard

5) We can provide in many conditions, with or without hard banding (Arnco100XT, Arnco300XT, tungsten carbide etc).



2.Techincal parameters:



Size (in)	Nominal Weight (1b/ft)	OD of Pipe Body		Wall Thickness of Pipe Body		Grade	Upset Type	Conn. Type	OD of Pin and Box
		ID of Pin		(in)	(mm)				(in)	(mm)
(in)	(mm)	(in)	(mm)	2 3/8	6.65	2 3/8	60.32
0.280	7.11	EXGS	EU	NC26 (2 3/8 IF)	3 3/8	85.70	1 3/4	44.45	2 7/8
10.40	2 7/8			73.02	0.36	9.19	NC31 (2 7/8 IF)	4 1/8	104.80
2	50.80			3 1/2	13.30	3 1/2	88.90	0.37	9.35
NC38 (3 1/2 IF)	5			127.00	2 7/16	61.91	3 1/2	15.50	3 1/2	88.90	0.45
11.40	NC38 (3 1/2 IF)			5	127.00	2 1/8	53.98	4	14.00
4	101.60		0.33	8.38	NC46 (4 IF)	6	154.20	3 1/4
82.55	4 1/2		16.60	4 1/2	114.30	0.34	8.56	IEU	NC40 (4 IF)
6 1/4	158.80		3	76.20	4 1/2	20.00	4 1/2		114.30	0.43	10.92
NC46 (4 IF)	6 1/4		158.75	2 1/2	63.50	5	19.50		5
127.00	0.36		9.19	NC50 (4 1/2 IF)	6 5/8	168.30	3 1/4		82.55
5	19.50		5	127.00	0.36	9.19	5 1/2 FH		7
177.80	3 3/4		95.25	5	25.60	5	127.00		0.50	12.70
NC50 (4 1/2 IF)	6 5/8		168.28	2 3/4	69.85	5	25.60		5	127.00
0.50	12.70		5 1/2 FH	7 1/4	184.15



3.Performance features:

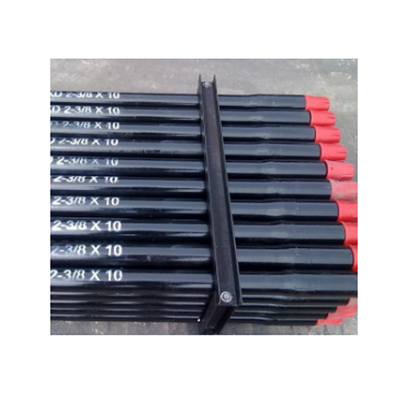

API 5DP Drill pipe
Drill pipe comply with the provisions under the Standards API SPEC 5DP and API SPEC7. the grade of steel for the drill pipe will
Be determined according to the requirements of Group 1 and Group 3 of API SPEC 5DP.
(i.e.: Group 1--Grade E; Group 3--Grade X-95, Grade -G-105 and Grade -S-135)
as per requirements of customers, drill pipe joints at the same level will be provided, and manufactured drill pipe joints will
Comply with the provisions under the Standard API SPEC 7.
API 5DP drill pipe
