1. Brief introduction for Water Treatment RO Machine S2T-3000GPD

S2T-3000GPD is 500L/H ro water treatment system with RO membrane at high recovery rate reach to 50% for raw water source of tap water. Application in school, market, filling machine. RO system water treatment for drinking water tap water as raw water. Capacity 500L per hour. with sand filter and carbon filter. Good quality RO membrane and CNP pump.
the device is integrated structural design. the hoses and threads are properly sealed. Its small volume is for easy movement, installation and maintenance. the materials  for  the  device  are  corrosion-resistant, reinforced  plastics, nickel-aluminium bronze, to solve the water corrosion problem.
the S2T series are RO unit used for treating water with TDS below 2000ppm, such as tap water and municipal water. this series are standard designing and installation, which include water pump, membrane, sediment filter, etc. the permeated water after treated can drink directly. S2T series have been exported to many countries, such as Bahrain, Middle east and East Asia.

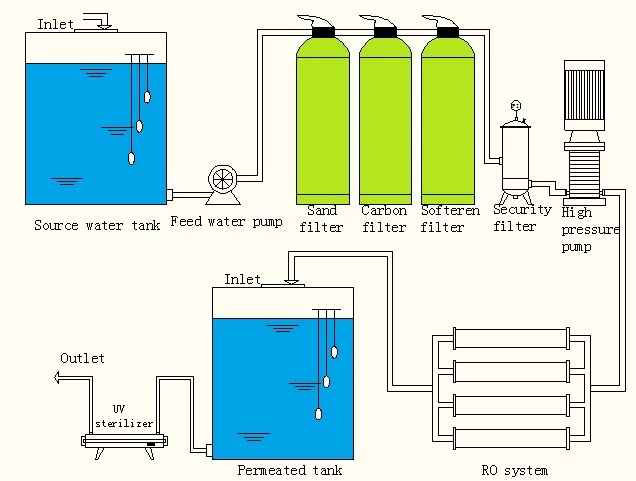

2.Technical route and flow diagram instructions

the technical route is as following.
Raw tank--> sand filter--> carbon filter--> softener --> sediment filter-->high pressure pump-->RO desalination device-->permeate tank

3. Water Treatment RO Machine Specification:

Model	Capacity (LPH)	3rd year operating pressure(PSI)	No. of 4" element	4"membrane vessel	Designed recovery	Driving motor 50Hz/380V
S2T-3000GPD	500	200	2	40"*2	30%	2.1KW

4. Weights & dimensions for Water Treatment RO Machine

Model	Approximate unit dimension				Approximate shipping dimension
	L(mm)	W(mm)	H(mm)	Weight(kg)	L(mm)	W(mm)	H(mm)	Weight(kg)
S2T-3000GPD	560	560	1570	80	760	760	1700	100

5. Components

Main Components

• T.F.C.R.O membrane with 99% average salt rejection
• FRP pressure vessel
• SS centrifugal pump
• Coated carbon steel frame
• Sediment filter
• Product water flow meter
• Concentrate regulate valve
• Pressure gauge
• Pump exit regulate valve
• 380V/50HZ power supply

Optional Components

• 304SS pressure vessel
• CIP system
• Concentrate recycle
• Chemical dosing system
• 220V/60HZ power supply
