| After-sales Service Provided: | Overseas service center available |
|---|---|
| Certification: | CE(TUV; SGS), FAD, ISO |
| Power(W): | 60, 80, 100 |
| Production Capacity: | 300 sets per month |
| Packing size: | 810*315*375mm |
| Warranty: | 1 years |
| Weight: | 40KG |
| Dimension(L*W*H): | 810*315*375mm |
| Voltage: | 220V |
| Model Number: | B60 |
| Brand Name: | GBOS |
| Automatic Grade: | Automatic |
| Condition: | New |
| button laser marking machine: | garment accessories |
Quick Details
Specifications
the following example is for you reference.
Free design the processing files
Integrated optical path and electronic control
Camera positioning(option)
1.Brief Introduction:
B series button laser marking is a perfect laser marking system. It is mainly applied in designing button and optimizing button laser marking. with sealed CO2 laser, this machine is allied in marking, cutting and drilling. It is suitable for plastic, wood, ivory, leather and other natural materials, and it is also used in paper, cardboard, dacron, metal spray paint, glass, marble, granite, ceramic, pearl, bone, cloth, etc.
this button machine is easy to operate. It can be installed in a variety of button machines. High speed, stable and reliable, the whole machine is designed reasonable, with compact structure and low life cycle cost.2.Techincal parameters:
MODEL
B60/B100 Processing Area(mm)
6565mm Gross Power
≈1850W Measurement(mm)(LWH)
810315375mm Supported vector & raster file formats
AI, DXF, DST,PLT...
BMP, JPG, GIF, TGA, PNG, TIF...Weight(kg)
40KG Power Supply
220V/10A,50Hz or 60Hz Marking Precision
±0.2mm Cutting speed
3000-7000mm/s Environmental Requirements
Temperature 10-30℃ Humidity (no condensation) 30-80% MODEL
B60/B100
3.Performance features:
Product Advantage
Matching all kinds of button machines
B series laser engraving system can be easily fitted in all versions of button marking machines(either set-up for laser or not)
Free design the processing files
Directly input of multi alphabetical linear and round texts (True Type and monoline), multi step counters, geometric shapes, barcodes.
Data matrix with precise spacings and positioning within the engraving area.
Integrated optical path and electronic control
Laser safety regulations: Class 4 laser system, CEI EN 60825-1.

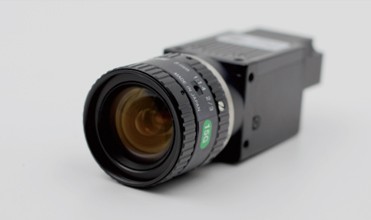

Camera positioning(option)
Camera for holes centring.
