Quick Details

Output Voltage (V): 800
Electricity Generator Type: Hydro Power
Type: Generator
Brand Name: DSSD
Specification: 300kw-70mw
Model Number: SF-
Place of Origin: China (Mainland)
Water Head: 25m-300m
Layout Pattern: Horizontal or Vertical
Blade Material: Stainless steel or Carbon steel
Excitation:: Brushless or Static excitation system
Frequency: 50Hz/60Hz
warranty: 3-12month
lifespan: 30-50year

Specifications

Axial flow turbine / kaplan turbine

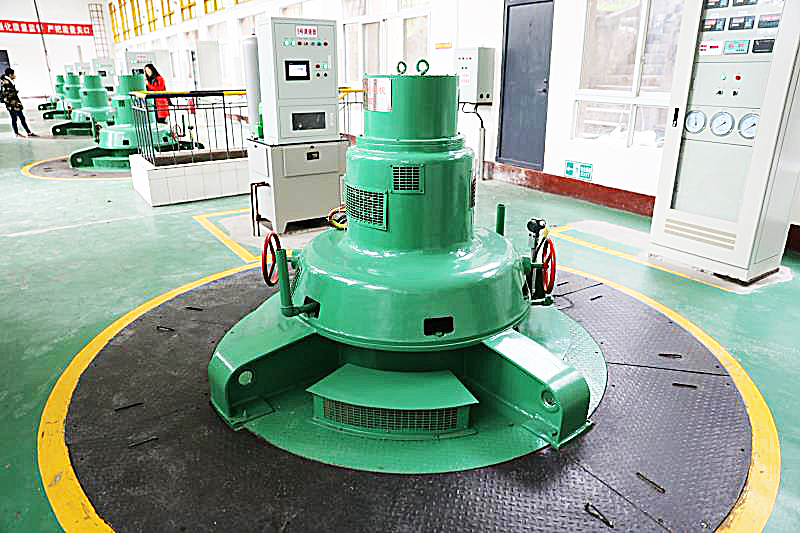

mini hydroelectric generatorkaplan turbine 1000kw 5000kwwater turbine

Kaplan Turbine also called axial-flow turbine. It is of the propeller type, similar to an airplane propeller. Its water head is from 5m to 60m.   Thus, this types of turbine is mostly used to hydropower stations with low water head and big flow.  the kaplan's blades are adjustable for pitch and will handle a great variation of flow very efficiently. Generally, Kaplan turbine is composed of distribuor, guide vane, runner, draft etc.

Unlike other types of propeller turbine, the runner blades are movable.
the guide vanes could also be turned and were automatically adjusted to any angle suitable to that of the blades by a combiner, so the turbine was efficient at different work-loads.


Parameters of kaplan

Water head 5m-60m
Runner diameters 0.5m-5m
Power range 100kw to 70mw
Frequency 50hz/60hz
Generator voltage 400v,800v,6300v,10500v
Layout pattern Horizontal or vertical
Material(blades) Stainless steel ZG0Cr13Ni4Mo
Generator Insulation F/F
Lifespan 30~50years

about our company:

Mini Hydroelectric Generator Kaplan Turbine 1000kw 5000kw Water Turbine

Deyang Dongsen Hydropower Equipment Co., Ltd. Is located in Deyang City, Sichuan province, China, and established in 2 0 0 7. Deyang is one of the three major manufacturing bases in China. It offers strong support of resource allocation for us. Dongsen is a professional comprehensive engineering company, especially in hydropower projects fileds. Our main business is designing and manufacturing hydraulic turbine generator sets as well as E P C for hydro-power stations, providing new hydro equipment, auxiliaries, installing transmission lines, designing projects, upgrading capacity, maintaining equipment and investing hydropower stations. Our products are Francis turbine, Kaplan turbine, Tubular turbine, Pelton turbine and Turgo turbine generator sets with capacity from 1 0 0 kilowatt to 5 0, 0 0 0 kilowatt. Dongsen's technical team has 2 0 years experience in hydropower equipment, and we have 4 development staffs and 37 skillful technicians. Dongsen has strong technical competence, modern production capacity, scientific management. We passed I S O 9 0 0 1: 2 0 0 8 quality system certification. Dongsen has already provided reliable products and excellent services for more than 5 0 0 hydropower stations. Our motto is Customer, Quality and Reputation is the first. We acquired high reputation from customers and cooperators. Today, the One Belt One Road policy provides us more opportunities to do business all over the world. Dongsen is pursuing to be a top-class hydropower equipment supplier.



Our market:

South America, Southeast Asia, Africa, Europe, America, Asia, etc.


We have:

Francis turbine, Kaplan turbine, Tubular turbine, Pelton turbine and Turgo turbine. and a series of auxiliary equipment for hydropower station, such as cooler, runner, crane, transformer, integrated protection and so on.

mini hydroelectric generatorkaplan turbine 1000kw 5000kwwater turbine


We offer:

 1. Professional advice for client.

 2. Provide site instruction.


WHY US?

1.DSSD has senior engineering and technical experts, professional hydro-generator design team and installation team

2. Long life span: 30~50 years

3. Competitive prices with 30% saved or more

4. Provide complete proposal for hydro power plant from water to wire

5. More than 20years of industry experience, install commissioning more than 100 equipment each year

6. Power generation equipment has been provided for more than 500 power stations at home and abroad

7. Flexible Payment Terms:West Union;L/C;T/T;Paypal or according to your demand

8.Flexible Price Terms: EXW;FOB any port;CIF;DDU;DDP

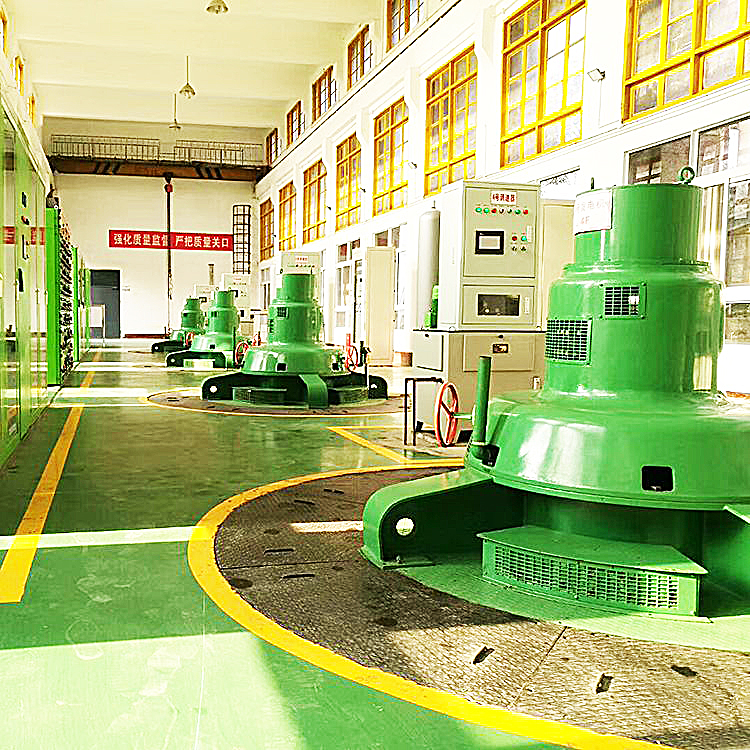

Xinsheng hydropower station
