Introduction

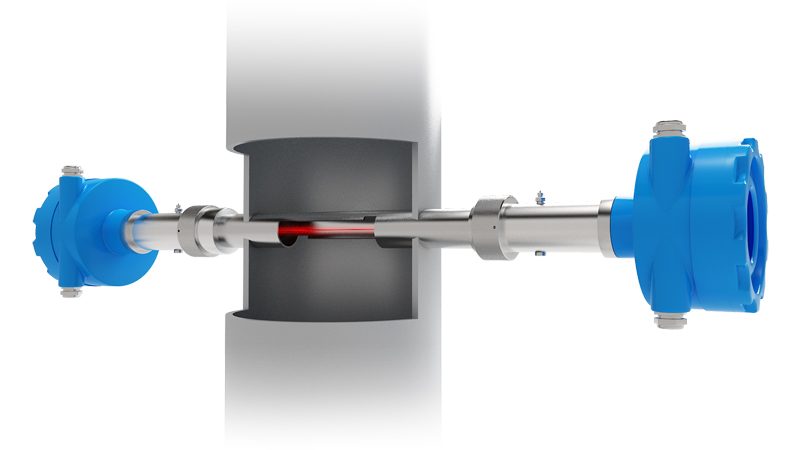

in-situ laser process gas analyzer GasTDL-3100 is a high-performance laser gas analyzer based on tunable diode laser absorption spectroscopy technology (TDLAS).
with a cross-stack design, GasTDL-3100 can be used for industrial process gas control; the response time is fast, which is generally calculated in seconds in in-situ measurement. It can avoid the time delay caused by sampling measurement. the gas component concentration can be reflected online and in real time.

Features

• Adopts TDLAS technology, no cross-interference from other gas.
• in-situ installation, no need for sampling or pretreatment system.
• Fast response time(T90≤4s), can reflect the gas concentration in real time.
• Real-time online measurement, the gas concentration is not easy to be distorted, and the measurement accuracy is high.
• Good adaptability in  harsh  measurement environments such as high temperature, high dust, high moisture, high corrosion, high flow rate, etc.
• Explosion-proof design, high safety factor.
• Simple structure, no consumables or moving parts, maintenance-free.

Specifications

Measurement Component	O2, CO, CO2, CH4*
Measurement Principle	TDLAS
Measurement Range	O2: (0~5)%VOL(100% can be customized) CO: (0~100)%VOL CO2: (0~100)%VOL CH4: (0~20)%VOL
Precision	≤±1%F.S.
Repeatability	≤±1%F.S.
Drift	≤±1%F.S.
Resolution	0.01% VOL
Response time	T 90 ≤4s
Working Parameter
Ex-proof Grade	Exd II CT6
Installation Method	in-situ Installation
Working Temperature	(-20~+60)℃
Power Supply	24V DC, 24W
Purge Gas Source	(0.3~ 0.8) Mpa Industrial N2
Interface Signal
Communication	RS485,RS232
Analog signal	2 channels 4~20mA output 3 relay outputs

Note: Each analyzer can only measure the concentration of one single gas

Applications

Metallurgy	Blast furnace ironmaking	Blast furnace gas analysis	CO, CO2, O2, CH4
		Safety control of blast furnace coal injection	O2, CO
		Hot blast stove flue gas analysis	O2, CO
	Converter steelmaking	Converter gas recycle	O2, CO
		Converter gas safety control	O2
		Carbon determination of converter flue gas	CO, CO2, O2
	Coking production	Electric coke catching safety control	CO, O2
		Analysis of Coke Dry Quenching (CDQ) Circulating Gas	CO, CO2, O2
		Coke oven gas analysis	H2S, NH3
	Other	Gas calorific value analysis	CO, CH4
		Boiler flue gas analysis	CO, O2
Petrochemical	Oil refining	Catalytic Cracking (FCC) regeneration Flue gas analysis	CO, CO2, O2
		Hydrogen production from alkanes	CO, CO2, CH4
		Sulfur recovery	O2
	Ethylene cracking	Reactor outlet, etc.	CO, CO2 etc
	EO/EG	Process gas	O2, C2H4 etc
	PE	Process gas	O2
	PP	Process gas	O2
	Ethylbenzene/styrene monomer/PS	Process gas	O2, CO/ CO2 trace water in Benzene
	PTA	Oxidation reactor control	CO, CO2, O2
	Coal gas	Process gas	O2
	Methanol/synthetic ammonia/urea	Process gas	O2, CO, CO2, NH3 etc
		Carbon ratio of urea to ammonia	NH3, CO2
	Chlor-alkali/PVC	Trace water in Cl2	H2O
		Trace water in EDC	H2O
		Synthetic cycle gas	O2, CO2, C2H4 etc
		Oxychlorination process	O2, CO2, C2H4 etc
		VCM  tail gas recycle	O2
	Hydrogen peroxide	Oxidation process	O2
	Acid production with Sulfuric	Oxidation process	O2
	TDI	Water gas	O2
Environmental protection	Flue Gas Emission	Analysis of flue gas from waste incineration	HCL, HF, CO, CO2, O2
		Flue gas denitration process control	NH3, NO, NO2
		Combustion process control	O2, CO, CO2
Cement	Cement Production	Control of the combustion process at the inlet and outlet of the rotary kiln	O2, CO, CO2
		Coal injection (mill, pulverized coal silo) safety monitoring	O2, CO
		Combustion control of preheater and cyclone heater	O2, CO, CO2
Electricity	Thermal power generation	Combustion control	O2, CO
		Coal injection (mill, pulverized coal silo) safety monitoring	O2, CO
