| Brand Name: | THV |
|---|---|
| Temperature of Media: | Medium Temperature |
| Material: | Stainless Steel |
| Pressure: | Medium Pressure |
| Standard or Nonstandard: | Standard |
| Place of Origin: | China (Mainland) |
| Media: | Water |
| Power: | Manual |
| Structure: | Butterfly |
Quick Details
Specifications
Area of application & medium
Highly corrosive chemical medium and toxic medium; Equipment purification industry; Pharmaceutical Industry; Adhesives, paper-making and fuel transportation industries; Food Industry; Paint production and processing industry;
Dangerous goods transportation industry; Moist chlorine, mining industry; Fuel transportation and storage.
Medium: Fresh water, waste water, sewage, seawater, air, vapor, food, oils, medicine, Alkali, salt and other systems

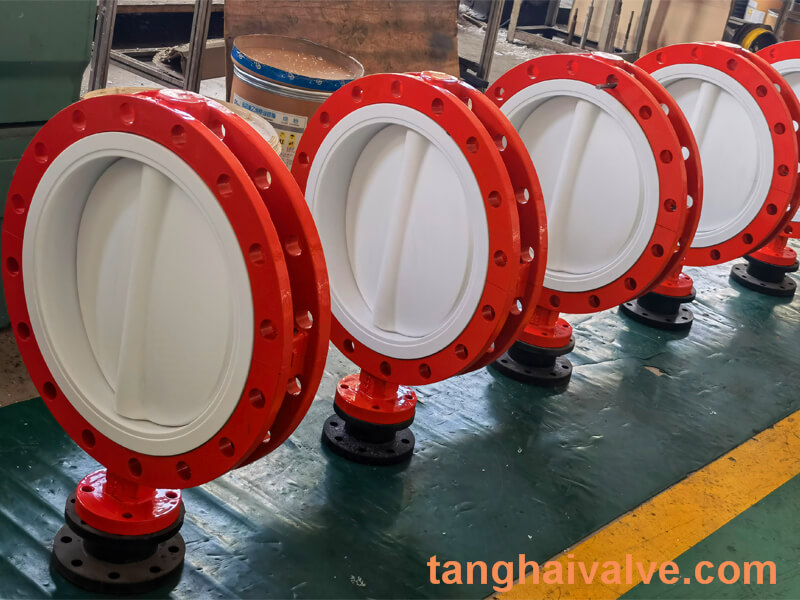

Data sheet of Fluorine lined butterfly valve:
| TYPE: | Wafer, Lug, Double flange |
|---|---|
| SIZE & CONNECTIONS: | DN50 to D1000 |
| MEDIUM: | Water, sewage, food, Oil, Steam, alkali, salt |
| MATERIALS: | Cast Iron / Ductile Iron/ Carbon Steel / Stainless Steel / Alu Bronze |
| PRESSURE RATING: | PN10, PN16, 125lb, 150lb |
| TEMPERATURE: | -40°C to 200°C |
| SEAT/LINING: | Replaceable Liner/lining PTFE /PFA /TFM /UHMWPE |
| CERTIFICATES & APPROVALS: | DNV-GL, Lloyds, DNV, ABS, BV Type Approval 3.1 & 3.2 Cert (on request) |
Standards
- Design and Manufacture Conform to API 609 /EN593 /BS5155 /MSS SP-67
- Flange Accommodation:
ASME B 16.1 125LB /150LB
BS4504 /DIN2501 /IS07005 /EN1092 PN10/16
- Top Flange: ISO 5211(or as per required.)
- Face to Face dimensions Conform to API609 /EN558-1 /DIN3202 /ISO575
- Testing Conform to API598 /ISO5208 /EN12266-1
Material of Parts
| BODY | CI/DI/CF8/CF8M |
|---|---|
| LOWER SHAFT | SS410/420/431 |
| SEAT /LINER | PTFE /PFA |
| BUTTERFLY SPRING | Spring steel |
| DISC | CF3M/CF8M+PTFE |
| UPPER SHAFT | SS304 /316 /410 |
| SEAT ENERGIZER | Silicone |
| BUSHING | PTFE /PFA |
| BOLT | SS304 /316 |
Actuation
- Hand lever
- Worm-gear/hand-wheel
- Electric-actuator
- Pneumatic-actuator
- Hydraulic-actuator
Fluorine lined butterfly valve features
- PTFE/PFA fully lined or normal lined.
- Anti-corrosive butterfly valve, suitable for toxic and highly corrosive chemical media
- after multiple sealing safety tests, there is no pollution to the environmen
- Removable split structure design;
- the insulation height meets the device regulations;
- the degree of insulation complies with the equipment regulations;
- Can be installed in any position;
- Maintenance-free
- Removable, materials can be recycled;
- the material complies with FDA standards.
- Sensitive action and good sealing performance
- the overall structureis simple and compact, beautiful appearance
- Long service lifetimeand high reliability
