Certification: | ISO |
---|---|
Weight: | 10KG |
Brand Name: | DENVERSV |

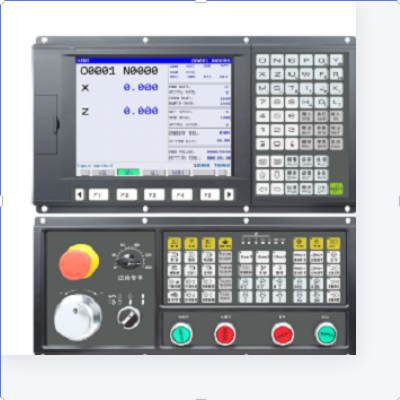

Application: | Lathe and Turning Center |
Condition: | New |
Dimension(L*W*H): | 412*205*125mm |
Model Number: | 3000T-2 |
Quick Details
Specifications
1.Brief Introduction:
Founded in 2012, Shenzhen Denver Servo Technology Co., Ltd. Is a high-tech enterprise engaged in R & D, production, sales and service of CNC system and industrial automation products. so far, the company has developed a number of series, dozens of CNC systems, and accordingly launched a variety of special machine controller, driver, motor and other supporting products, to meet the machine tool industry single axis control machinery, CNC lathe, CNC milling machine, machining center and a variety of application needs of special machinery, providing a full range of choices for different users.
2.Techincal parameters:
He highest speed: 60m/min
Feed speed: 0.001~30m/min
Continuous manual: one axis or multiple axis at the same time
Line interpolation: Straight line, arc, screw thread interpolation
Cutter compensation: Length of the compansation, radius nose of tool compensation
Cutter compensation input: Try to cut measuring input mode
Spindle function: gear, Double analog control, Rigid tapping
Handwheel function: panel, handheld
Handwheel processing: the handwheel processing function
Screen protection: the screen protection function
Tool rest function: Row tool rest, Electric too post 99 knife
Communication function: RS232, USB interface
Compensation function: Tool compansation, Space compensation, Screw pitch compensation, Radius compensation
Edit program: Metric/Imperial, Straight thread, taper thread and so on
Limit position function soft limit, hard limit
Thread function metric and inch format, straight thread, taper thread and so on
Preread function: Preread 10,000 short straight lines
Password protection: Multilevel password protection
Input/output: I/O 56*24
PLC programme: All open PLC design
Acceleration and deceleration control: Straight line, Index
Number of encoder: any setting
User macro program: Have
Electrical gear function: Have
Subpanel A type with handwheel; B type with band switch; C type with both A and B, E type
3.Performance features:
Easy to operate and fast to handle, Improve work efficiency quickly
