| Type: | Labeling Machine |
|---|---|
| Automatic Grade: | Automatic |
| Packaging Material: | Glass,Paper,Plastic |
| Packaging Type: | Bottles |
| Application: | Beverage,Chemical,Commodity,Food,Medical |
| Condition: | New |
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Certification: | CE ISO SGS |
| Weight: | 200 |
| Dimension(L*W*H): | 2800x1700x1550mm |
| Model Number: | YY-LB200 |
| Brand Name: | Yingyi |
| Place of Origin: | China (Mainland) |
| Power: | 1.5 |
| Voltage: | 220v |
| Driven Type: | Electric |
| product name: | sticker labeling machine |
| Material: | SS304 stainless steel |
| Function: | apply label to bottle |
| Speed: | 12000bph |
| Keyword: | bottle labeler |
| Warrenty: | 1 year |
| Power: | 220V/380V |
| Advantage: | high speed high accuracy |
| Other name: | Label sticking machine |
Quick Details
Specifications
Product Description:
this machine is suitable for round bottle one side labeling and flat bottles two sides labeling.
this machine can carry out accurate positioning labeling which extend its useable range,
It completely solves the problem of one machine with multiple functions for economic users and users pursuing efficiency purpase.
It adopts advanced technology and high-performance actuator servo motor,
the system carries out closed-loop control of the servo motor through the professional programmable controller of Siemens in Germany, and realizes man-machine dialogue by using the advanced friendly man-machine interface system,
the production speed of the host can reach 200 bottles per hour to achieve high work efficiency.
Product Techniquie Parameters:

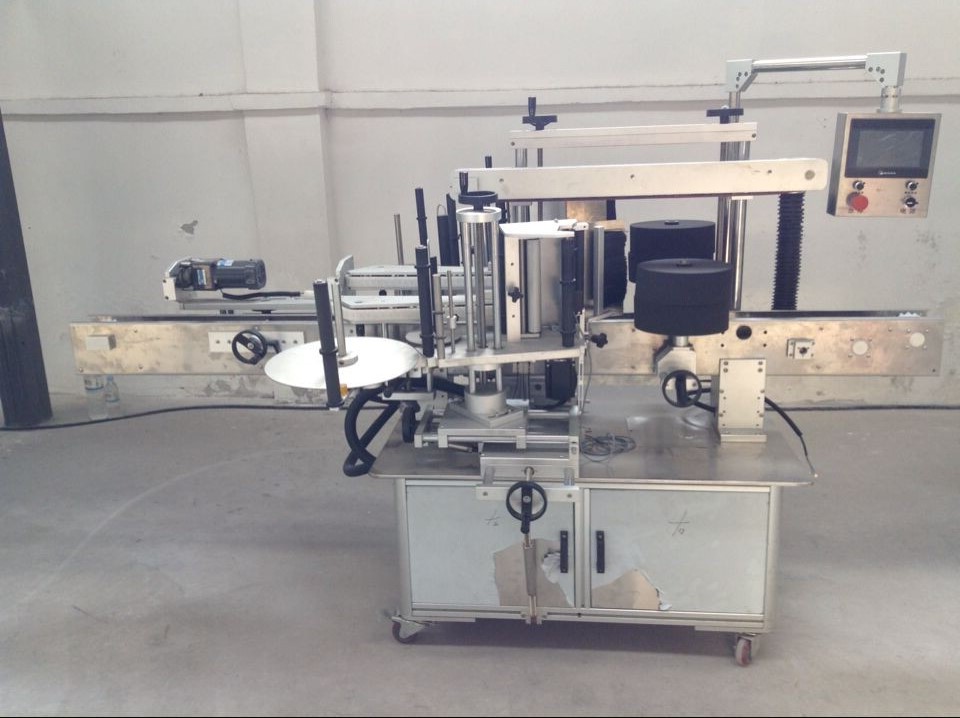

Product Photos;
this machine is suitable for round bottle one side labeling and flat bottles two sides labeling.
this machine can carry out accurate positioning labeling which extend its useable range,
It completely solves the problem of one machine with multiple functions for economic users and users pursuing efficiency purpase.
It adopts advanced technology and high-performance actuator servo motor,
the system carries out closed-loop control of the servo motor through the professional programmable controller of Siemens in Germany, and realizes man-machine dialogue by using the advanced friendly man-machine interface system,
the production speed of the host can reach 200 bottles per hour to achieve high work efficiency.
Product Techniquie Parameters:
| Description: | Adhesive Side Labeling Machine | |
| Model: | YY-DB200 | |
| Applicable bottle type | Glass bottle, plastic bottle( round and square bottles) | |
| Production speed | BPH | 50-200 |
| Accuracy(deviation allowance) | (mm) | ±1 |
| Applicable label size | (mm) | Length 20-300, Height 15-180 |
| Applicable Diameter of Bottle | (mm) | 40 mm-80mm |
| Applicable Height of bottle | (mm) | 30-200 |
| Applicable lable inner core diameter | (mm) | 76 |
| Applicable lable roll outer diameter | (mm) | 400 max |
| Voltage | (v) | 220 |
| Power | (kw) | 1.5 |
| Overall dimension | (mm) | 2800L x 1700W x 1550H |
| Weight | (kg) | 200 |

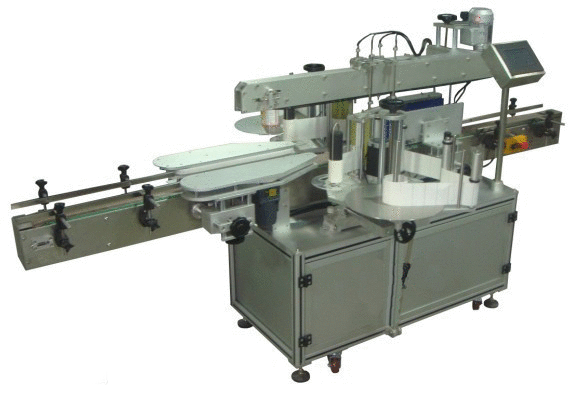

Product Photos;
