| Type: | Labeling Machine |
|---|---|
| Automatic Grade: | Automatic |
| Packaging Material: | Glass,Paper,Plastic, |
| Packaging Type: | Bottles |
| Application: | Beverage,Chemical,Commodity,Food,Medical |
| Condition: | New |
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Certification: | CE ISO SGS |
| Weight: | 1200kg |
| Dimension(L*W*H): | 2300x1300x1800mm |
| Model Number: | YYRRJ6000 |
| Brand Name: | Yingyi |
| Place of Origin: | China (Mainland) |
| Power: | 8kw |
| Voltage: | 220v |
| Driven Type: | Electric |
| product name: | hot melt glue labeling machine |
| Material: | SS304 stainless steel |
| Function: | apply label to bottle |
| Speed: | 6000bph |
| Keyword: | bottle labeler |
| Warrenty: | 1 year |
| Power: | 220V/380V |
| Advantage: | high speed high accuracy |
| Other name: | label application machine |
Quick Details
Specifications
Production Description:
1.the label cutting blade is easy to adjust
2. the vacuum standard suction wheel is made of high hardness material; Adoped wrinkle treatment program which can reduce label friction and prevent static electricity
3.the replacement of compatible parts can be completed quickly and efficiently within 10 minutes
4. the blade position can be accurately and conveniently adjusted by using the manual operation panel
5.the vacuum standard suction wheel and the lower part of the label cutting part are made of wear-resistant and anti heating special materials
6. When the label length is changed, the automatic adjustment button can automatically adjust the i-mark position
Product Technique Parameters:

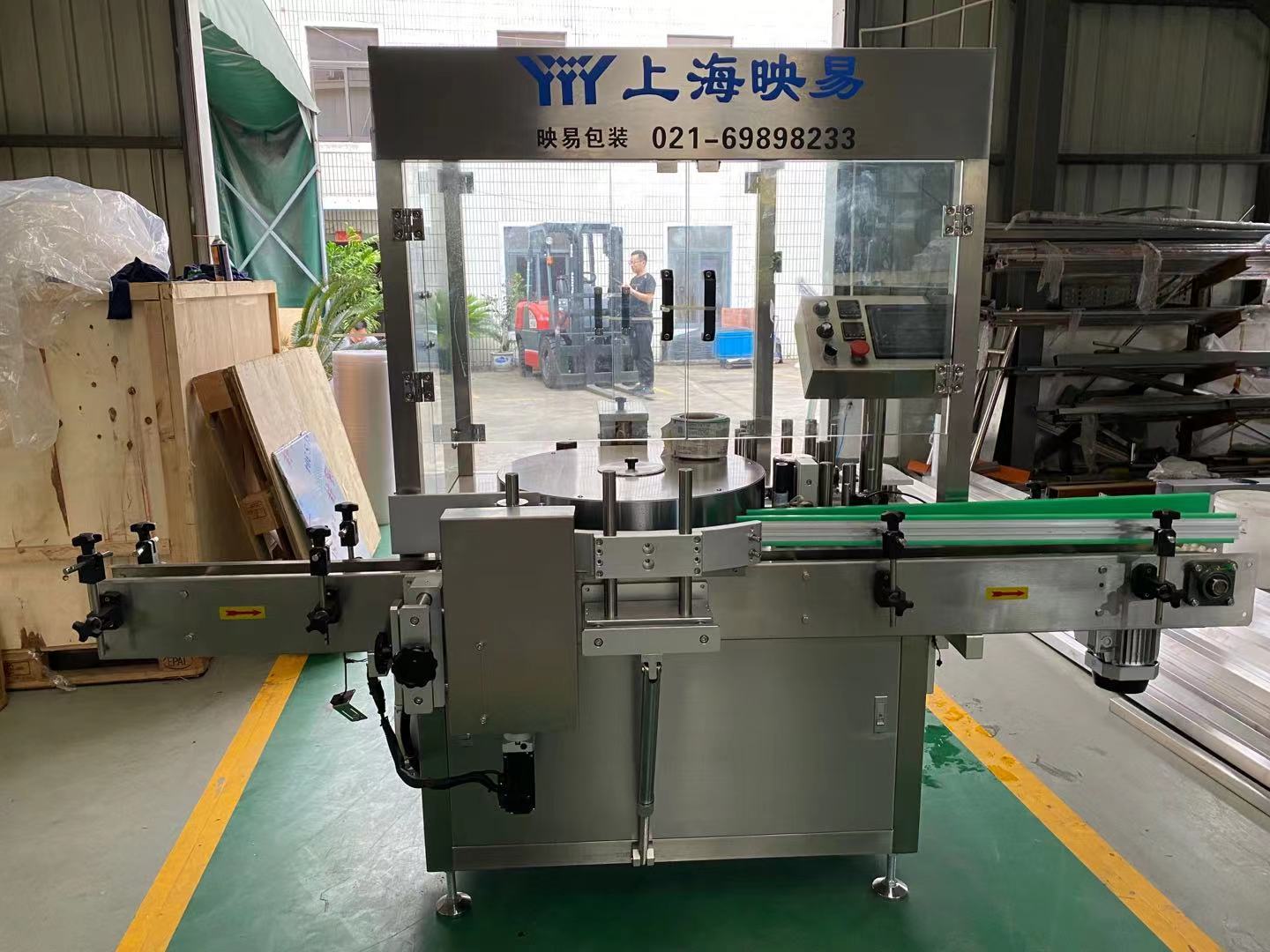

Product Photo:
1.the label cutting blade is easy to adjust
2. the vacuum standard suction wheel is made of high hardness material; Adoped wrinkle treatment program which can reduce label friction and prevent static electricity
3.the replacement of compatible parts can be completed quickly and efficiently within 10 minutes
4. the blade position can be accurately and conveniently adjusted by using the manual operation panel
5.the vacuum standard suction wheel and the lower part of the label cutting part are made of wear-resistant and anti heating special materials
6. When the label length is changed, the automatic adjustment button can automatically adjust the i-mark position
Product Technique Parameters:
| Model | YYRRJ6000 | YYRRJ12000 | YYRRJ24000 | |
| Labeling speed | bph | 6000 | 12000 | 24000 |
| Label material | OPP/pearl film /composite paper | |||
| Accuracy | mm | ±0.5 | ||
| Label size | mm | L20-300, H10-180 | ||
| Bottle size | mm | 40-80, H30-200 | ||
| Label roll inner diameter | mm | 150 | ||
| Label roll outter diameter | mm | 500 max | ||
| Voltage | V | 220 / 380 | ||
| Power | Kw | 8 | 9 | 10 |
| Air compressed pressur | bar | 0.5 Min, 0.8 Max | ||
| Air consumption | M3/min | 0.2 | ||
| Overall Dimension | mm | L2300xW1300xH1800 | L2600xW18300xH2050 | L3150xW1800xH2100 |
| Weight | kg | 1200 | 1400 | 2000 |
Product Photo:
