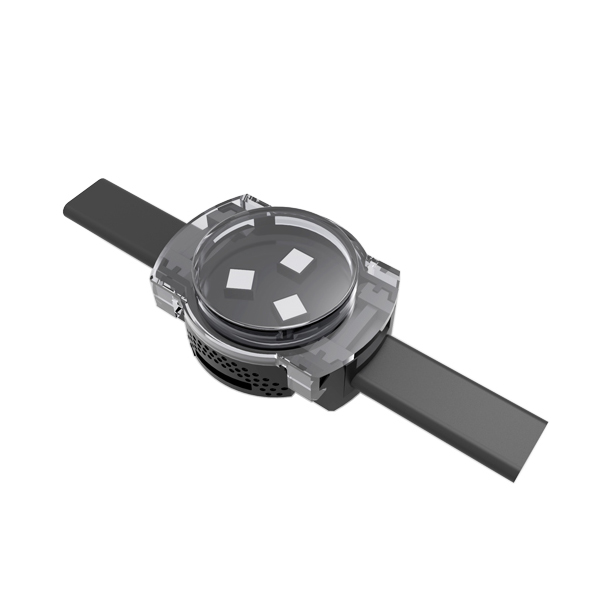

EXC-P33GP1 full-color series is a full-color LED series LED pixel string, which are designed for outdoor landscape lighting by EXC-LED. Each EXC-P33GP pixel is a separate 8bit/16bit grade grayscale changing. They can be used for indoor and outdoor applications, Customized pixel pitch, and easy installation.

Specification Optical Parameters of LED Pixel Light 1W EXC-P33GP
LED Brand: CREE, Lumileds, Epistar, Taiwan series, Osram

Color:  RGB, RGB+W, W, etc

Beam Angle: 120degree, Open beam, and other angles optional

Source Life: 50,000h

Electrical Parameters of LED Pixel Light 1W EXC-P33GP
Working Voltage: DC12/15V

Rated Power: Maximum: 0.9W/1W

Control Parameters of LED Pixel Light 1W EXC-P33GP
Control Method: DMX512/On off

Gray Scale: 8Bits/16Bits

Control System: EXC-ALL the LED pixel string lights control system

Structural Parameters of LED Pixel Light 1W EXC-P33GP
Shell Material: PC

Surface Color: Black&White, Other colors optional

Structure Size: 40.5mm x 32.5mm x 17mm (L x W x H, exclude Mounting Bracket)

Total Weight: 24g

Environmental Parameters of LED Pixel Light 1W EXC-P33GP
Working Temperature: -40°C to 50°C

Storage Temperature: -40°C to 65°C

Protection rating: IP66

Application environment: Outdoor
