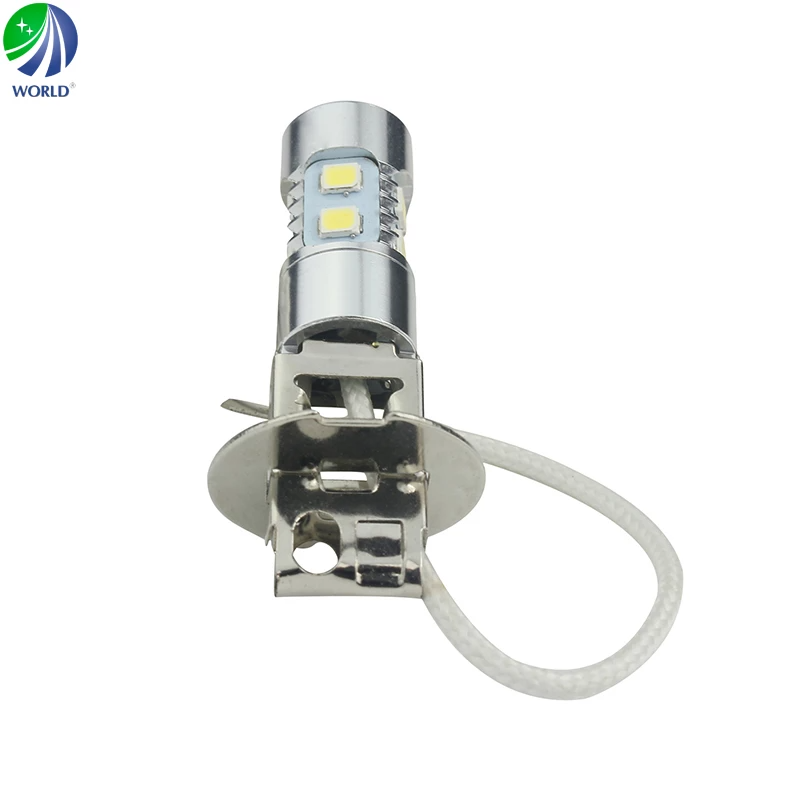

Model:H3C10W-HC

LED QTY:10PCS ultra bright SMD2835

Color:White/Red/Yellow/Blue/Green

Voltage:9-30V DC

Lumen:170lm

Current:120mA

Wattage:1.6W

Size:12*55mm

Constant current voltage stabilization, decoding anti-alarm, energy saving and power saving

Built-in constant current

Decoding driver

Decoding anti-alarm

Overload and overcurrent protection function to ensure normal operation

World LED Car Bulb Material advantage:

1.High power LED beads are from USA KERUI,Netherlands Feilipu,Germany and OUSILANG. SMD beads are from Taiwan Jingyuan.

2.the resistor,capacitance and electrical inductance,it is imported from Japan Murata and TDK.

3.Driver constant IC are imported from PI/TI USA PT4205.

4.We use 70mil big IC rectifier bridge which imported from Japan Murata and TDK.

5.Diode are used from Taiwan military level SS54.

6.We use double painted aviation grade aluminum PCB on high power LED car

Bulb,like Kerui,Feilipu.and double painted fiberglass PCB on low power LED car bulb.Aluminum aviation grade PCB thickness is 2mm.Fiberglass PCB thickness is 1.6mm and 1mm.

7.We use gold wire pure copper bracket lamp beads.High efficient heat dissipation.

8.We use the most expensive thickening red copper as 1156/1157/BA9S socket.

9.Lens are HD high temperature resistant spotlight lens.

10.T10/T20/T25 socket are high temperature resistant plastic base.

the features of LED car lights are as follows:

1. It has an ultra-long lifespan. It has no filament structure and is not afraid of fatal driving vibration. It can be used for more than 60,000 hours in a normal environment. Generally, it does not need to be replaced during the life of the vehicle;

2. Pure chromaticity: no need to filter the lampshade, the light wavelength error is small, and the color is bright.

3. LED has low power consumption. When it reaches the same brightness of traditional light bulbs, it consumes only 6% of traditional light bulbs. the heat generation is low, and it also saves electricity and fuel!

4. There is no delay when the LED lights up, while the traditional glass bulb has a delay of 0.3 seconds.

5. High LED luminous brightness: 1W lamp is equivalent to the brightness of traditional5W car lamp. It is produced in strict accordance with normal car lamp specifications and can directly replace the traditional glass bulb lamp of the original car.

6.Works for DRL,daytime running lights,turn signal,backup reverse lights,tail bulbs,brake lights etc.
7. SMD2835 LED chips,which will provide a perfect beam pattern,high light output,low power consumption.
8.European and newest vehicle equipped with CAN-BUS system may require load resistors to bypass the error codes/flicker issue when intall as turn signal and brake lights.

9.Low current,low power consumption,high brightness and long life span.

Socket Type:H3

this item fits for these sockets:H3

Note:Please confirm your socket before making an order. Thank you.
