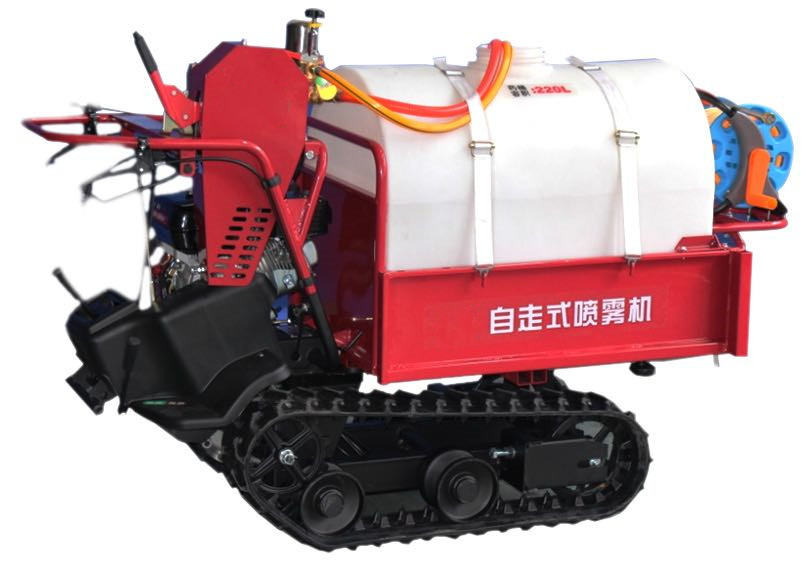

| WM3WZ-220C Self-propelled Spray Sterilizer |
|
|
Item |
Unit |
Parameter |
| 1 |
Overall dimension |
mm |
1800X650X1120 |
| 2 |
Cargo compaetment outside dimnension |
mm |
840X570X290 |
| 3 |
Product weight |
kg |
≤198 |
| 4 |
Max loading weight |
kg |
320 |
| 5 |
Track knobs |
Knobs |
37 |
| 6 |
Width of track |
mm |
160 |
| 7 |
Center distandce of track |
mm |
410 |
| 8 |
Minimum ground clearance |
mm |
130 |
| 9 |
Minimum radius of turning circle |
m |
1.15 |
| 10 |
Max climbing degree (full loading) |
° |
≥25 |
| 11 |
Cargo's operation |
/ |
Manual flip |
| 12 |
Flip angle |
° |
≥50 |
| 13 |
Engine |
Engine model |
/ |
WM168FA/P |
| 14 |
Engine tyoe |
/ |
Single cylinder, 4 stroke, foreced air cooling diesel engine |
| 15 |
Rated power |
Kw |
3.6Kw |
| 16 |
Starting |
/ |
Recoil |
| 17 |
Power transmission |
Clutch type |
/ |
Belt transmission |
| 18 |
Variable speed primary and secondary |
/ |
6 forward and 2 reverse gear |
| 19 |
Turning transmission |
/ |
Internal unilateral braking steering |
| 20 |
Brake type |
/ |
Internal expanded brake |
| 21 |
Sprayer |
Sprayer specifications |
/ |
26 type three cylinder plunger pump |
| 22 |
Rated pressure |
Mpa |
23.5 |
| 23 |
Rated flow |
L/min |
14?22 |
| 24 |
Rated rotating speed |
R/min |
8?12 |
| 25 |
Water tank capacity |
L |
220 |
| 26 |
Spray range |
m |
10 |
