Specifications

Product Parameter:

6W UK AC Plug Switching Power Supply

Specification Parameter:

1,Input condition:
     Rated input voltage: 100V-240V AC
     Input voltage range: 90V-264V AC
     Rated input frequency: 50/60Hz  +/-3Hz

2,Output Characteristics:
     Rated output power: 6W  Max
     Output voltage range: 3-15Vdc
     Output voltage error range: +/-5%
     Output current range: 0.1-1.2A

3,Protection Function:
    (1). Short-circuit current protection;
    (2). Overvoltage protection;
    (3).Overcurrent protection;

4,Environment Requirements:
     Operating Temperature: 0C to +40C
     Operating Relative Humidity: 0%RH to 90%RH
     Storage Temperature: -20C to +80C
     Storage Relative Humidity: 5%RH to 95%RH non-condensing

5,Product Features:
    (1). High temperature fire resistant and flame retardant shell material is used.
    (2). Voltage stabilization mode;
    (3). IC electric design, stable performance, safe and reliable;
    (4). High efficiency, low no-load power consumption, energy saving and environmental protection;

6. Parameter List:

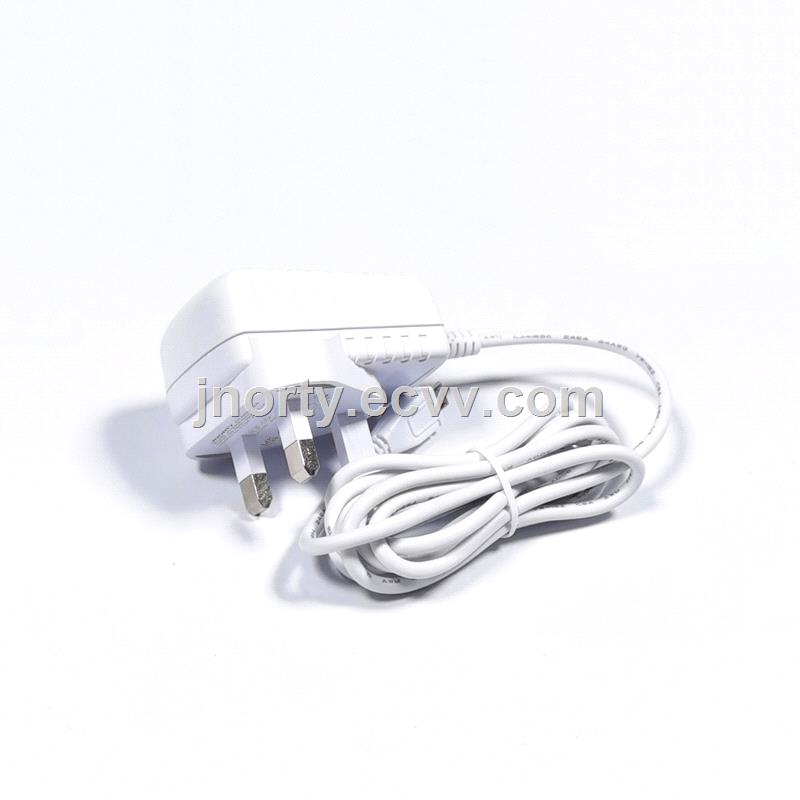

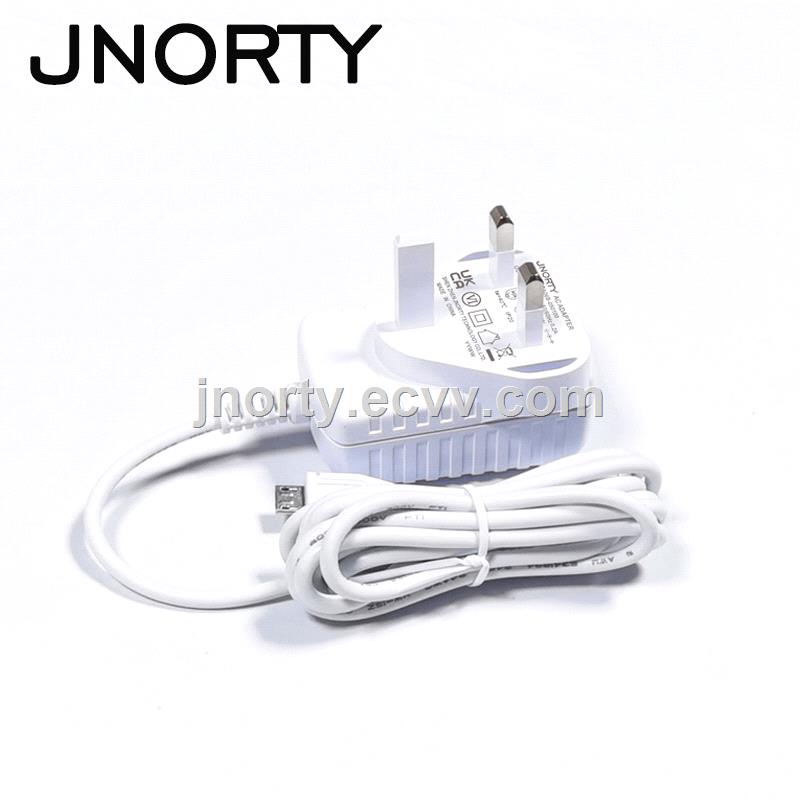

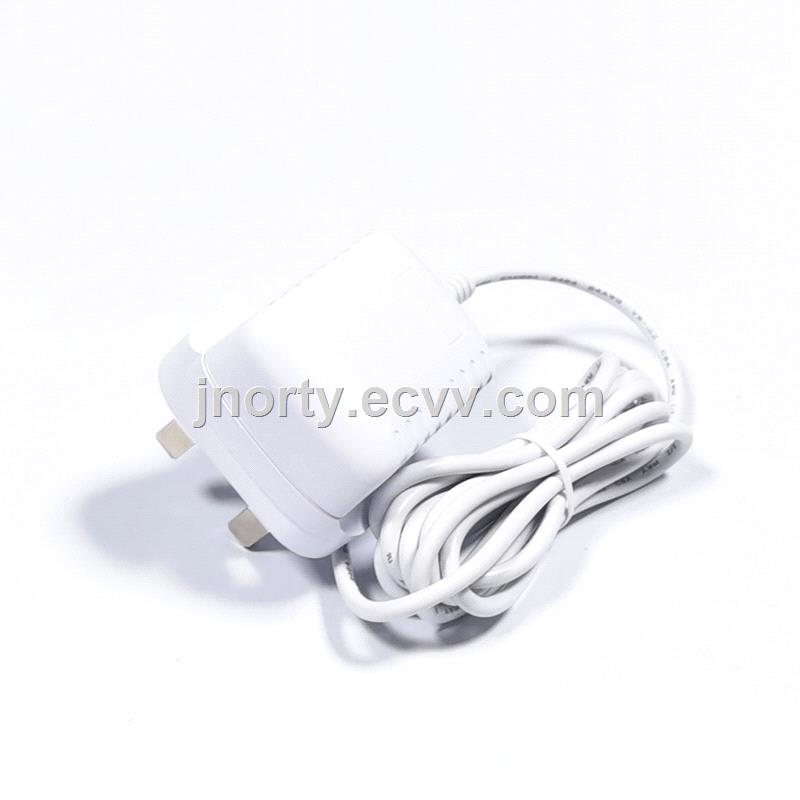

Product Picture:
