| Standard configuration |
| Screen |
| Display Type |
12.1" color TFT LCD |
| Resolution |
800600 pixels |
| Waveforms |
up to 7 |
| ECG |
| Input |
3/5 wire ECG cable |
| Lead section |
I II III aVR, aVL, aVF, V |
| Gain selection |
*0.25, *0.5, *1, *1.2 |
| Sweep speed |
6.25mm/s, 12.5mm/s, 25mm/s, 50mm/s |
| Heart rate range |
15-30bpm |
| Calibration |
±1mv |
| Accuracy |
±1bpm or ±1% (select the bigger data) |
| NIBP |
| Test method |
Oscillometer |
| Philosophy |
Adult, Pediatric and Neonate |
| Measurement type |
Systolic Diastolic Mean |
| Measurement parameter |
Automatic, Continuous measurement |
| Measurement method Manual |
MmHg or ±2% |
| SPO2 |
| Display Type |
Waveform, Data |
| Measurement range |
0-100% |
| Accuracy |
±3% (between 70%-100%) |
| Pulse rate range |
20-300bpm |
| Accuracy |
±1bpm or ±2% (select the bigger data) |
| Resolution |
1bpm |
| 2-Temperature (Rectal & Surface) |
| Number of channels |
2 channels |
| Measurement range |
0-50C |
| Accuracy |
±0.2C |
| Display |
T1, T2, T |
| Unit |
C/F selection |
| Refresh cycle |
1s-2s |
| Respiration (Impedance & Nasal Tube) |
| Measurement type |
0-150rpm |
| Accuracy |
±1bm or ±5%, select the bigger data |
| Resolution |
1rpm |
| Optional configuration |

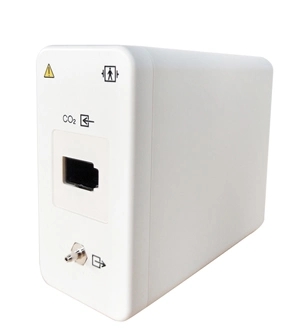

| EtCO2-Plug & Play |
| Measurement type |
Side stream |
| Measurement range |
0-10.0%; 0-76mmHg |
| Accuracy |
<5.0%, ±0.28kPa; ±2mmHg |
| >5.0%, ±10% |

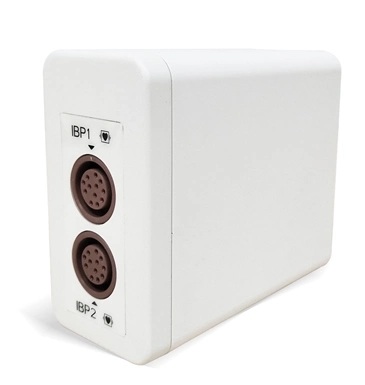

| 2-IBP (optional) |
| Measurement range |
10~300mmHg |
| Number of channels |
1 or 2 channels |
| Accuracy |
±1mmHg or ±2%, select bigger data |
| Pressure tag |
ART, CVT, RVP, LAP, RAP, PAP, ICP, LVP |
| 12 leads ECG (optional) |
| Input |
3/5/10 wires ECG cable |
| Lead section |
I, II, III aVR, aVL, aVF, V(V1-V6) |
| Heart rate range |
15-380bpm |
| Calibration |
±1mv |
