QINGDAO HECHENG CENTURY METAL TECH CO.,LTD., possesses a high-quality team in professional research, product manufacture and marketing. since the foundation of our company, we have researched and produced a series of glass equipment.
We successfully promote products to glass industry, relying on good reputation, top-ranking services, senior industrial experience and abundant technical strength. the general professional knowledge of glass equipment makes a solid foundation for future challenge.
QINGDAO HECHENG CENTURY METAL TECH CO.,LTD., insists on the philosophy of "Integrity is Gold, the Way of Operation'and insists on the direction of "creative development and hard work' for the simultaneous realization of both economic and social benefits.

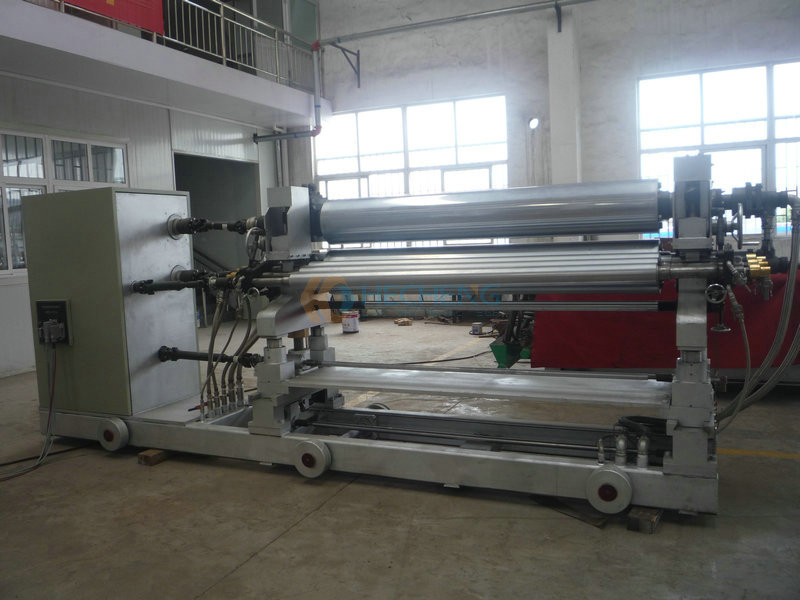

HCY-1400 Calender Machinery
I.Use
    HCY-1400 calender unit is to be improved on the basis of domestic and foreign similar calender, having a more rational structure, high degree of automation.
   HCY-1400 calender unit is suitable for ultra-white embossed glass and ordinary embossed glass production and processing.
II. Performance and parameter
1, Application of plate width
   for rolled plate glass 1400mm in width;
   the fuselage shape size(mm): 2800*1800*2300
   Weight:6500kg
2, Power device
   Calendering machine main motor model R107DV132S4/VS/TF
   Motor Power 5.5KW
   Motor reduction ratio 141.28
   Motor output speed 9.9r/min
   Motor operating voltage 380V/660V/50HZ
   Walking calender motor model Y90L-4
   Motor Power 1.5KW
   Motor speed 1400r/min
   Motor voltage 380V
   Reducer Model WPDA Specifications 100
   Gear ratio 1:40
   Walking speed 9M/min
   Calender lateral movement motor model Y90S-4
   Motor Power 1.1KW
   Motor speed 1400r/ min
   Motor voltage 50Hz Reducer Model NMRV Specifications 063
   Gear ratio 1:20
   Translational velocity 30mm/min
3, Various body dimensions, motor selection, the upper and lower rollers specifications designed according to user requirements.

HCY-2400 Calender Machinery
I. Use
    HCY-2400 calender unit is to be improved on the basis of domestic and foreign similar calender, having a more rational structure, high degree of automation.
   HCY-2400 calender unit is suitable for ultra-white embossed glass and ordinary embossed glass production and processing.
II. Performance and parameter
1, Application of plate width
   for rolled plate glass 2400mm in width;
   the fuselage shape size(mm): 3820*1820*2200
   Weight: 8500kg
2, Power device
   Calendering machine main motor model R107DV132S4/VS/TF
   Motor Power 5.5KW
   Motor reduction ratio 141.28
   Motor output speed 9.9r/min
   Motor operating voltage 380V/660V/50HZ
   Walking calender motor model Y90L-4
   Motor Power 1.5KW
   Motor speed 1400r/min
   Motor voltage 380V
   Reducer Model WPDA Specifications 100
   Gear ratio 1:40
   Walking speed 19m/min
   Calender lateral movement motor model Y90S-4
   Motor Power 1.1KW
   Motor speed 1400r/ min
   Motor voltage 50Hz Reducer Model NMRV Specifications 063
   Gear ratio 1:20
   Translational velocity 30mm/min
III. Various body dimensions, motor selection, the upper and lower rollers specifications designed according to user requirements.
