Quick Details

Brand Name: BENEMED
Type: Visual Acuity Examination Apparatus
Display type: ECG601
Specimen: 32*25*17cm
Accuracy: yes
Model Number: ECG601
Place of Origin: China (Mainland)

Specifications

Features:

  1. 7 inch high resolution color touch screen
  2. 12-lead simultaneous acquisition and display
  3. ECG Automatic measurement and interpretation function
  4. Complete digital filters, resisting baseline drift, AC and EMG interference
  5. Compact and Lightweight design
  6. Support USB flash disk and micro SD card to extend memory
  7. Software upgrade via USB/SD card
  8. Built-in rechargeable Li-ion batter
Specification:

Items
 		  Specification:

Lead
 		 Standard 12 leads
Acquisition Mode Standard 12 leads acquisition
Measurement Range ±5mmVpp
Input circuit Floating; Protection circuit against Defibrillator effect
Input Impedance ≥ 50MΩ
Input circuit current < 0.05uA
Record mode Automatic:3CH4+1R,3CH4, 3CH2+2CH3.3CH2+2CH3+1R,6CH2:
  Manual: 3CH, 2CH,3CH+1R,2CH+1R,
  Rhythm: Any lead seleclable
Filter EMG Filter: 25Hz/ 30Hz/  40Hz/ 75Hz/ 100Hz/ 150Hz
  DFT Filter: 0.05Hz/0.15Hz
  AC Filter: 50Hz/60Hz,
CMRR  >100dB
Patient leak current <10uA(220V-240V)
Frequency Response 0.05Hz-150Hz(-3dB)
Sensitivity 2.5mm/mV,  5mm/mV,  10mm/mV,  20mm/mV,(error ±5%)
Arti-baseline Drift Automatic
Time constant  ≥ 3.2s
Noise level <15uVp-p
Paper speed 12.5mm/s, 25mm/s,50mm/s,
Recording mode Thermal printing system
Paper specification Roll 110Mm*20M
Safety Standard IEC NCF
Sample Rate Normal: 1000sps/channel
Power Supply AC: 100-240V, 50/60Hz, 30VA-100VA
  DC: 14.8V/2200mAh,Built-in lithium battery

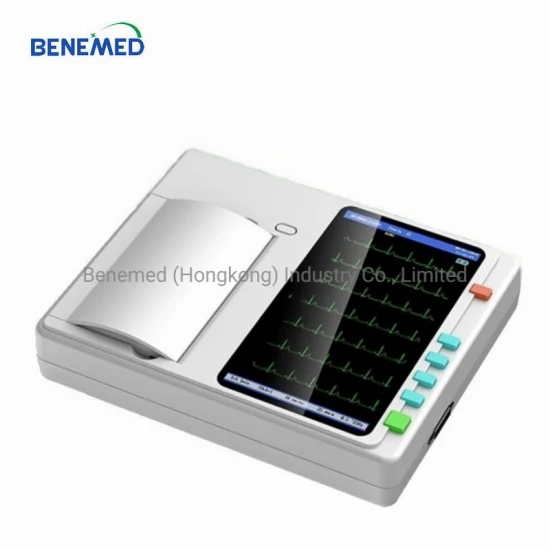

6 Channel Portable ECG Machine Electrocardiograph ECG601
