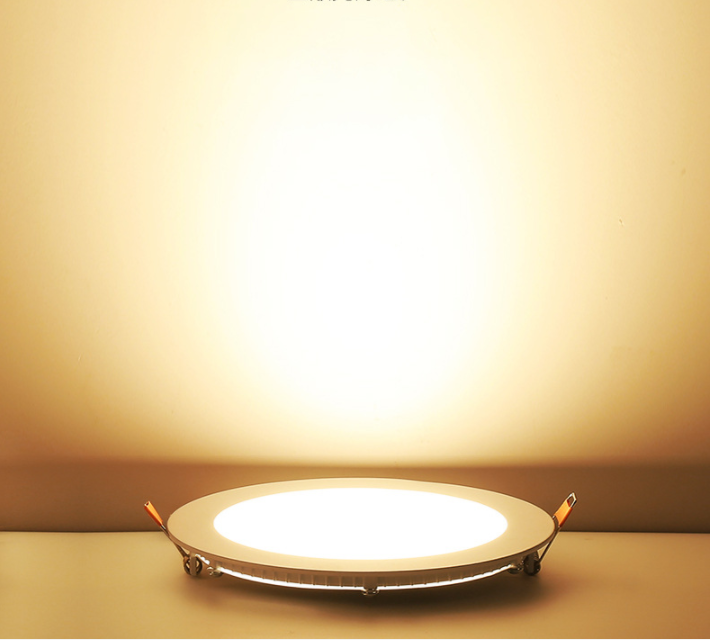

Item Type: | Panel Lights |
---|---|
Light Source: | LED |
Brand Name: | SKS |
Certification: | CCC,CE |
Lamp Body Material: | Aluminum |
CRI (Ra>): | 70 |
Lamp Power(W): | 3 |
Model Number: | SKS-MB01 |
Place of Origin: | China (Mainland) |
Working Lifetime(Hour): | 30000 |
Color Temperature(CCT): | Warm White |
Lamp Luminous Efficiency(lm/w): | 70 |
Input Voltage(V): | 175-265v |
Warranty(Years): | 1 |
LED Light Source: | SMD2835 20-24lm/w |
Shell color: | WHITE |
Quick Details
Specifications

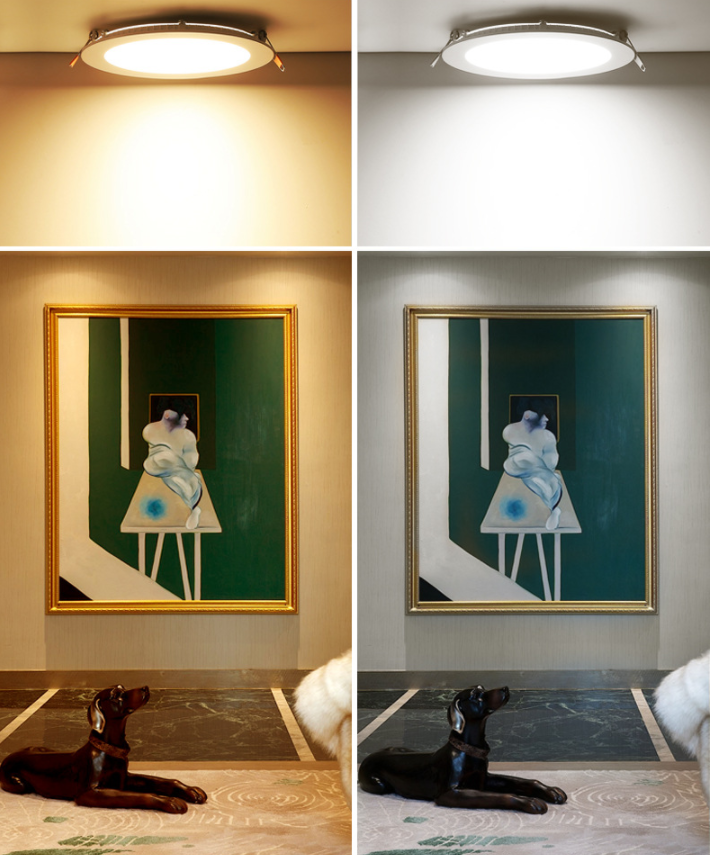

Color Temperature(CCT): Warm3000K, Nature white4000K, White6000K
Color Rendering Index(Ra): 70
Support Dimmer: No

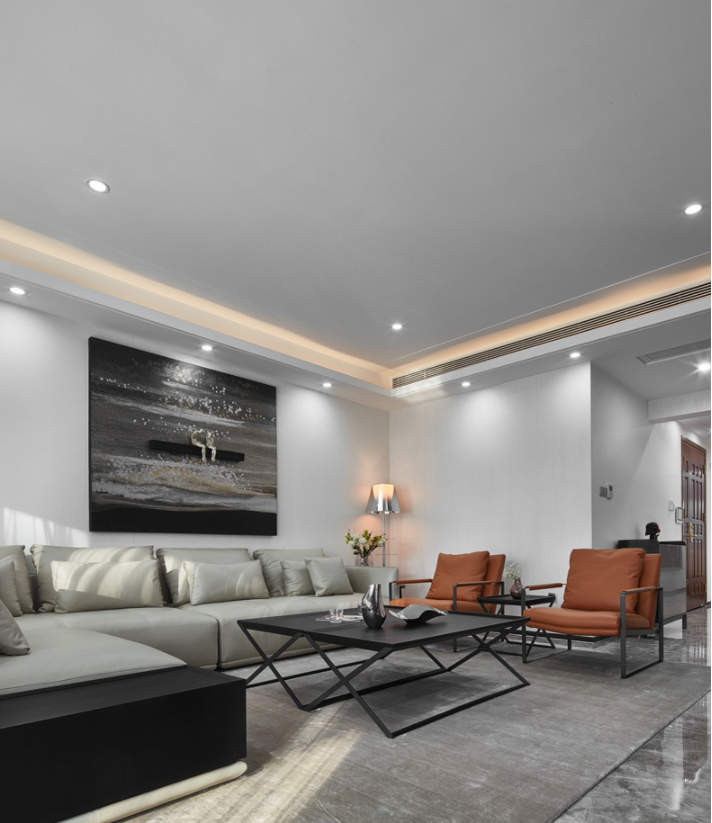

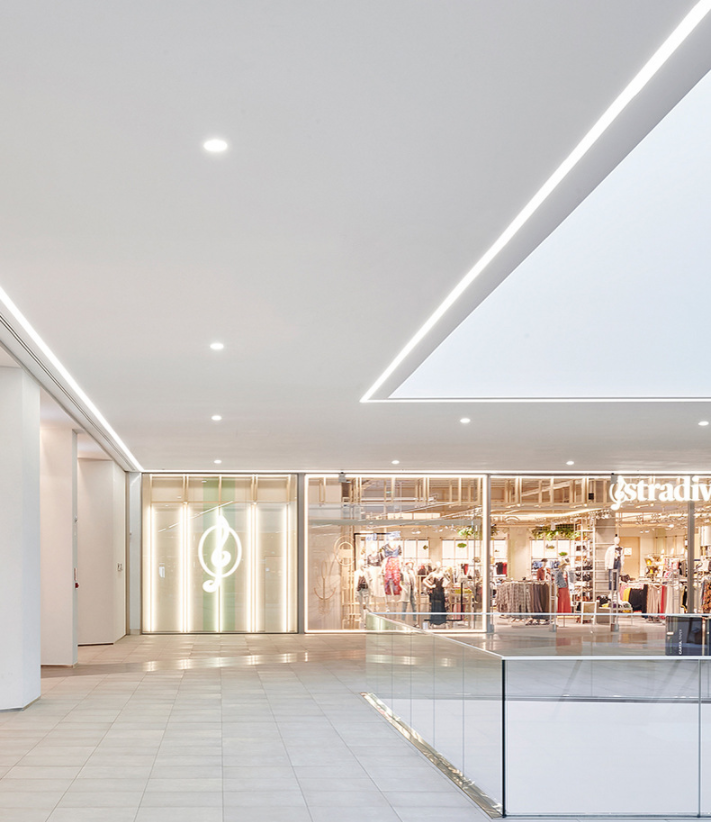

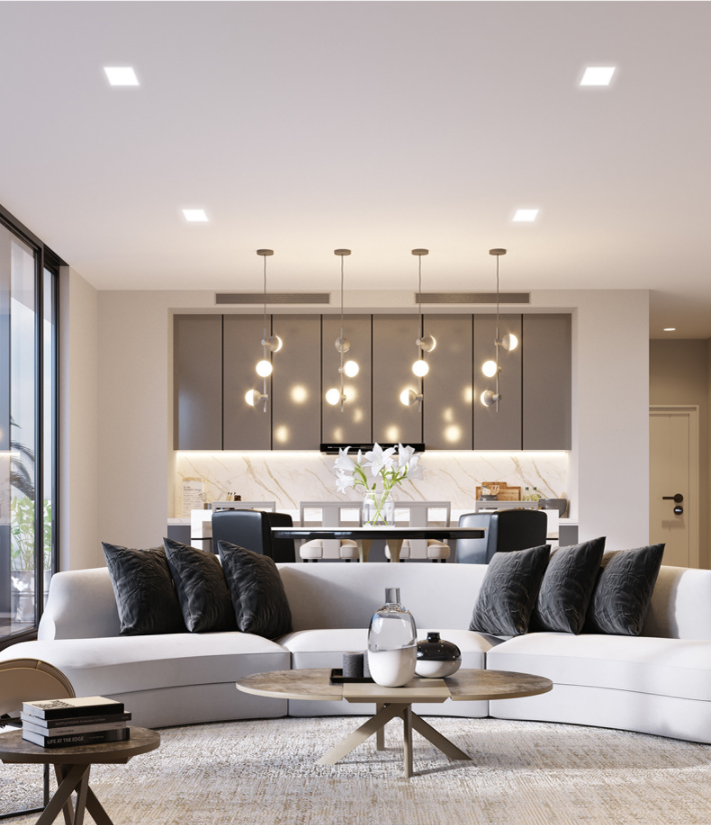

Application:HIndoor scene: Home, office buidling, shopping mall&store, and hotel
Design Style:Minimalist, Ultrathin
Lamp Luminous Efficiency(lm/w): 70lm/w
Luminous flux:300(LM)
Lamp Body Material: Aluminium
Support Dimmer: Customize
Place of Origin:Guangdong, China
Brand Name:SKS
Model Number:SKS-MB01
Switch Type: Touch on/off Switch
Light Source:SMD2835 20-24lm/w
CRI (Ra>): 70
Warranty(Year):1-Year
Lifespan (hours):30000(h)
Wattage: 3W,5W,7W,9W,12W,15W,18W,24W
Beam angle: 120°
Color: White; Warm; Warm white
Voltage:175-265v
DRIVER:Isolated

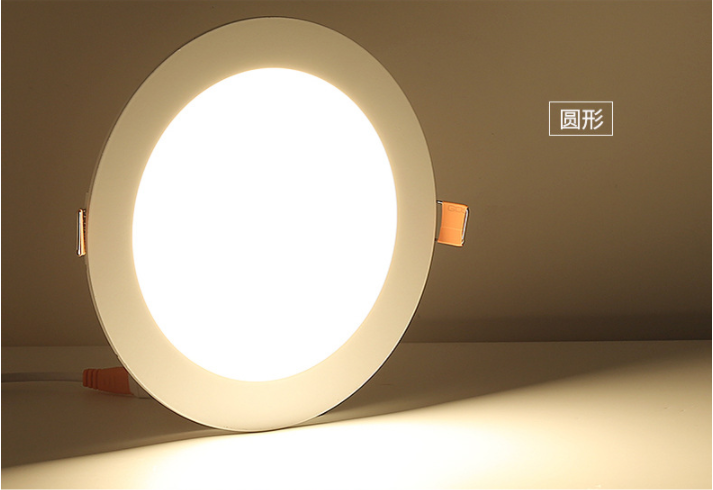

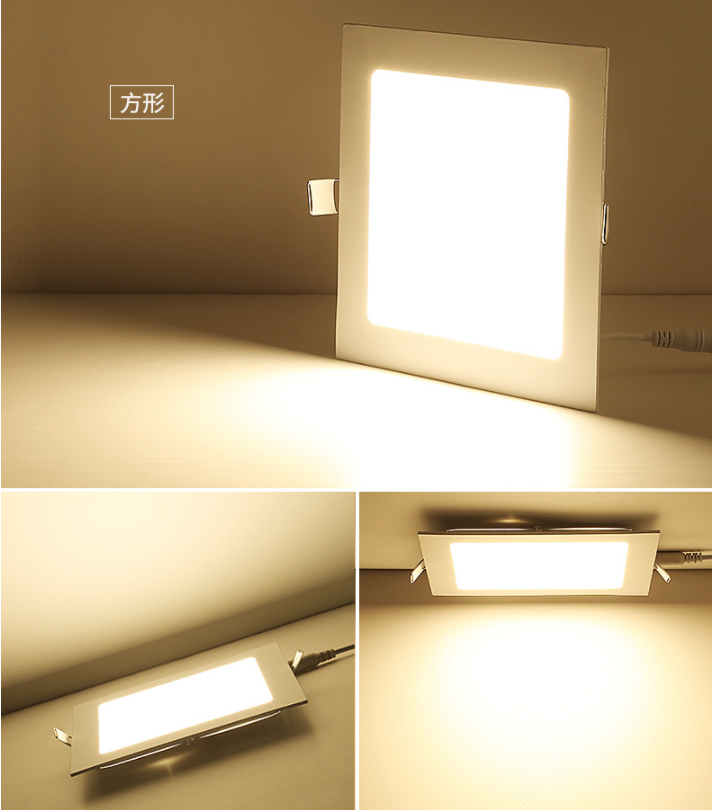

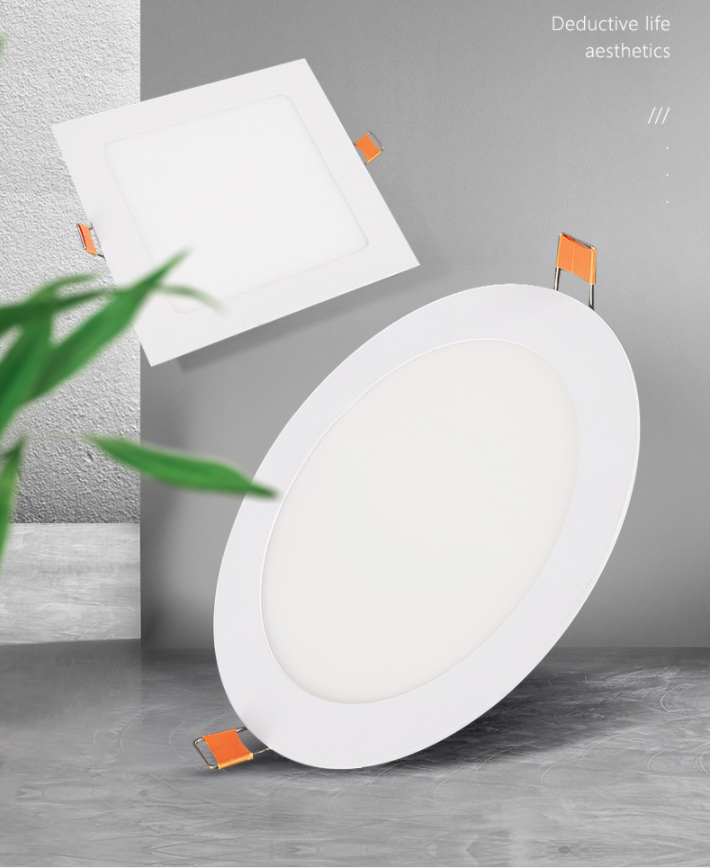

Shape:Round,SQUARE
Certification:CE, CCC

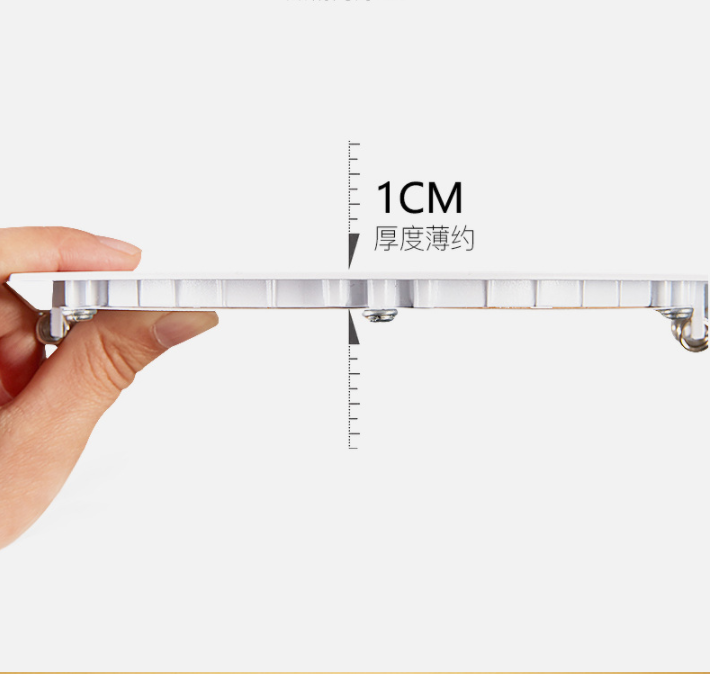

inch | Wattage | Plane diameter(mm) | Wall opening(mm) | H(mm) | R.W/PCS(KG) | S.W/PCS(KG) | BOX DIM(cm) | QUANTITY(pcs) | CARTON DIMS(cm) |
2.5inch | 3W | 85 | 75 | 10 | 0.12 | 0.15 | 9.8*3.5*14 | 100 | 50.5*36.5*29.5 |
3inch | 4W | 105 | 95 | 10 | 0.17 | 0.2 | 12.5*3.5*17 | 100 | 64*36.5*35.5 |
3.5inch | 6W | 120 | 105 | 10 | 0.18 | 0.2 | 12.5*3.5*17 | 100 | 64*36.5*35.5 |
4inch | 9W | 150 | 135 | 10 | 0.2 | 0.23 | 17.5*3.0*22 | 40 | 35.5*31.5*45.5 |
5inch | 12W | 170 | 155 | 10 | 0.26 | 0.3 | 17.5*3.0*22 | 40 | 35.5*31.5*45.5 |
6inch | 15W | 190 | 175-180 | 10 | 0.32 | 0.35 | 22.8*3.0*26.3 | 40 | 47.5*31.5*54.5 |
8inch | 18W | 220 | 205 | 10 | 0.43 | 0.48 | 22.8*3.0*26.3 | 40 | 47.5*31.5*54.5 |
10inch | 24W | 300 | 275 | 10 | 0.74 | 0.64 | 31*3.0*34 | 20 | 63.5*31.5*35.5 |
