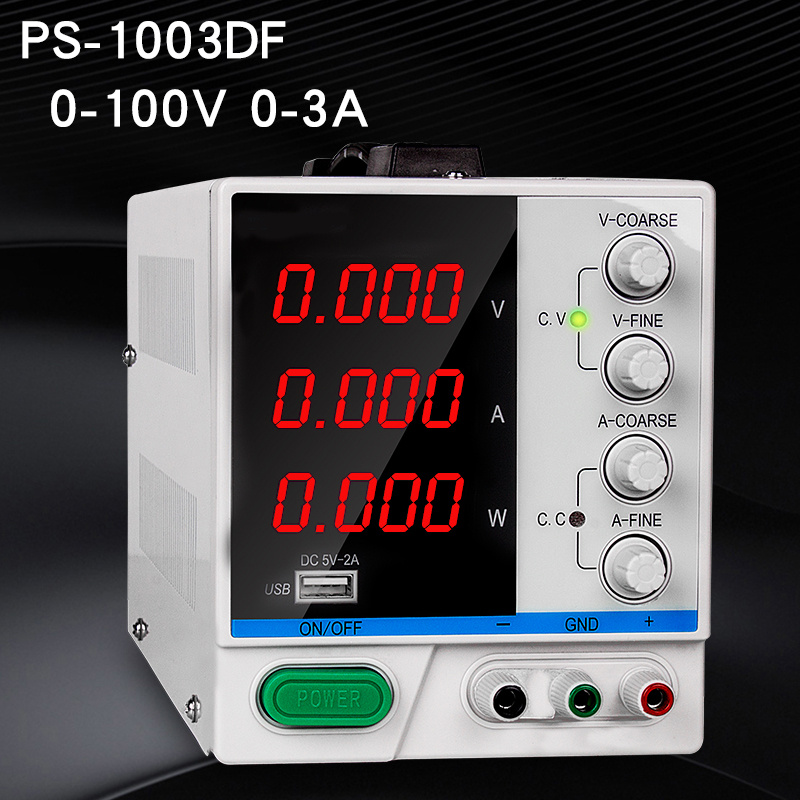

Adjustable 100V 3A LED 4 Digital Display Switching Voltage Current Wazz Regulator DC Power Supply
SPecifications:

 1. Rated working conditions and dimensions:

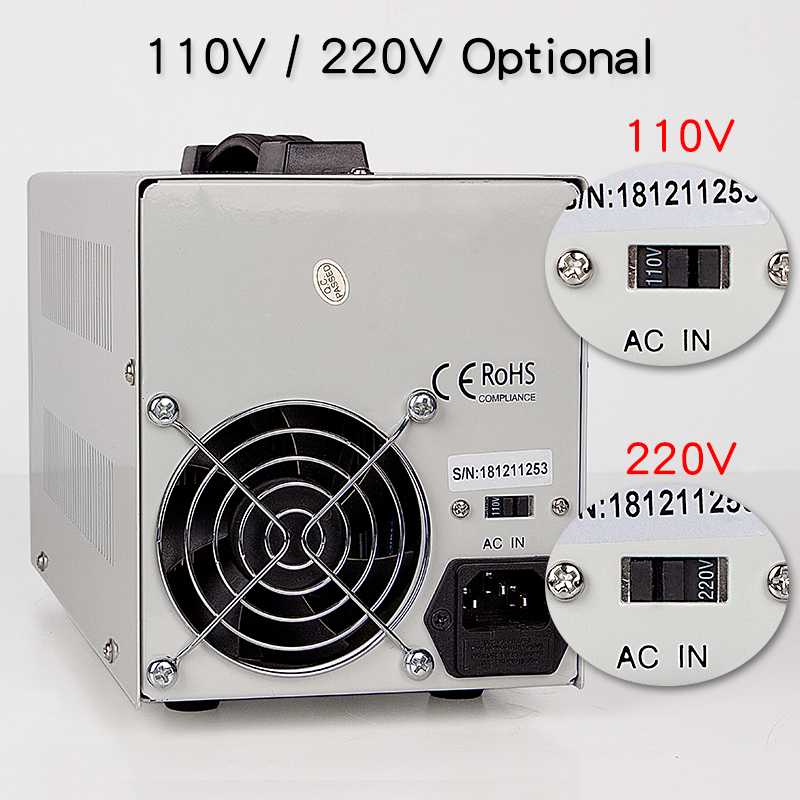

    Input voltage: 220V±10%@50Hz, or 110V±10%@60Hz, manual switching

    Working environment: Temperature: -10 ° C ~ 40 ° C Relative humidity: <80%

    Storage conditions: Temperature: -20 ° C ~ 80 ° C Relative humidity: <70%

    Dimensions: 285x128x145mm

2. Power supply effect:

CV≤0.1%+10mV

CC≤0.1%+10mA

3. Load effect:

      CV≤0.1%+5mV

      CC≤0.1%+10mV

4. Ripple and noise:

CV≤10mV r.m.s.

CC≤20mA r.m.s.

5. display mode accuracy:

 4-digit LED digital display, display accuracy ±0.1% ± 1 word

PRotection function:

1. Current limitation protection

2. over voltage protection

3. over load protection

       4. over temperature protection

FEatures:

       1.USB interface 5V/2A, Power display window show.

       2.Single phase, single output DC power supply

       3.Constant voltage and constant current operation (C.C and C.V. Automatic conversion)

       4.both current and voltage can be adjusted from 0 to rated value

       5.4LED digital display

       6.Intelligent temperature control fan to help power supply cooling fast

 APplications:

1. Charge batteries, PCB board manufacturing industry

2. LED products, motors and DC fans test,

3. Electrofacing, electrolyzation, electronic components aging

4. Laboratory, Electronic equipment, Automatic Test Equipment

5. All other occasions need to use DC Power Supply
