Brand Name: | MTKY |
---|---|
color: | White |
Theory: | Inductance Capacitance Resistance |
Resolution: | 0.01 |

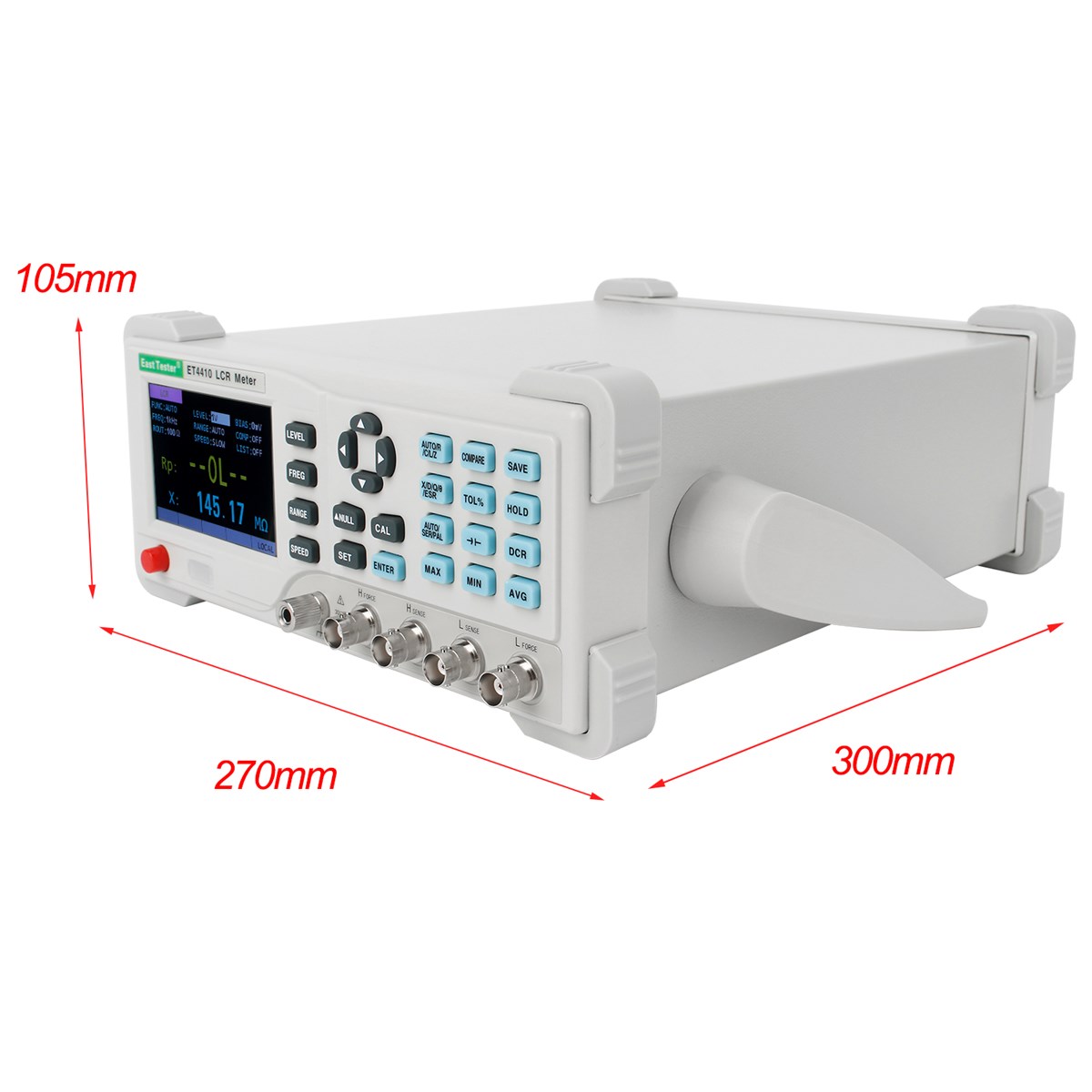

Size: | 105*270*300mm |
Model Number: | ET4410 |
Place of Origin: | China (Mainland) |
Quick Details

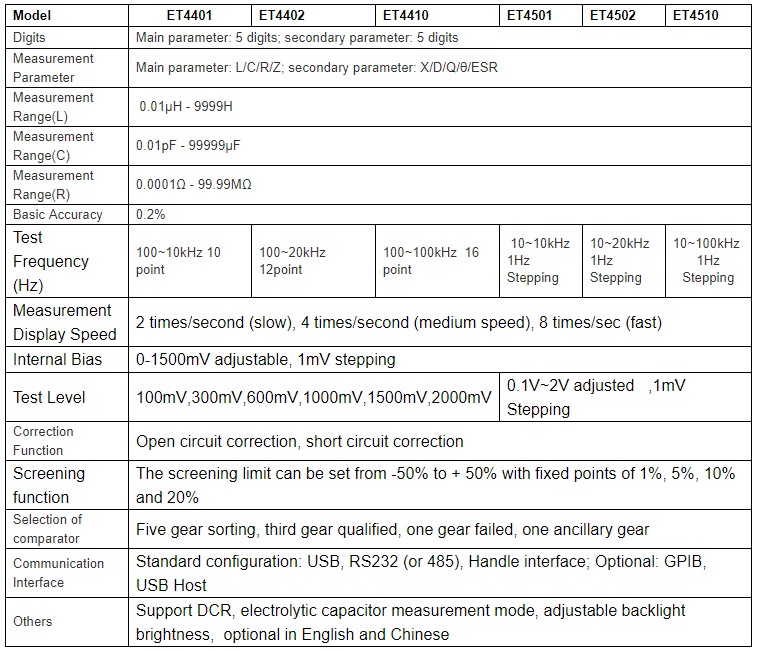

Specifications
10-100kHz Electric Bridge Resistance Impedance Capacitance Inductance Measure Digital Lcr Meter
Measurement frequency up to 100kHz
Test level 100 ~ 2000mV
Support the measurement of DC
Resistance and electrolytic capacitor
Internal bias voltage output (1mV-1500mV)
Automatic identification of
Component measurement
3.5-inch TFT display, 5 and a half bits display
USB, RS232 communication interface,
Handle sorting
Data recording function (maximum and
Minimum values, average value)
Support SCPI communication protocol
Provide system settings, which can configure
Language, buzzer, screen brightness,
Etc accordingto the needs of users.
Basic accuracy 0.2%
Manual and automatic range
Be equipped with open circuit and
Short circuit correction
Comparator has sorting and alarm function
Provide a variety of test ports
