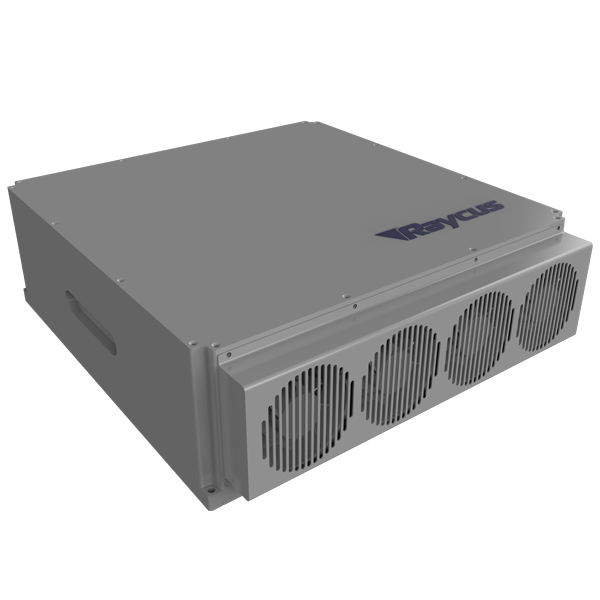

RFL-P100M

the brand-new short-pulse fiber laser launched by Raycus has a variety of pulse width options, including high average power (20-200W), high-peak power (≤15kW) and 2-500ns variety of pulse width, adjustable repetition frequencies of 1-2000kHz, available first pulse, cw mode Customizable, online modifiable pulse width and other characteristics. It is ideal for industrial applications in the field of solar photovoltaic, thin film cutting, sheet material cutting, welding, surface cleaning of materials, fine marking and material deepening, etc.

Customer service hotline: 027-81338818 to 8137

Online consultation +



Characteristics of

Technical characteristics

Uniform Control Interface Wide Modulation Frequency Range Variety of Pulse width Customize Pulse Width Available first pulse High Beam Quality Air Cooling System

Optical Properties

Nominal output power: (W): 100Central wavelength: (nm): 1064Repetition frequency Range(kHz): 20-1000Output power stability: <5%

Output characteristics

Output Beam Diameter(mm): 6.5±1M2:<1.6Polarization state: randomPulse Width Range(ns):10-350(Customizable)Max.Single Pulse Energy(mJ):1Delivery Cable length (m): 3(Customizable)

Electronic control characteristics

Input power (V DC ): 24Power adjustment range (%): 0-100

Other characteristics

Dimensions (mm ): 360*123*390(handle included)Cooling method: Air-cooled Working temperature (℃ ): 0-40

Application of 100W MOPA Fiber Laser RFL-P100M

Film Cutting Anodic Aluminum Etching Colorful Marking Precision Marking Precision Cleaning Surface Heat Texturing Treatment
