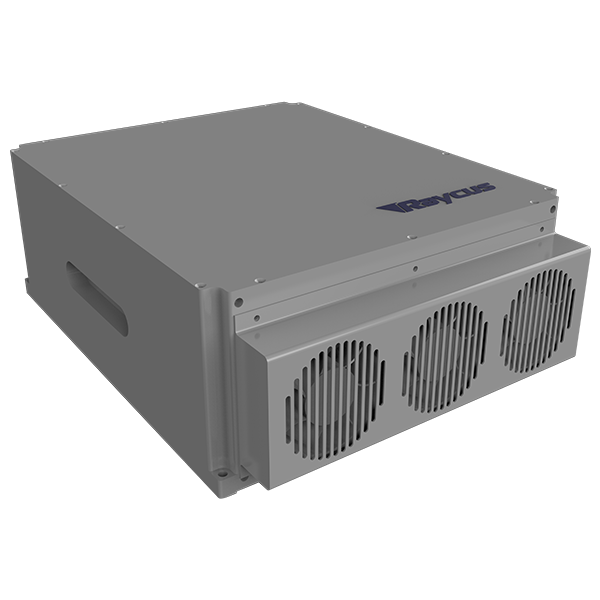

RFL-P20QE

the 20-100W Q-Switched Pulse Fiber Laser Series developed by Raycus is the industrial marking and micromachining laser. this series pulse laser has high peak power, high single-pulse energy and optional spot diameter and can be widely applied in the fields, such as marking, precision processing, graphic engraving of non-metal, gold, silver, copper and aluminum with altitude stress resistance, stainless materials without altitude stress resistance. Its marking process features lower cost and more stable performance compared with traditional laser.

Customer service hotline: 027-81338818 to 8137



Characteristics of,

Technical characteristics

Highly stable laser output High single-pulse energy High marking efficiency Short pulse setup time High reliability Maintenance-free operation

Optical Properties

Average output power: (W): 20Central wavelength: (nm): 1064Repetition frequency: (kHz): 10-50Output power stability: <3%

Output characteristics

Output Beam Diameter(mm): 7±1M2:<1.5Polarization state: randomPulse Width Range(ns):110-140Max.Single Pulse Energy(mJ):0.67Delivery Cable length (m): 3(Customizable)

Electronic control characteristics

Input power (V DC ): 24Power adjustment range (%): 10-100

Other characteristics

Dimensions (mm ): 260*120*340(handle included)Cooling method: Air-cooled Working temperature (℃ ): 0-40

Application of 20W Q-Switched Pulse Fiber Laser RFL-P20QE

Rust Removal Oil Cleaning Mold Surface Treatment Paint Stripping Welding Surface Pre-treatment Portrait Stone Surface Treatment
