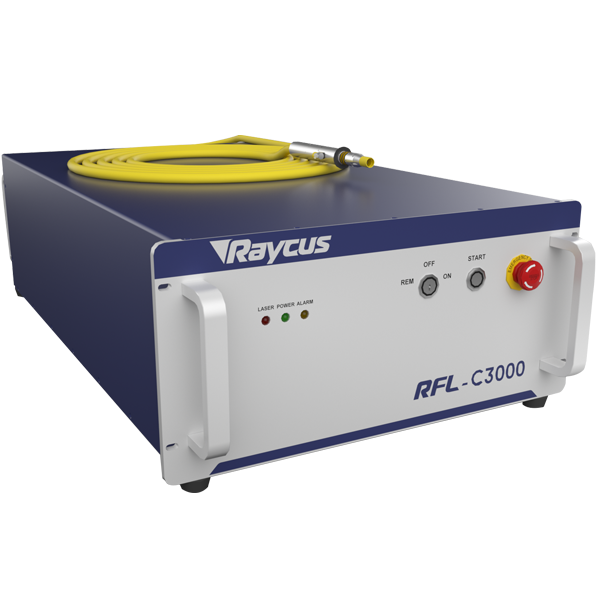

RFL-C3000

It has the advantages of high electro-optical conversion efficiency, good beam quality, high energy density, wide modulation frequency, strong reliability, long life, and maintenance-free operation. It can be widely used in welding, precision cutting, cladding, surface treatment, 3D printing and other fields. Its optical fiber output characteristics make it easier to integrate with robots into flexible manufacturing equipment to meet the needs of three-dimensional processing.

Customer service hotline: 027-81338818 to 8137



Characteristics of

Technical characteristics

High electro-optical conversion efficiency Output fiber length can be customized QBH/QD connector Maintenance-free operation Wide modulation frequency range Small size, easy to install

Optical properties

Average output power: (W): 3000Central wavelength: (nm): 1080±5Maximum modulation frequency: (kHz): 5Output power stability: ±1.5%Red laser: Yes

Output characteristics

Output connector: QBH (customizable)output fiber core diameter (μm): 50 (customizable)beam quality:5-7polarization state: random output fiber length (m): 20(customizable)

Electronic control characteristics

Input power (V AC ): 380±10%, Three Phase-four Wire Connect Control mode: RS232, AD power adjustment range (%): 10-100

Other characteristics

Dimensions (mm ): 900*447*521(handle included)Weight (kg): <80Cooling method: water cooling Working temperature (℃ ): 10-40

Application of 3000W Single Module CW Fiber Laser RFL-C3000

Precision Cutting Metal Welding Sheet Metal Piercing Metal Carving Surface Treatment3D Printing/Rapid Prototyping
