| Brand Name: | MTKY |
|---|---|
| color: | White |
| Theory: | Inductance Capacitance Resistance |
| Resolution: | 0.01 |
| Size: | 105*270*300mm |
| Model Number: | ET4510 |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

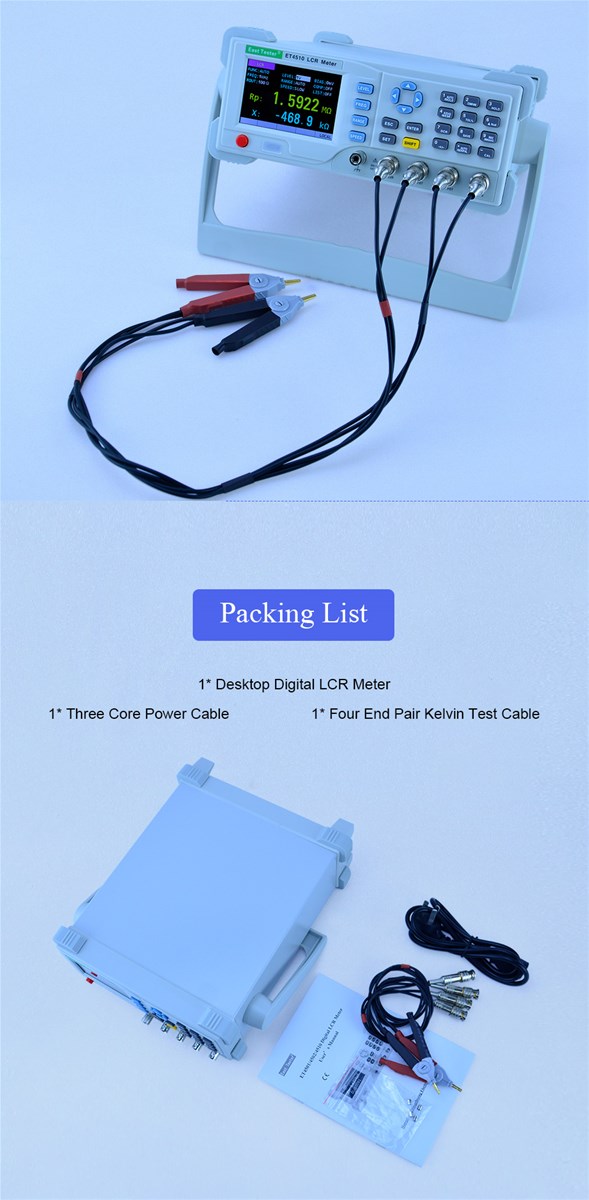

1Mhz Lcr Benchtop Digital Bridge Desktop Lcr Tester Meter Capacitance Resistance Impedance Inductance Measure

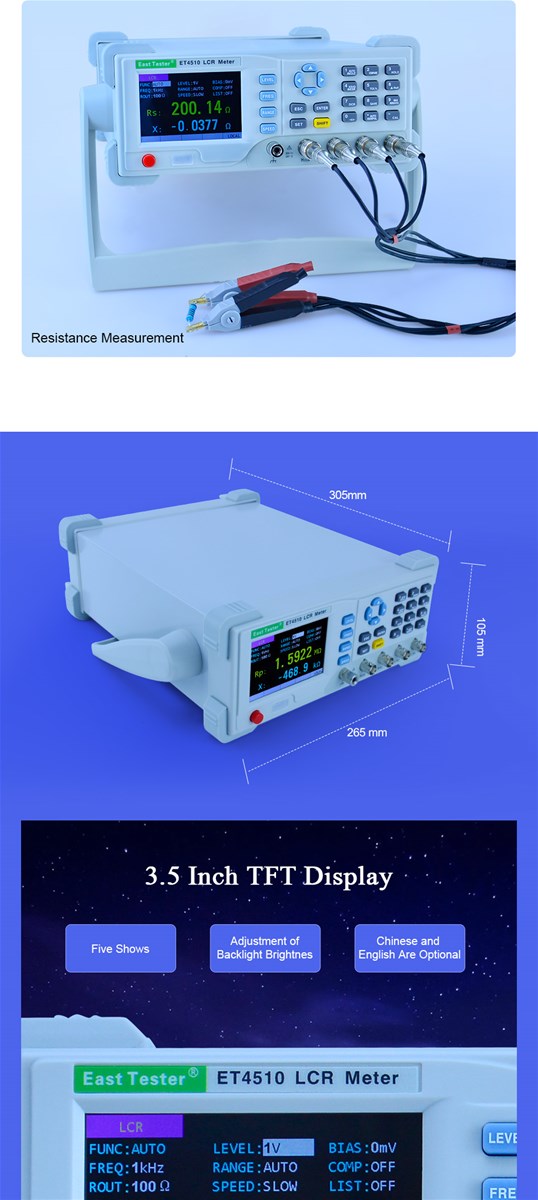

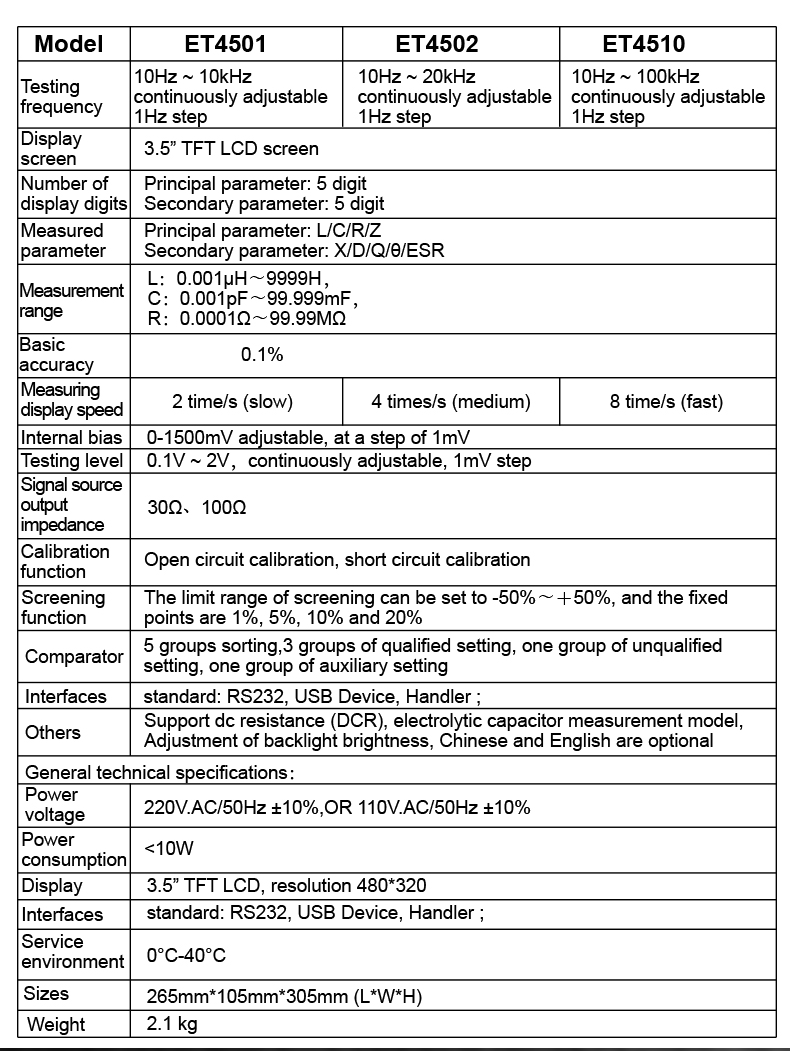

ET4510:10~100KHz Continuously adjustable, A step of 1 Hz Display screen:3.5" TFT LCD screen Number of display digits:Principal parameter: 5 digit Secondary parameter: 5 digit Measured parameter:Principal parameter: L/C/R/Z Secondary parameter: X/D/Q/θ/ESR Measurement range: L: 0.001H9999H, C: 0.001pF99.999mF, R: 0.0001Ω99.99MΩ Basic accuracy: 0.2% Measuring display speed:2 time/s (slow), 4 times/s (medium), 8 time/s (fast) Internal bias:0-1500mV adjustable, at a step of 1mV. Testing level:Six fixed level(0.1V, 0.3V, 0.6V, 1V, 1.5V, 2V) 0.1~2V adjustable, at a step of 1mV. Signal source output impedance:30Ω, 100Ω Calibration function:Open circuit calibration, short circuit calibration Screening function:the limit range of screening can be set to -50%50%, and the fixed points are 1%, 5%, 10% and 20%. Comparator:5 groups sorting,3 groups of qualified setting, one group of unqualified setting, one group of auxiliary setting Interfaces:standard: RS232(or 485), USB Device, Handler; Others:Support DC resistance (DCR), electrolytic capacitor measurement model,Adjustment of backlight brightness, Chinese and English are optional General technical specifications 1.Power voltage: ±10%,OR ±10% 2.Power consumption: <10W 3.Display: 3.5" TFT LCD, resolution 480*320 4.Interfaces: standard: RS232, USB Device, Handler; 5.Service environment: 0°C-40°C 6.Sizes: 265mm*105mm*305mm (L*W*H) 7.Weight: 3.5 kg
