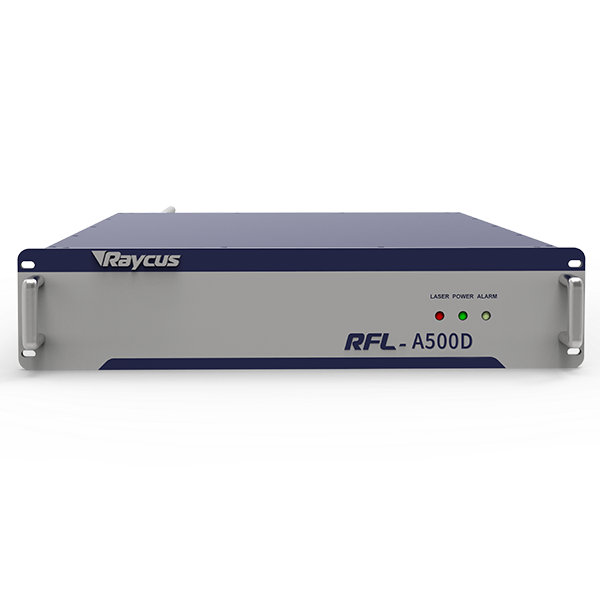

RFL-A500D

Medium powered fiber delivered direct diode laser is mainly used for heat conduction welding with low material thickness. with heat conduction welding, the laser melts the sheets along the intended joint. the melts of the joint partners merge together and then cool off to the actual welding seam. Conduction welding is similar to spot welding but allows the laser beam to move after the melt pool is produced. Laser heat conduction welding can be realized more quickly and lower material distortion than usual welding methods. Additionally, smooth and pore-free welding seams are created that do not need any post-processing.

Customer service hotline: 027-81338818 to 8137

Online consultation +



Characteristics of 500W Medium Powered Fiber Delivered

Technical characteristics

Application Market: laser Soldering and laser beam-transmission welding plastic

Optical Properties

Output power: (W): 500Operation Mode:CW/Modulate Power Adjusting Range(%):10-100/Central Wavelength(nm):915±10(Customizable)Output power un-stability: <3%Modulation Frequency(Hz):50-5kRed light indicated power(mW):0.25-1

Output characteristics

Terminal Type:QBHFiber core(μm):300/400Beam Divergence(rad):0.22Delivery Cable Length:5

Electronic control characteristics

Operation Voltage(V AC): Single Phase 220VAC±10%,50/60Hz ACControl Method:AD

Other characteristics

Dimensions(mm) width*height*depth:440*104*508(Handle included)Cooling method: Air-cooled

Application of 500W Medium Powered Fiber Delivered Direct Diode Lasers RFL-A500D

3C electricity Optical communication Micro-electricity Camera Mold Home appliances car lighting medical packaging



If you want to know more information about, please contact us.
